200W GaN FET Power Supply

200W GaN FET Power Supply

200W GaN FET Power Supply

Product ID: ATS200TS-AXXX

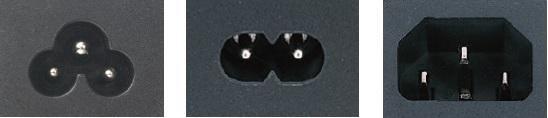

XXX = O/P Voltage

A : C8


Download Catalogue Download Now !

Features:

2.5X Smaller !!

* High Power Density: 12.5W/inch³
* 250% higher than normal 200W AC adapter (5.3W/inch³)
* Gallium Nitride Based Design
* 100-240VAC Universal Input
* With 250KHz Switching Frequency
* Compact Power Stage Design: L150 x W54 x H33mm
* Efficiency 95% (Typical)
* Regulated Output with Low Ripple Noise
* Modified and Custom Designs Available
* IEC/EN/UL 62368-1 & 60950-1
* 1 Year Warranty





Green Mode
CEC, DoE Level VI, Energy Star, ErP Stage 2, CoC Tier 2, NRCan & GEMS Level VI
No Load Power Consumption Less Than 0.15W
Model O/P Voltage O/P Current Watt
ATS200TS-A120 12.0V 15.00A 180W
ATS200TS-A150 15.0V 12.00A 180W
ATS200TS-A180 18.0V 11.10A 200W
ATS200TS-A190 19.0V 10.50A 200W
ATS200TS-A200 20.0V 10.00A 200W
ATS200TS-A240 24.0V   8.30A 200W
ATS200TS-A480 48.0V   4.17A 200W
ATS200TS-A560 56.0V   3.58A 200W
Input
Voltage 100-240 VAC
Line Frequency 50-60Hz
Current 2.4A Max.
Protection Internal Primary Current Fuse
Configuration IEC60320 / C8
Output
Load Regulation ± 5% (Typical)
Ripple & Noise 1% Vp-p Max. for Output Voltage @ Full Load
Transient Response 0.5mS for 50% Load Change Typical
Hold-up Time 10mS @ Full Load
Protection Short Circuit Protection/ Over Voltage Protection/ Over Current
Protection/Over Temperature Protection
DC Cord UL2095 / UL2464 / 16AWG / 18AWG
Ferrite Core Yes
Safety Approvals
 CB / UL / cUL / FCC / GS / CE / PSE / BSMI
Electrical
Topology LLC
Dielectric Withstand 3000 VAC Primary – Secondary
Leakage Current 0.25mA @ 2 Pin
Efficiency DoE Level VI, Energy Star, ErP Stage 2, CoC Tier 2, NRCan & GEMS Level VI Certified
EMC Standards EN55032
EN61000-3-2,3
EN55024
MTBF 300,000 Calculated Hours at 25°C, by Telcordia SR-332
Environmental
Operaturing Temperature 0 to +40°C
Storage Temperature -20 to +80°C
Relative Humidity Operating: 20 to 80% RH
Storage: 10 to 90% RH
Cooling Natural Convection Cooling
Mechanical
Case Dimension L 150 x W 54 x H 33 (mm)
Weight 500g (Ref.)



Order Information:
  • Minimum Order: Negotiable
  • OEM/ODM Product, Branded Product, Buyer's Label Offered
