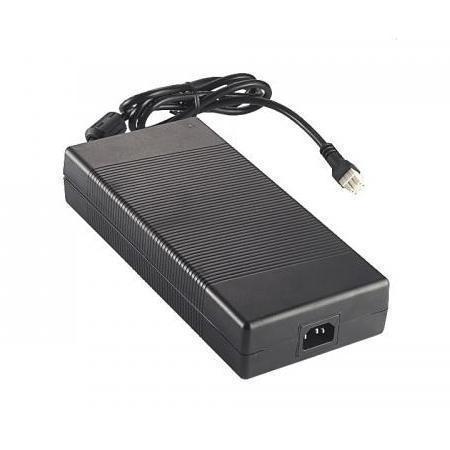

300 Watt Series - Desktop Type

300 Watt Series - Desktop Type 300 Watt Series - Desktop Type

Product ID: ATS300T-PXXX

XXX = O/P Voltage

P : C14


Download Catalogue Download Now !

Features:

* IEC/EN/UL 62368-1 & 60950-1
* 100-240VAC Universal Input
* Single Output to 300W
* Regulated Output with Low Ripple Noise
* Safety Agency Requirements and EMI/EMS Certified
* Private Label Marking Available
* Modified and Custom Designs Available
* 1 Year Warranty

Green Mode
DoE Level VI
No Load Power Consumption Less Than 0.5W



Model O/P Voltage O/P Current Watt
ATS300T-P120 12.0V 24.00A 288W
ATM300T-P120 12.0V 25.00A 300W
ATS300T-P190 19.0V 15.75A 300W
ATS300T-P240 24.0V 12.50A 300W
ATS300T-P480 48.0V   6.25A 300W
ATS300T-P560 56.0V   5.36A 300W
Input
Voltage 100-240 VAC
Line Frequency 50-60Hz
Current 3.9A Max.
Protection Internal Primary Current Fuse

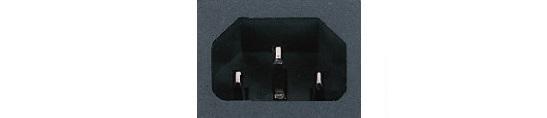

Configuration IEC60320 / C14
Output
Load Regulation ± 5% (Typical)
Ripple & Noise 1% Vp-p Max. for Output Voltage @ Full Load
Transient Response 0.5mS for 50% Load Change Typical
Hold-up Time 10mS @ Full Load
Protection Short Circuit Protection/ Over Voltage Protection/ Over Current
Protection/Over Temperature Protection
Ferrite Core YES
Safety Approvals
 CB / UL / cUL / FCC / GS / CE / PSE / BSMI / CCC
Electrical
Topology LLC
Dielectric Withstand 3000 VAC Primary – Secondary
Leakage Current 3.5mA @ 3 Pin
Efficiency DoE Level VI
EMC Standards EN55032
EN61000-3-2,3
EN55024
MTBF 300,000 Calculated Hours at 25°C, by Telcordia SR-332
Environmental
Operaturing Temperature 0 to +40°C
Storage Temperature -20 to +80°C
Relative Humidity Operating: 20 to 80% RH
Storage: 10 to 90% RH
Cooling Natural Convection Cooling
Mechanical
Case Dimension L 254 x W 116 x H 47 (mm)
Weight 1600g (Ref.)
Order Information:
  • Minimum Order: Negotiable
  • OEM/ODM Product, Branded Product, Buyer's Label Offered
  • FOB: HK
