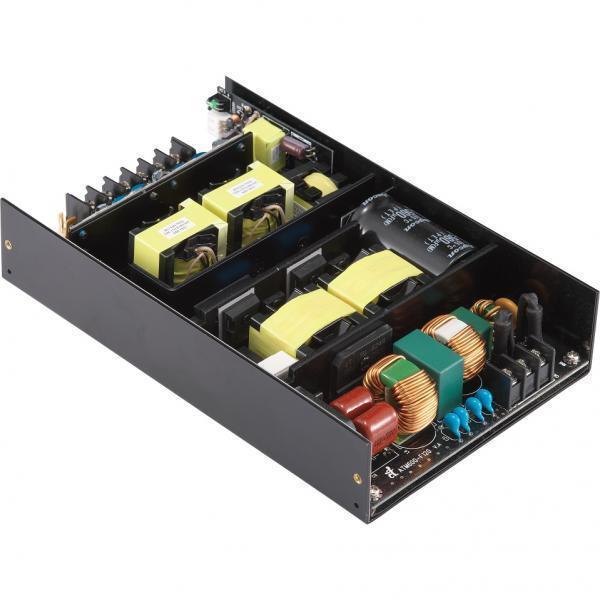

I.T.E. / Medical Open Frame Dual Output - 612 Watt Series

I.T.E. / Medical Open Frame Dual Output - 612 Watt Series
商品番号: ATM600-FXXX

XXX = O/P Voltage


Download Catalogue Download Now !
機能:

* IEC/EN/ANSI/AAMI ES 60601-1 (ED 3.1)
* Means of Protection: 2 X MOPP
* Touch Current: < 100µA
* Meet IEC/UL 60950-1
* 100-240VAC Universal Input
* Standby 5V / 1A
* On & Off Remote Control
* Efficiency up to 95%
* Regulated Output with Low Ripple Noise
* Modified and Custom Design Available
* 2 Years Warranty





Model O/P Voltage O/P Current Standby O/P For Fan Watt
ATM600-F120 12.0V 50.0A 5V / 1A 12V /0.6A 612W
ATM600-F240 24.0V 25.0A 5V / 1A 12V /0.6A 612W
ATM600-F360 36.0V 16.6A 5V / 1A 12V /0.6A 612W
ATM600-F480 48.0V 12.5A 5V / 1A 12V /0.6A 612W
Input
Voltage 100-240 VAC
Line Frequency 50-60Hz
Current 7.0A - 2.7A
Protection Internal Primary Current Fuse
Output
Load Regulation ± 5% (Typocal)
Ripple & Noise 1% Vp-p Max. for Output Voltage @ Full Load
Transient Response 0.5mS for 50% Load Change Typical
Hold-up Time 10mS min. @ Full Load
Protection Short Circuit Protection/ Over Voltage Protection/ Over Current Protection/ Over Temperature Protection
Safety Approvals
CB / UL / cUL / FCC / CE
Electrical
Topology LLC
Dielectric Withstand 4000 VAC Primary - Secondary
MTBF 300,000 Calculated Hours at 25°C, by Telcordia SR-332
Environmental
Operaturing Temperature -20 to +50°C
Storage Temperature -20 to +80°C RH
Relative Humidity Operating: 20 to 80% RH
Storage: 10 to 90% RH
Cooling Natural Convection Cooling
Mechanical
Dimension L 203 x W 127 x H 40 (mm)
8" x 5" x 1.6" (inch)
Weight 1100g (Ref.)
注文情報:
  • 最低発注量: Negotiable
  • OEM/ODM Product, Branded Product, Buyer's Label Offered
  • FOB（本船渡し）: HK
