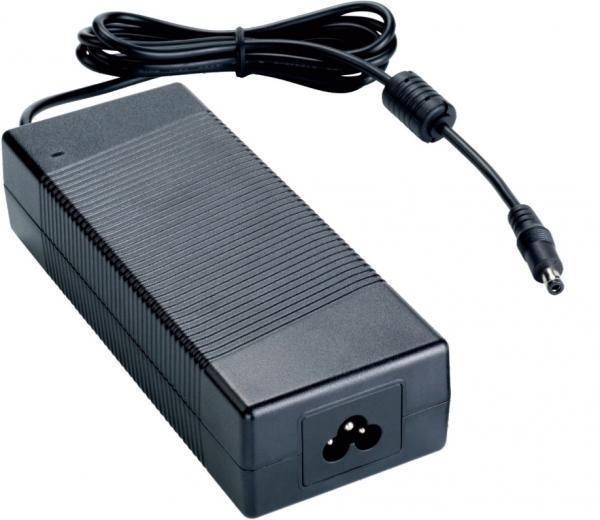

120 Watt Medical Series - Desktop Type

120 Watt Medical Series - Desktop Type 120 Watt Medical Series - Desktop Type

Product ID: ATM120T-□XXX

XXX = O/P Voltage

□ = P : C6 / C14
□ = A : C8 / C18


Download Catalogue Download Now !

* IEC/EN/ANSI/AAMI ES 60601-1 (ED 3.1)
* EMC: IEC60601-1-2:2014 (ED 4.0)
* IEC 60950-1 approval
* Means of Protection: 2 X MOPP
* Touch Current: < 100µA
* 100-240VAC Universal Input
* Single Output to 120W
* Regulated Output with Low Ripple Noise
* Safety Agency Requirements and EMI/EMS Certified
* Private Label Marking Available
* Modified and Custom Design Available
* 2 Year Warranty

Green Mode
Meet CEC, DoE Level VI, Energy Star, ErP Stage 2
No Load Power Consumption Less Than 0.21W


Model O/P Voltage O/P Current Watt
ATM120T-□120 12.0V   9.00A 108W
ATM120T-□150 15.0V   8.00A 120W
ATM120T-□180 18.0V   6.67A 120W
ATM120T-□190 19.0V   6.32A 120W
ATM120T-□200 20.0V   6.00A 120W
ATM120T-□240 24.0V   5.00A 120W
ATM120T-□480 48.0V   2.50A 120W
Voltage 100-240 VAC
Line Frequency 50-60Hz
Current 1.5A - 0.7 A
Protection Internal Primary Current Fuse, Inrush Limiting
Configuration IEC60320/ C6, C8, C14, C18
Load Regulation ± 5%
Ripple & Noise 1% Vp-p Max. for Output Voltage @Full Load
Transient Response 0.5ms for 50% Load Change Typical
Hold-up Time 10mS @ Full Load
Protection Short Circuit Protection/ Over Voltage Protection/ Over Current
Protection/ Over Temperature Protection
Ferrite Core Yes
Safety Approvals
 CB / UL / cUL / FCC / CE / T-mark / PSE
Topology Switching Flyback
Dielectric Withstand 4000 VAC Primary - Secondary
Touch Current < 100µA
Efficiency Meet DoE Level VI
EMC Standards EN55011
MTBF 300,000 Calculated Hours at 25°C, by Telcordia SR-332
Operaturing Temperature 0 to +40°C
Storage Temperature -20 to +80°C
Relative Humidity Operating: 20 to 80% RH
Storage: 10 to 90% RH
Cooling Natural Convection Cooling
Case Dimension L 168 x W 66 x H 39 (mm)
Weight 590g (Ref.)
Order Information:
  • Minimum Order: Negotiable
  • OEM/ODM Product, Branded Product, Buyer's Label Offered
  • FOB: HK
