Product

I.T.E. 120W GaN Series

I.T.E. 120W GaN Series I.T.E. 120W GaN Series

Product ID: ATS120TS-PXXX

XXX = O/P Voltage

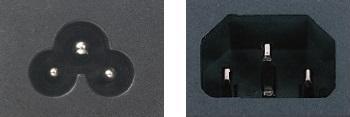

P : C6 / C14


Download Catalogue Download Now !
Features:

2X Smaller !!

* High Power Density: 9.1W/inch³
* 202% higher than traditional 120W AC adapter (4.5W/inch³)
* Gallium Nitride Based Design
* 100-240VAC Universal Input
* With 200KHz Switching Frequency
* Compact Power Stage Design
* Efficiency 94% (Typical)
* Regulated Output with Low Ripple Noise
* Modified and Custom Designs Available
* IEC/EN/UL 62368-1 & IEC 60950-1
* 1 Year Warranty

Green Mode
CEC, DoE Level VI, Energy Star, ErP Stage 2, CoC Tier 2, NRCan & GEMS Level VI
No Load Power Consumption Less Than 0.15W
Model O/P Voltage O/P Current Watt
ATS120TS-P120 12.0V  9.00A 108W
ATS120TS-P190 19.0V  6.30A 120W
ATS120TS-P200 20.0V  6.00A 120W
ATS120TS-P240 24.0V  5.00A 120W
ATS120TS-P480 48.0V  2.50A 120W
ATS120TS-P560 56.0V  2.14A 120W
Input
Voltage 100-240 VAC
Line Frequency 50-60Hz
Current 1.6A Max.
Protection Internal Primary Current Fuse
Configuration IEC60320 / C6, C14
Output
Load Regulation ± 5% (Typical)
Ripple & Noise 1% Vp-p Max. for Output Voltage @ Full Load
Transient Response 0.5mS for 50% Load Change Typical
Hold-up Time 10mS @ Full Load
Protection Short Circuit Protection/ Over Voltage Protection/ Over Current
Protection/Over Temperature Protection
DC Cord 18AWG / 16AWG / 14AWG
Ferrite Core Yes
Safety Approvals
 CB / UL / cUL / FCC / GS / CE / PSE / BSMI
Electrical
Topology LLC
Dielectric Withstand 3000 VAC Primary – Secondary
Leakage Current 3.5mA @ 3 Pin
Efficiency DoE Level VI, Energy Star, ErP Stage 2, CoC Tier 2, NRCan & GEMS Level VI Certified
EMC Standards EN55032
EN61000-3-2,3
EN55024
MTBF 300,000 Calculated Hours at 25°C, by Telcordia SR-332
Environmental
Operaturing Temperature -20 to +40°C
Storage Temperature -20 to +80°C
Relative Humidity Operating: 20 to 80% RH
Storage: 10 to 90% RH
Cooling Natural Convection Cooling
Mechanical
Case Dimension

L 132 x W 51 x H 32 (mm)

Weight 340g (Ref.)







Order Information:
  • Minimum Order: Negotiable
  • OEM/ODM Product, Branded Product, Buyer's Label Offered
