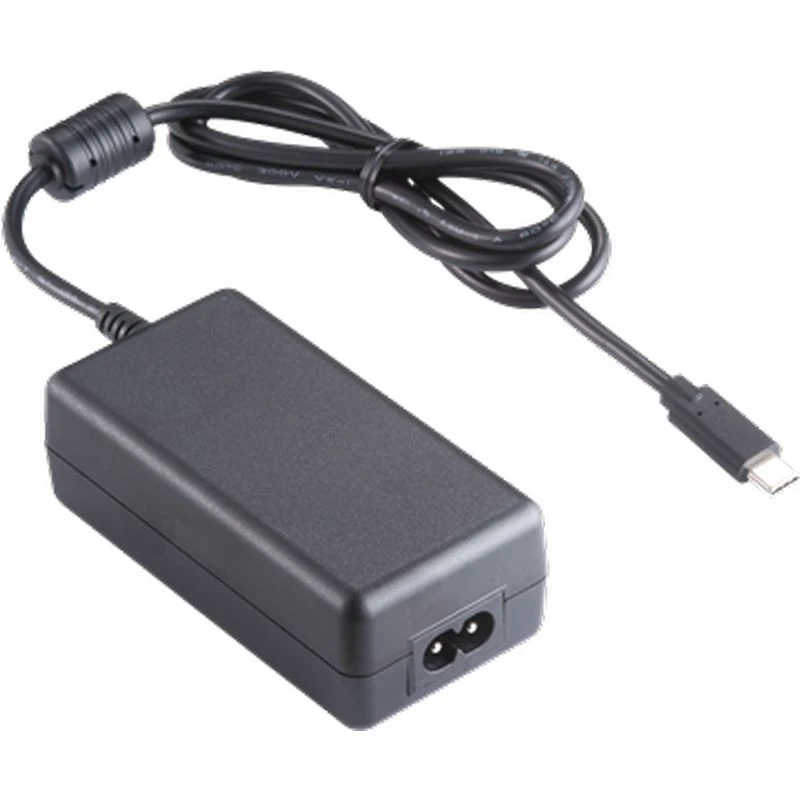

45W USB-C Power Supply
Information
APD045T-A200
A : C8
Features:
* IEC/EN/UL 62368-1 3rd Edition
* 100-240VAC Universal Input
* 45W USB-C power supply with Power Delivery 2.0
* System control through CC1
* Regulated Output With Low Ripple Noise
* Safety Agency Requirements and EMI/EMS Certified
* Modified and Custom Design Available
* 1 Year Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt |
|---|---|---|---|
| APD045T-A200□ | 5.0V | 3.00A | 15W |
| 9.0V | 3.00A | 27W | |
| 12.0V | 3.00A | 36W | |
| 15.0V | 3.00A | 45W | |
| 20.0V | 2.25A | 45W |
Specifications Details
| Category | Specifications |
|---|---|
| Input | |
| Voltage | 100-240 VAC |
| Line Frequency | 50-60Hz |
| Current | 1.2A Max. |
| Protection | Internal Primary Current Fuse |
| Configuration | IEC60320/ C8 |
| Output | |
| Load Regulation | ± 5% (Typical) |
| Ripple & Noise | ≤ 2% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS with 50% Load Change |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥ 10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection |
| Safety Approvals | |
| CB / UL / cUL / FCC / GS / CE / PSE / BSMI / CCC / RCM / LPS | |
| Electrical | |
| Topology | Switching Flyback |
| Dielectric Withstand | 3,000VAC Primary - Secondary |
| Leakage Current | < 0.25mA |
| Efficiency | Meet DoE Level VI, ErP Stage2 |
| EMC Standards | EN55032, EN61000-3-2,3, EN55035 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH, Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical | |
| Case Dimension | L99 x W33 x H50 (mm) |
| Weight | 190g (Ref.) |
Overview
45W USB‑C Power Supply — APD045T‑A200 Reliable Desktop Adapter
The APD045T‑A200 is a professional‑grade 45w usb c power supply designed for dependable power in desktops, workstations, and charging stations. This unit uses USB Power Delivery (PD) 2.0 to automatically adjust output to match what your USB‑C device needs, making it ideal for laptops, tablets, phones, and other PD‑enabled electronics.
Universal Power Input for Global Use
This desktop charger supports a wide 100–240 VAC input range, so it works in most countries without extra converters. That makes it a flexible choice for office, home, or travel setups.
Smart and Stable Charging Performance
As a 45W USB-C power supply, it delivers multiple output levels (5 V, 9 V, 12 V, 15 V and 20 V) that match common PD profiles. With regulated output and low ripple noise, the adapter helps protect devices from power spikes and delivers smooth charging performance every time.
Certified Safety and Protection
Safety and compliance are built in. This adapter meets IEC/EN/UL 62368‑1 Third Edition safety standards and is certified by major agencies. It includes protections against over current, over voltage, and short circuit conditions, helping safeguard both the charger and connected devices during use.
Practical for Everyday Use
The desktop form factor with USB‑C output makes this 45 W adapter easy to place on a desk or charging station where multiple devices might need power. It’s a straightforward, reliable source of USB‑C power for PD‑capable equipment.
Ideal Use Cases
- Charging USB‑C laptops and ultrabooks
- Tablet and smartphone fast charging
- Powering PD‑enabled accessories
- A dependable desktop charging solution
With certified safety, automatic PD negotiation, and broad device support, the APD045T‑A200 gives users a dependable 45w usb c power supply option for everyday and professional use.
