APD065T-A200
A : C8
Features:
* IEC/EN/UL 62368-1 3rd Edition
* 100-240VAC Universal Input
* Power Delivery 2.0
* System control through CC1
* Regulated Output With Low Ripple Noise
* Safety Agency Requirements and EMI/EMS Certified
* Modified and Custom Design Available
* 1 Year Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt |
|---|---|---|---|
| APD065T-A200□ | 5.0V | 3.00A | 15W |
| 9.0V | 3.00A | 27W | |
| 12.0V | 3.00A | 36W | |
| 15.0V | 3.00A | 45W | |
| 19.0V | 3.43A | 65W | |
| 20.0V | 3.25A | 65W |
Specifications Details
| Category | Specifications |
|---|---|
| Input | |
| Voltage | 100-240 VAC |
| Line Frequency | 50-60Hz |
| Current | 1.6A Max. |
| Protection | Internal Primary Current Fuse |
| Configuration | IEC60320/ C8 |
| Output | |
| Load Regulation | ± 5% (Typical) |
| Ripple & Noise | ≤ 2% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS with 50% Load Change |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥ 10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection |
| Safety Approvals | |
| CB / UL / cUL / FCC / GS / CE / PSE / BSMI / LPS | |
| Electrical | |
| Topology | Switching Flyback |
| Dielectric Withstand | 3,000VAC Primary - Secondary |
| Leakage Current | < 0.25mA |
| Efficiency | Meet DoE Level VI, ErP Stage2 |
| EMC Standards | EN55032, EN61000-3-2,3, EN55035 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH, Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical | |
| Case Dimension | L119 x W60 x H36 (mm) |
| Weight | 285g (Ref.) |
Overview

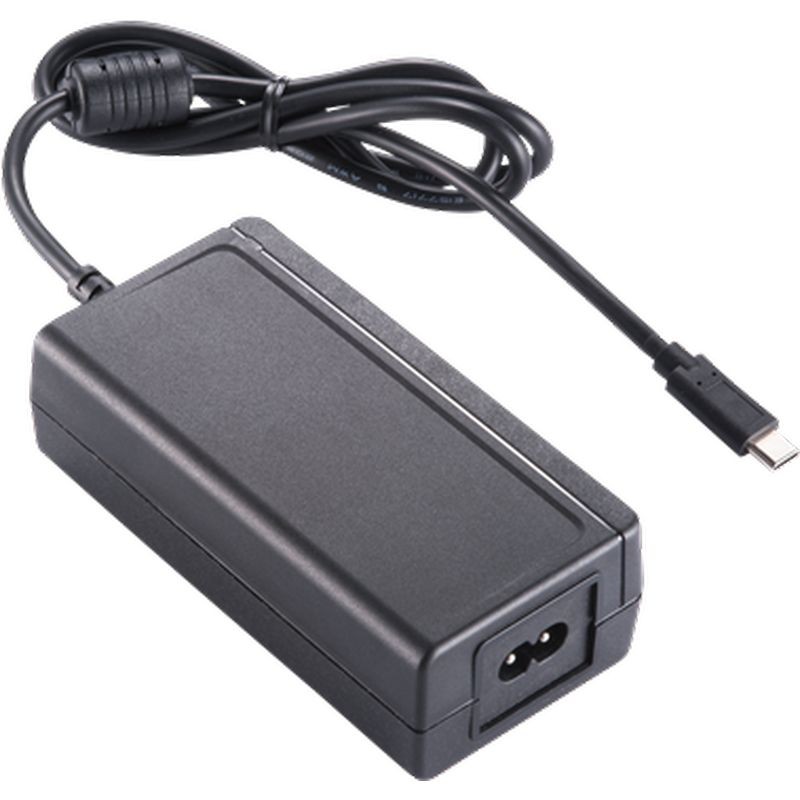

APD065T‑A200 — USB‑C PD Charger Manufacturer’s 65W Desktop Power Adapter
The APD065T‑A200 is a high‑performance USB‑C Power Delivery adapter designed and offered by a reputable USB‑C PD charger manufacturer for reliable charging of modern USB‑C devices. This unit provides efficient power delivery up to 65 W and works well in desktops, office setups, and device power stations where a stable power source is key.
Smart, Universal Power Delivery
This charger supports a 100–240 VAC universal input, so it can be used in many countries without converters. It uses Power Delivery 2.0 to automatically negotiate the right voltage with connected devices, delivering up to 65 W of USB‑C power. This makes it suitable for powering laptops, tablets, phones, and other USB‑C PD‑enabled gear.
Stable Output with Low Ripple
Engineered with regulated output and low ripple noise, this USB‑C PD charger ensures consistent, smooth power that minimizes strain on sensitive electronics. It supports common PD voltages including 5 V, 9 V, 12 V, 15 V and 19–20 V profiles, making it compatible with a wide range of devices.
Certified Safety and Compliance
Safety is built into this adapter. It meets international safety standards such as IEC/EN/UL 62368‑1 Third Edition and carries certifications like CB, UL/cUL, FCC, CE, PSE, BSMI and LPS. These approvals show that the unit has undergone rigorous testing for electrical safety and electromagnetic compatibility.
Built‑In Protections
To protect both the charger and connected devices, this unit includes internal safeguards against over‑current, over‑voltage and short‑circuit conditions. These protections help ensure durable and reliable daily use.
Why This Matters
As a USB‑C PD charger manufacturer product, the APD065T‑A200 combines trusted safety certifications, stable power delivery and broad device support. Its desktop form factor makes it easy to integrate into workstations or multi‑device power setups, offering an efficient, dependable 65 W USB‑C charging option for both professional and everyday use.
