High Reliability Power Supply
Information
ATM024T-WXXX□
XXX = O/P Voltage

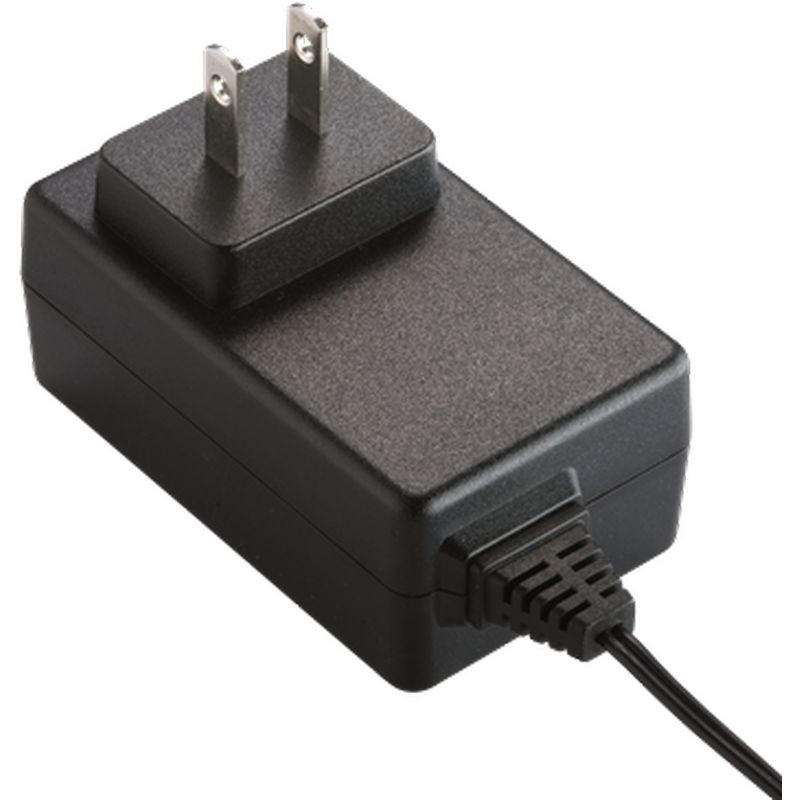

□ = U : US Plug
□ = E : EU Plug
□ = B : UK Plug

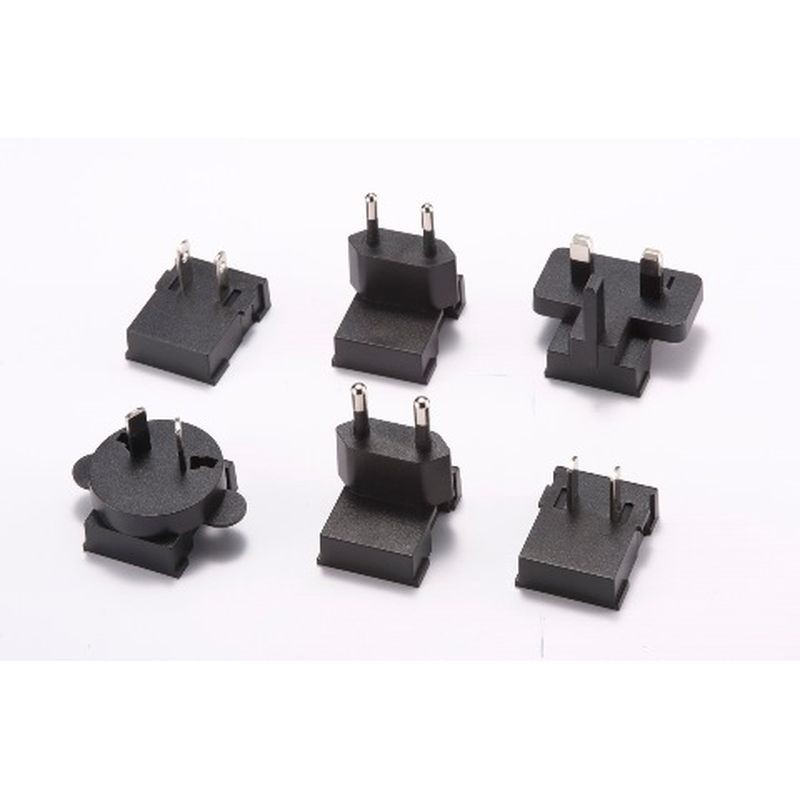

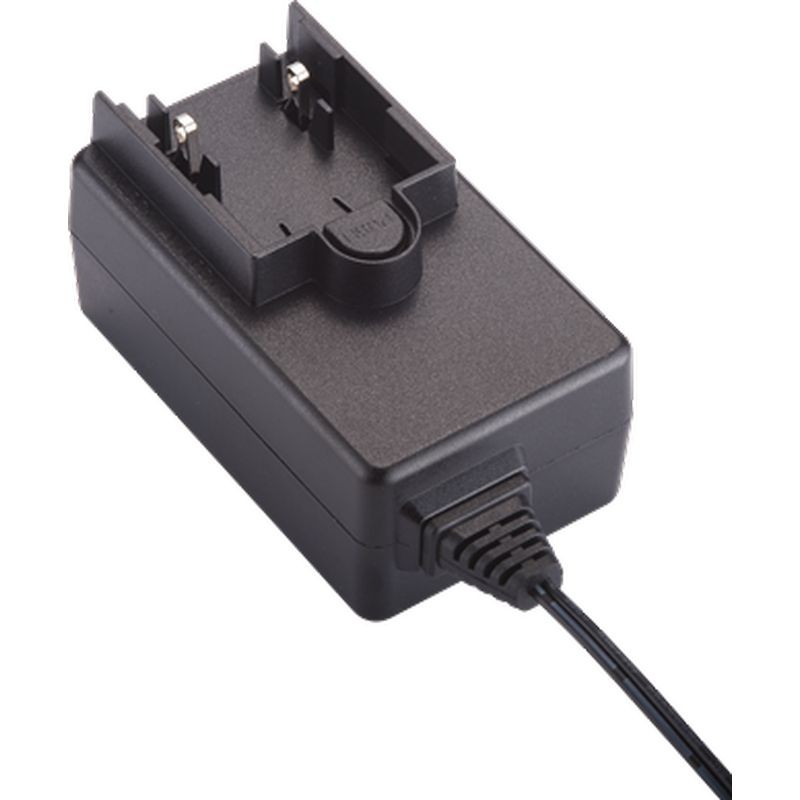

□ = V : Changeable Plug
Features:
* IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.2)
* EMC : IEC60601-1-2 (Edition 4.1)
* Means of Protection: 2 X MOPP
* 100-240VAC Universal Input
* Regulated Output With Low Ripple Noise (high reliability power supply)
* Safety Agency Requirements and EMI/EMS Certified
* Modified and Custom Design Available
* 2 Years Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt |
|---|---|---|---|
| ATM024T-W050□ | 5.0V | 4.0A | 20.0W |
| ATM024T-W090□ | 9.0V | 2.5A | 22.5W |
| ATM024T-W120□ | 12.0V | 2.0A | 24.0W |
| ATM024T-W150□ | 15.0V | 1.6A | 24.0W |
| ATM024T-W240□ | 24.0V | 1.0A | 24.0W |
| ATM024T-W480□ | 48.0V | 0.5A | 24.0W |
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240 VAC |
| Line Frequency | 50-60Hz |
| Current | 0.58A - 0.32A |
| Protection | Internal Primary Current Fuse |
| Configuration | U for US Plug, E for EU Plug, B for UK Plug, V for Changeable Plug |
| Output | |
| Load Regulation | ± 5% (Typical) |
| Ripple & Noise | ≤2% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5ms with 50% Load Change |
| Start-up Time | < 3,000ms |
| Hold-up Time | ≥ 10ms @ Full Load |
| Rise Time | < 50ms |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection |
| Safety Approvals | |
| For USA | CB / UL / cUL / FCC / PSE / BSMI |
| For Europe | CB / T-mark / CE |
| For UK | CB / UKCA |
| Electrical | |
| Topology | Switching Flyback |
| Dielectric Withstand | 4,000VAC Primary - Secondary |
| Touch Current (Patient) | < 100µA |
| Leakage Current | < 100µA |
| Efficiency | Meet DoE Level VI, ErP Stage 2, CoC Tier 2 |
| EMC Standards | EN55011, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH, Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical | |
| Case Dimension | U - L 80.2 x W 46 x H 57.5 (mm) E - L 80.2 x W 46 x H 68.7 (mm) B - L 80.2 x W 49.6 x H 62.7 (mm) V - L 80.2 x W 46 x H 40.5 (mm) |
| Weight | U: 140g / E: 145g B: 148g / V: 140g (Ref.) |
Overview
ATM024T‑W Series 24W Medical Wall-Mount Power Supply
The ATM024T‑W series is a 24W wall-mount medical AC/DC power supply engineered for medical and clinical devices that require a high reliability power supply with stable and safe operation. Designed to meet IEC/EN/ANSI/AAMI ES60601-1 medical standards, this series ensures patient and equipment protection while providing continuous, regulated power. Its compact wall-mount design saves space and fits seamlessly into clinical, laboratory, or hospital environments.
With universal AC input and configurable DC connectors, the ATM024T‑W series is suitable for global deployment, offering healthcare manufacturers a flexible and dependable solution for low- to medium-power medical devices.
Reliable Performance for Sensitive Equipment
The ATM024T‑W delivers a regulated DC output that supports sensitive medical electronics with minimal ripple and noise. Integrated protections—including overvoltage, overcurrent, short-circuit safeguards, and 2 MOPP isolation—help ensure patient safety and reliable device operation.
Its energy-efficient design reduces standby power consumption, making it ideal for devices that require continuous power, such as patient monitors, diagnostic instruments, and portable clinical equipment.
Integration and Connectivity
This wall-mount medical power supply supports standard DC connectors with flexible cable configurations to match device requirements. The external design keeps the adapter accessible for maintenance or replacement, minimizing downtime without interfering with other equipment. Its professional, low-profile housing fits seamlessly into medical environments while maintaining strict safety compliance.
Applications and Use Cases
The ATM024T‑W series is designed for:
- Patient monitoring systems
- Clinical diagnostic devices
- Portable medical instruments
- Laboratory or hospital electronics requiring a high reliability power supply
These applications benefit from its consistent regulated output, advanced isolation, and low electrical noise, ensuring precise device operation in demanding medical environments.
Support and Warranty
The ATM024T‑W comes with a one-year warranty and technical support for device integration and troubleshooting. Customization options, such as DC connector type, cable length, and plug configuration, are available to meet specific project needs, ensuring full compliance with medical standards.
FAQ
Q1: What makes ATM024T‑W suitable for medical devices?
A1: It complies with IEC/EN/ANSI/AAMI ES60601-1 standards and provides 2 MOPP isolation, ensuring both patient safety and reliable device operation.
Q2: Can this power supply be used internationally?
A2: Yes. With universal AC input (100–240 VAC) and configurable plug options, it can be deployed globally.
Q3: What types of devices are compatible with ATM024T‑W?
A3: Ideal for low- to medium-power medical devices such as patient monitors, diagnostic instruments, portable clinical equipment, and laboratory electronics.
Q4: How does this power supply protect equipment?
A4: Built-in protections include overvoltage, overcurrent, short-circuit safeguards, and 2 MOPP isolation, providing maximum safety for both the device and patients.
Q5: Can the DC connector or cable length be customized?
A5: Yes. The series supports modified DC connectors, cable lengths, and plug configurations to fit project-specific requirements.
