ATN100A3-W200□

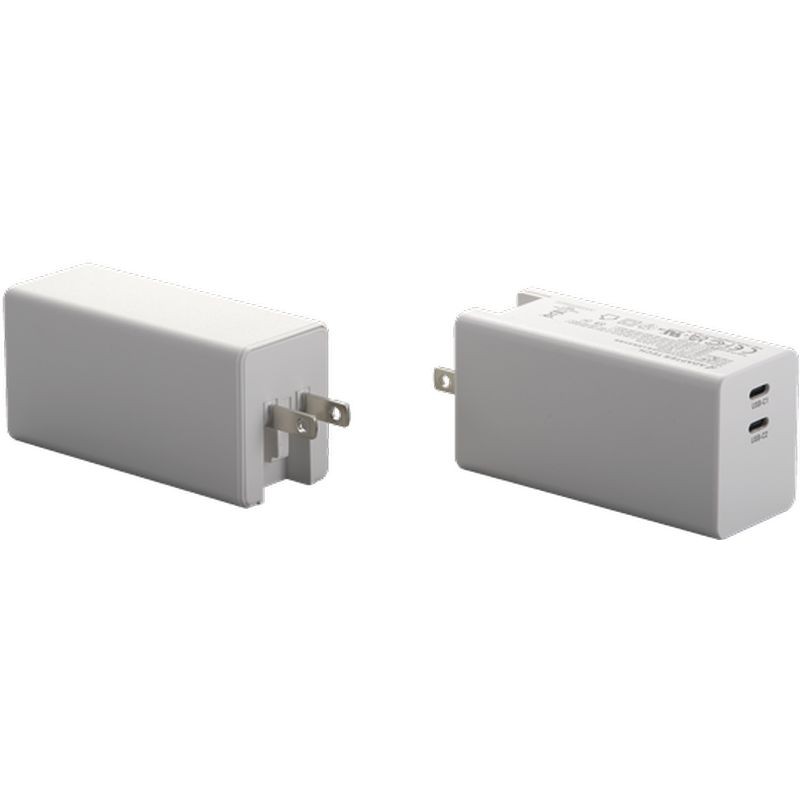

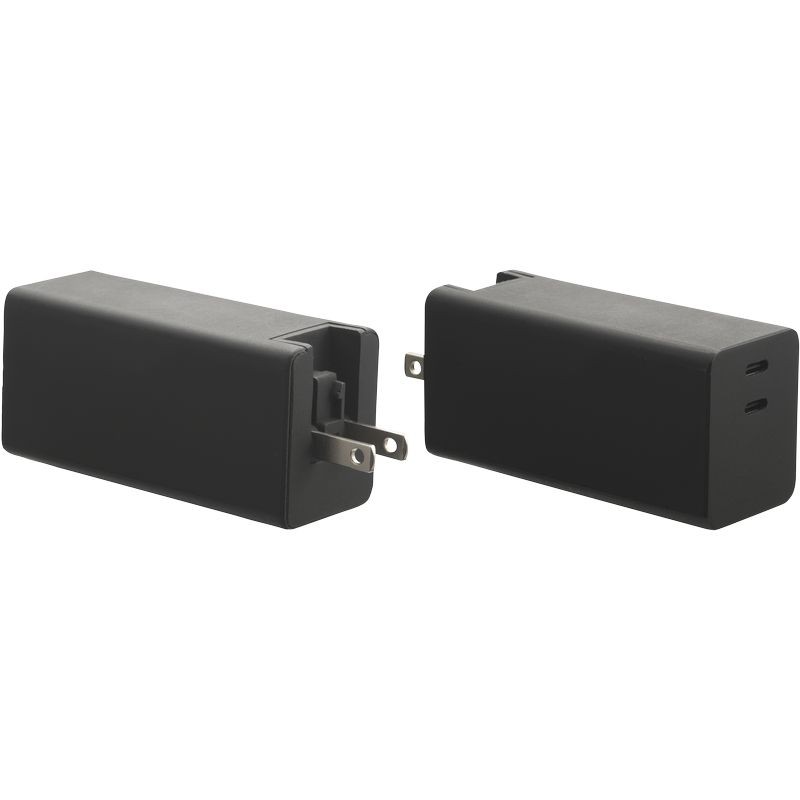

□ = U : Foldable US Plug / Available with EU/UK Changeable Plug

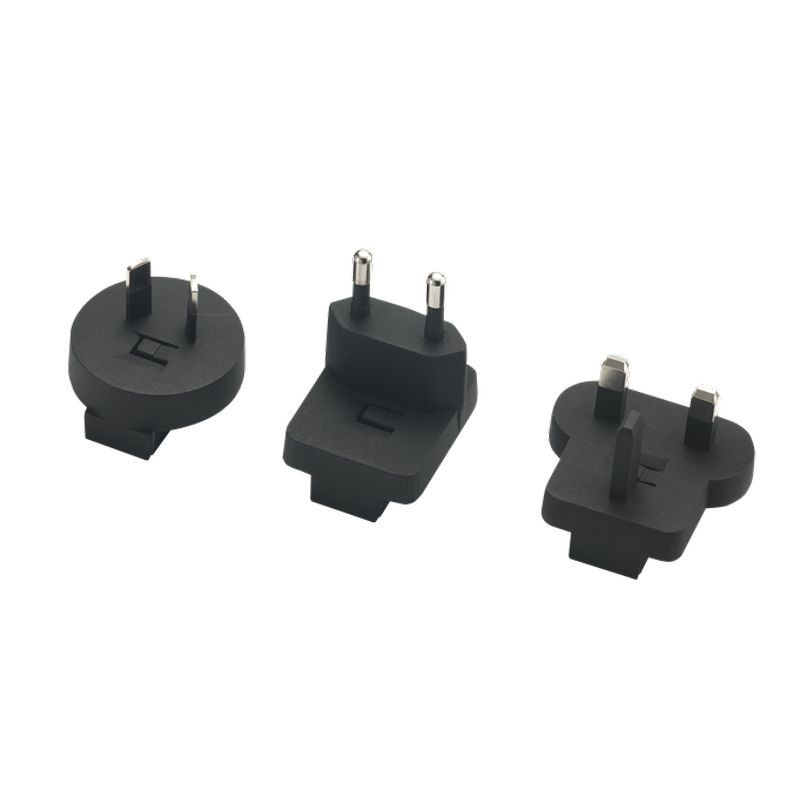

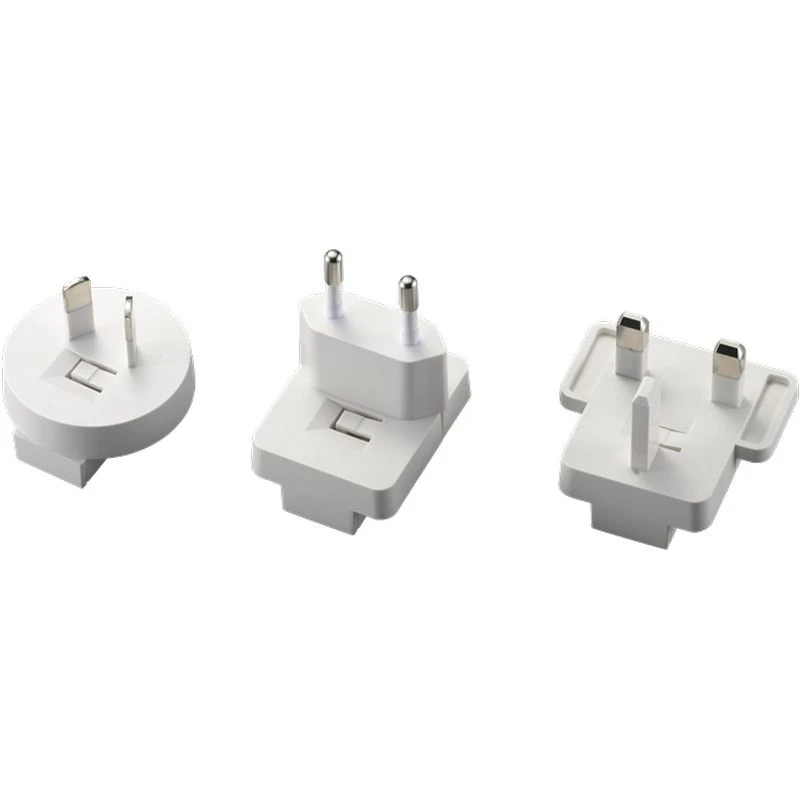

V : Unfoldable Plug with US/EU/UK/AU Changeable Plug
Features:
* IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.2)
* EMC : IEC60601-1-2 (Edition 4.1)
* IEC/EN/UL 62368-1 3rd Edition
* Means of Protection : 2 X MOPP
* 100-240VAC Universal Input
* P.D. 3.0 / QC 4.0+ / QC 4.0
* Regulated Output With Low Ripple Noise
* Safety Agency Requirements and EMI/EMS Certified
* Modified and Custom Design Available
* 2 Years Warranty

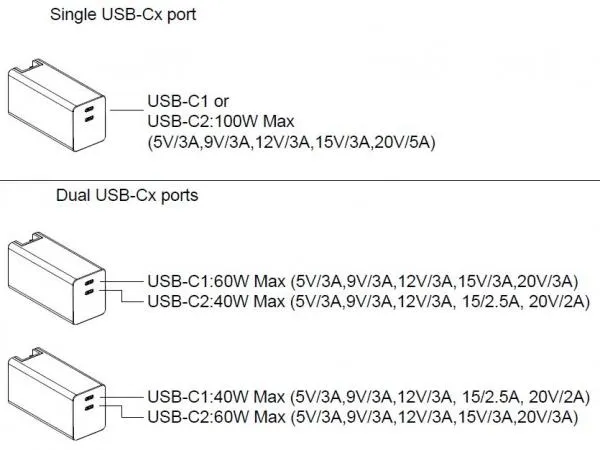

Output Specifications
| Model | O/P Voltage | O/P Current | Watt |
|---|---|---|---|
| ATN100A3-W200□ | 5.0V | 3.0A | 15W |
| 9.0V | 3.0A | 27W | |
| 12.0V | 3.0A | 36W | |
| 15.0V | 3.0A | 45W | |
| 20.0V | 5.0A | 100W |
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240 VAC |
| Line Frequency | 50-60Hz |
| Current | 1.3A-0.5A |
| Protection | Internal Primary Current Fuse |
| Configuration | U for Foldable US Plug, V for Changeable Plug |
| Output | |
| Load Regulation | ± 5% (Typical) |
| Ripple & Noise | ≤100m Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS with 50% Load Change |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection |
| Safety Approvals | |
| For USA | CB / UL / cUL / FCC / PSE / BSMI |
| For Europe | CB / T-mark / CE / GS |
| For UK | CB / UKCA |
| Electrical | |
| Topology | LLC |
| Dielectric Withstand | 4,000VAC Primary - Secondary |
| Touch Current (Patient) Leakage Current | < 100µA |
| Efficiency | Meet DoE Level VI, ErP Stage2, CoC Tier 2 |
| EMC Standards | EN55011, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH, Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical | |
| Case Dimension | L44 x W35 x H87 (mm) |
| Weight | 230g (Ref.) |
Overview
ATN100A3‑W200 USB‑C Wall Charger — Trusted USB C Wall Charger Supplier for Modern Devices
The ATN100A3‑W200 is a high‑performance usb c wall charger supplier option designed for fast and efficient charging of laptops, tablets, phones, and other PD‑enabled devices. This wall mount adapter uses modern GaN technology for better power delivery while staying compact, making it a great choice for both everyday users and professional product designers.
Universal Compatibility and Smart Power Delivery
This adapter works with universal AC input from 100 VAC to 240 VAC, so it can be used around the world without extra converters. It supports USB Power Delivery 3.0 and Quick Charge 4.0+ standards, which automatically adjust the output to match the power needs of your device and deliver up to 100 W of charging power.
Certified Safety and Reliable Performance
Engineered with safety in mind, the ATN100A3‑W200 meets strict international standards including IEC/EN/ANSI/AAMI ES60601‑1 (Edition 3.2) and IEC/EN/UL 62368‑1, and it carries multiple agency certifications. With dual protection barriers (2×MOPP) and low leakage current, this charger delivers dependable power for sensitive electronics.
Stable Output with Low Noise
Designed for stable output and low ripple noise, this USB‑C charger helps minimize power disturbances that can affect device performance. Its regulated output ensures consistent charging and reliable operation across a wide range of devices.
Compact and User‑Friendly Design
The wall mount design makes this charger both space‑saving and convenient to use at home, in the office, or while traveling. With options like foldable or changeable AC plugs, you can tailor it to different regional sockets as needed.
Ideal for Multiple Use Cases
- Charging USB‑C laptops and ultrabooks
- Fast charging tablets and smartphones
- Powering USB‑C accessories and peripherals
- A dependable wall charging solution for daily and professional use
As a usb c wall charger supplier, this model gives you a reliable, certified, and efficient USB‑C power option backed by strong performance and safety standards.
