65W USB-C
Information
ATN065A3-W200□

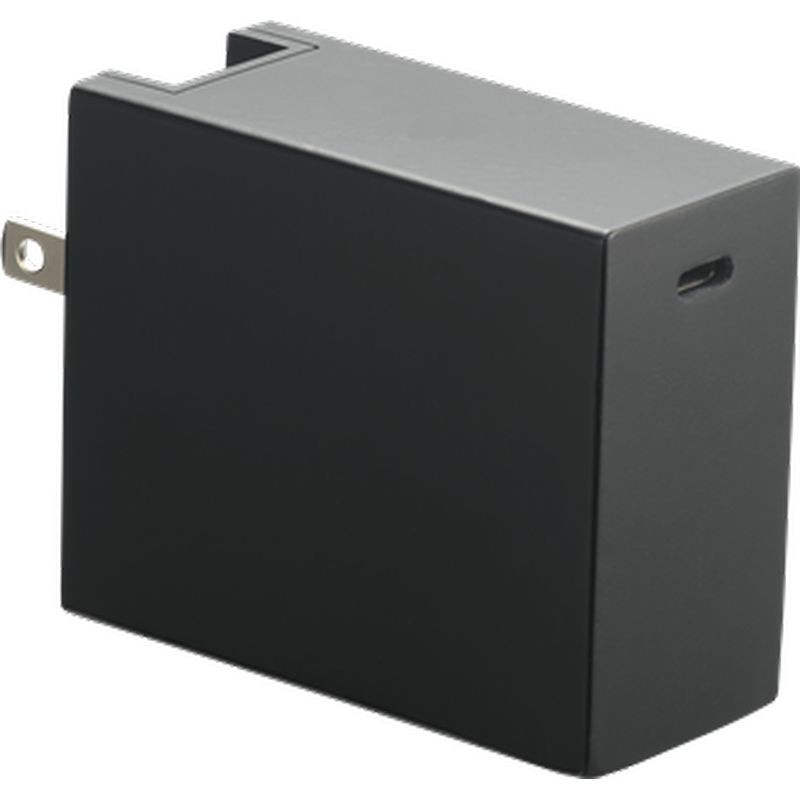

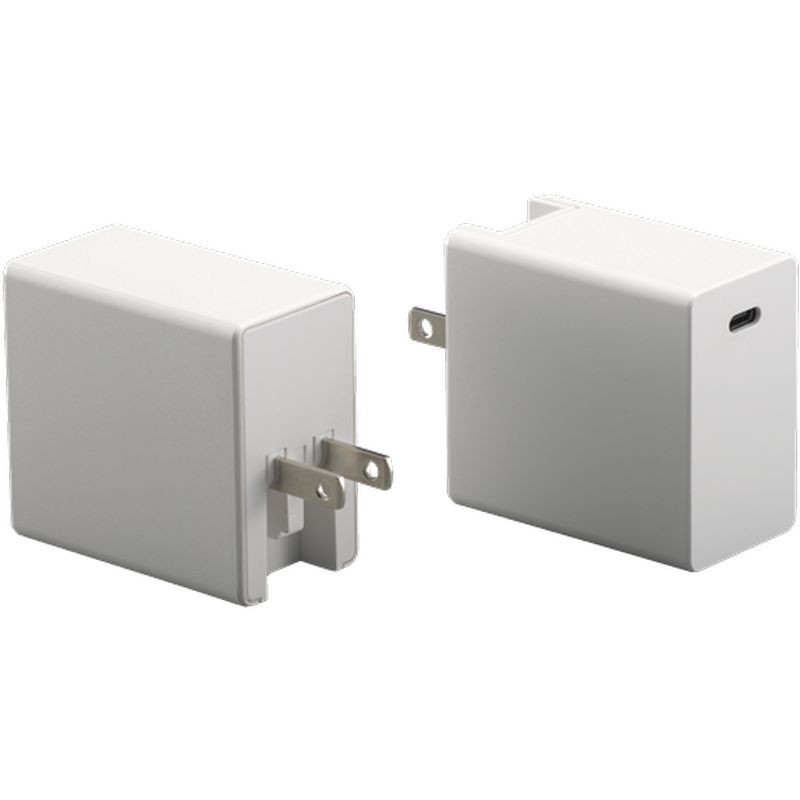

□ = U : Foldable US Plug / Available with EU/UK Changeable Plug

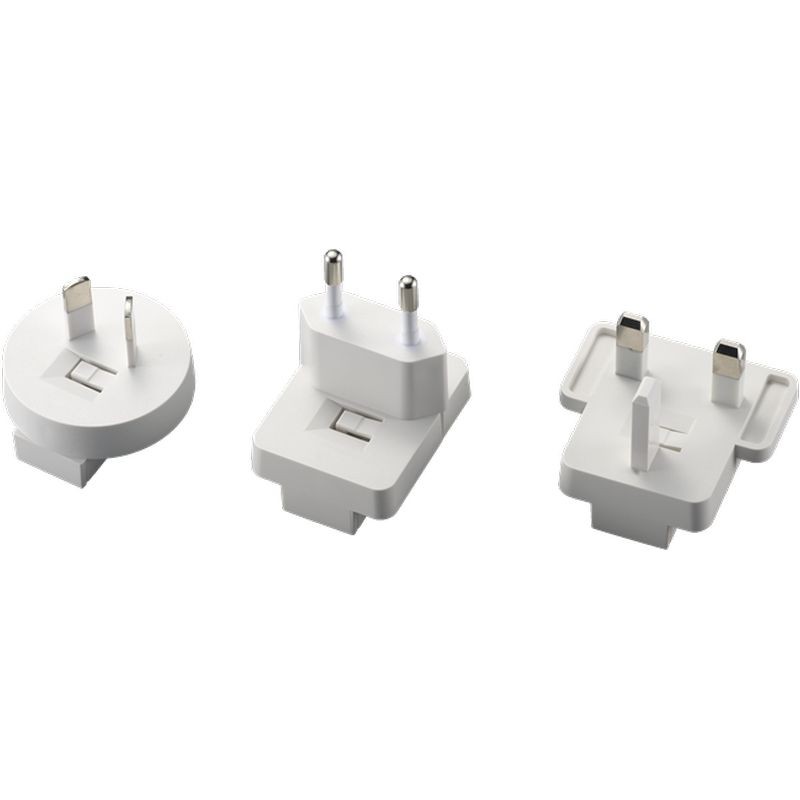

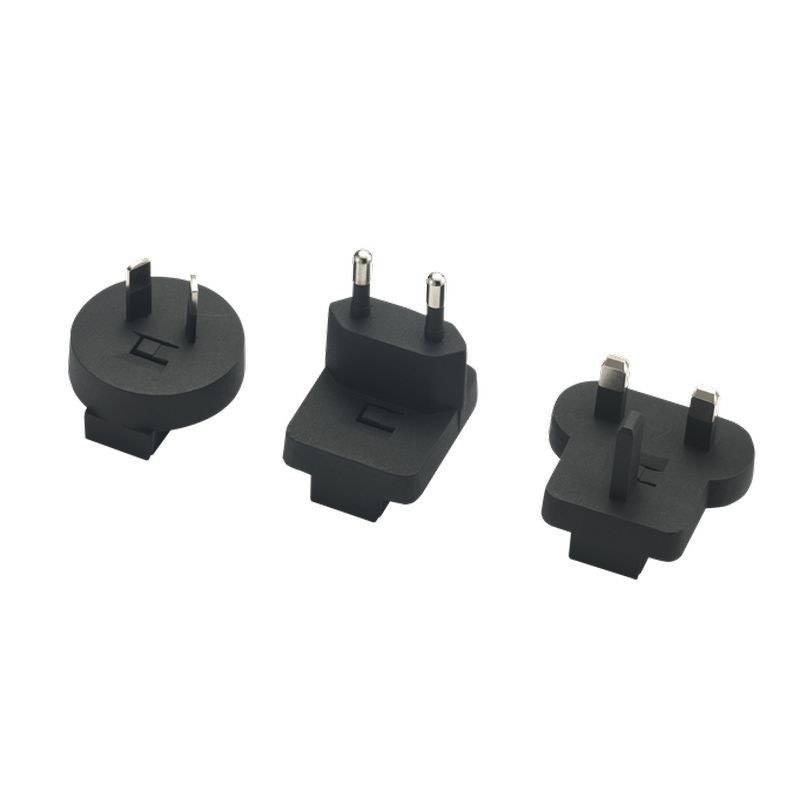

□ = V : Unfoldable Plug with US/EU/UK/AU Changeable Plug
Features:
* IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.2)
* EMC : IEC60601-1-2 (Edition 4.1)
* IEC/EN/UL 62368-1 3rd Edition
* Means of Protection : 2 X MOPP
* 100-240VAC Universal Input
* P.D. 3.0 / QC 4.0+ / QC 4.0
* Regulated Output With Low Ripple Noise
* Safety Agency Requirements and EMI/EMS Certified
* Modified and Custom Design Available
* 2 Years Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt |
|---|---|---|---|
| ATN065A3-W200□ | 5.0V | 3.00A | 15W |
| 9.0V | 3.00A | 27W | |
| 12.0V | 3.00A | 36W | |
| 15.0V | 3.00A | 45W | |
| 20.0V | 3.25A | 65W |
Specifications Details
| Category | Specifications |
|---|---|
| Input | |
| Voltage | 100-240 VAC |
| Line Frequency | 50-60Hz |
| Current | 1.6A-0.7A |
| Protection | Internal Primary Current Fuse |
| Configuration | U for Foldable US Plug, V for Changeable Plug |
| Output | |
| Load Regulation | ± 5% (Typical) |
| Ripple & Noise | ≤ 200m Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS with 50% Load Change |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection |
| Safety Approvals | |
| For USA | CB / UL / cUL / FCC / PSE / BSMI |
| For Europe | CB / T-mark / CE / GS |
| For UK | CB / UKCA |
| Electrical | |
| Topology | Switching Flyback |
| Dielectric Withstand | 4,000VAC Primary - Secondary |
| Touch Current (Patient) Leakage Current | < 100µA |
| Efficiency | Meet DoE Level VI, ErP Stage2, CoC Tier 2 |
| EMC Standards | EN55011, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH, Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical | |
| Case Dimension | L 53.5 x W 31.5 x H 58 (mm) |
| Weight | 130g (Ref.) |
Overview
ATN065A3‑W200 65W USB‑C Power Adapter — Reliable Charging for Modern Devices
The ATN065A3‑W200 is a professional‑grade 65W USB‑C power adapter designed to deliver efficient and stable power for today’s USB‑C devices. Whether you’re charging a laptop, tablet, smartphone, or other PD‑enabled gadget, this adapter gives consistent performance backed by robust certifications and safety features.
Universal Use and Fast Charging
This adapter supports a wide input range of 100‑240 VAC, so it works in most countries without needing extra converters. With USB Power Delivery 3.0 and Quick Charge 4.0+ compatibility, it adjusts output automatically to match what your device requests, delivering up to 65 W of power for faster and more efficient charging.
Stable Output and Low Noise
Designed with regulated output and low ripple noise, the ATN065A3‑W200 helps minimize power irregularities that can affect sensitive electronics. The stable 65W USB‑C output ensures smooth charging and steady operation across a range of devices.
Safety and Global Standards
Safety is a key focus with this adapter. It meets multiple international standards including IEC/EN/ANSI/AAMI ES60601‑1 (Edition 3.2), IEC/EN/UL 62368‑1, and EMC requirements, making it suitable for both I.T.E. and medical environments. Dual means of protection (2×MOPP) and low leakage current help protect both the charger and connected equipment.
Built‑In Protection Features
To protect against common power issues, the ATN065A3‑W200 includes internal safeguards such as short circuit, over‑current, and over‑voltage protections. These features help keep both the adapter and connected devices safe from unexpected electrical faults.
Practical Design for Everyday Use
This compact wall‑mount adapter comes with options like foldable or changeable plugs for different regions, making it a convenient choice for home, office, or travel use. Its 2‑year warranty adds extra peace of mind for long‑term reliability.
Ideal Use Scenarios
- Charging laptops and ultrabooks that support USB‑C PD
- Powering tablets and phones with fast charging needs
- Reliable power source for remote work or travel setups
- Everyday charging at desk or bedside
With certified performance, broad device compatibility, and stable power delivery, the ATN065A3‑W200 is a solid choice when you want dependable 65W USB‑C charging for modern electronics.
