I.T.E. Power Supply (5V)
Information
ATS005T-WXXX □
XXX = O/P Voltage

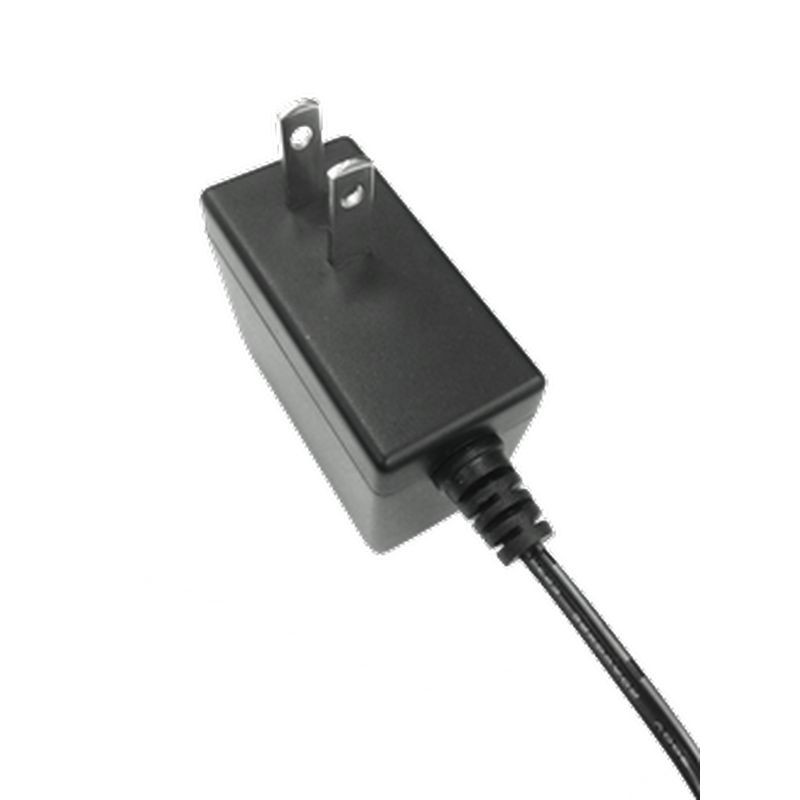

□ = U : US Plug

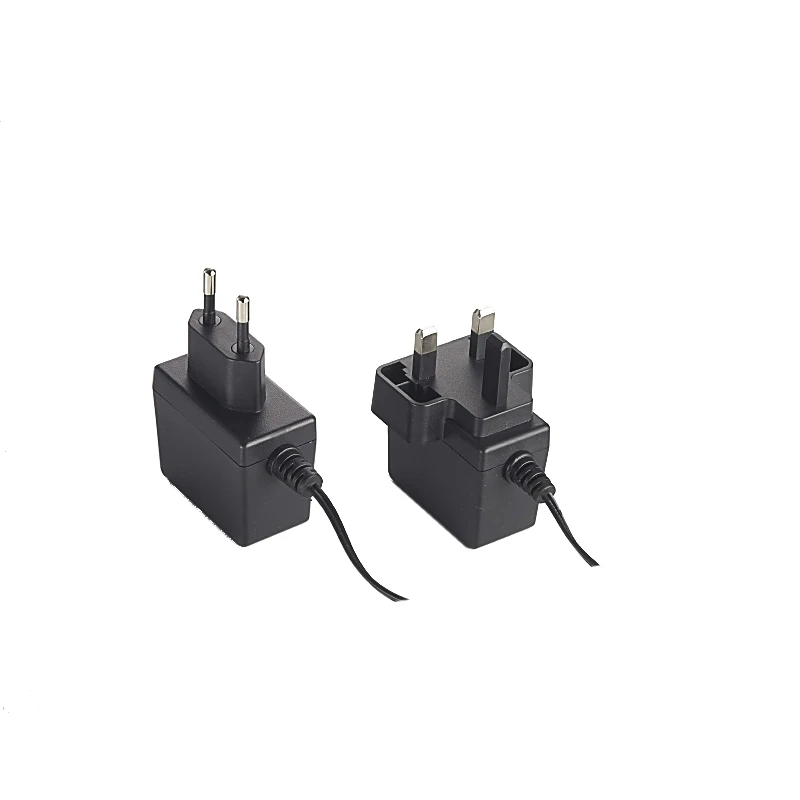

□ = E : EU Plug
□ = B : UK Plug
Features:
- IEC/EN/UL 62368-1 3rd Edition
- 100-240VAC Universal Input
- Regulated Output with Low Ripple Noise
- Safety Agency Requirements and EMI/EMS Certified
- Modified and Custom Design Available
- 1 Year Warranty
Model Specifications
| Model | O/P Voltage | O/P Current | Watt |
|---|---|---|---|
| ATS005T-W033□ | 3.3V | 1.50A | 4.95W |
| ATS005T-W050□ | 5.0V | 1.00A | 5.00W |
| ATS005T-W051□ | 5.0V | 1.50A | 7.50W |
| ATS005T-W060□ | 5.9V | 1.20A | 7.08W |
| ATS005T-W075□ | 7.5V | 1.00A | 7.50W |
| ATS005T-W090□ | 9.0V | 0.67A | 6.03W |
| ATS005T-W120□ | 12.0V | 0.60A | 7.20W |
| ATS005T-W150□ | 15.0V | 0.40A | 6.00W |
| ATS005T-W180□ | 18.0V | 0.33A | 5.94W |
| ATS005T-W240□ | 24.0V | 0.25A | 6.00W |
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240 VAC |
| Line Frequency | 50-60Hz |
| Current | 0.19A Max. |
| Protection | Internal Primary Current Fuse |
| Configuration | U for US Plug, E for EU Plug, B for UK Plug |
| Output | |
| Load Regulation | ±5% (Typical) |
| Ripple & Noise | ≤2% Vp-p @ Full Load |
| Protection | Short Circuit / Over Voltage / Over Current Protection |
| Safety Approvals | |
| For USA | CB / UL / cUL / FCC / PSE / BSMI / LPS |
| For Europe | CB / CE / GS / LPS |
| For UK | CB / UKCA / LPS |
| Environmental | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C |
| Cooling | Natural Convection Cooling |
Overview
ATS005T-W Series ITE Power Supply
The ATS005T-W series is a compact external ITE power supply designed for everyday electronic devices that need stable and dependable power. Its small form factor makes it easy to integrate into finished products or systems where space is limited, while the external design helps simplify installation and replacement.
This ITE power supply supports global use and is suitable for products intended for different markets. Multiple plug options are available, allowing the same product platform to be used across regions without redesigning the power section. This flexibility is especially useful for manufacturers developing devices for international distribution.
Designed for Practical Use
The ATS005T-W series focuses on consistent output and smooth operation, helping connected devices run steadily during daily use. Built-in protection functions help reduce the risk of damage caused by abnormal conditions, offering an added layer of safety for both the power adapter and the equipment it supports.
Its low standby power design also helps reduce unnecessary energy consumption when devices are idle, making it a practical choice for modern electronic products that remain connected for long periods.
Connection and Integration
This ITE power supply is commonly paired with standard DC output cables used in many electronic devices. Connector type and cable configuration can be adjusted to match different product designs, making it easier for system integrators and OEM customers to align the power adapter with their end product.
The compact housing and clean external appearance allow it to blend easily into consumer, commercial, or light industrial environments.
Common Applications
The ATS005T-W series ITE power supply is suitable for a wide range of low-power applications, including:
- Networking equipment and communication devices
- Embedded systems and control modules
- Sensors and monitoring equipment
- Smart devices and electronic accessories
These applications typically require a reliable external power source that operates quietly and consistently without drawing attention.
Support and Warranty
The ATS005T-W series includes a one-year warranty. Custom options such as plug type or output configuration are available to support specific project needs. Technical support is available to assist with product selection and integration.
