I.T.E. Power Supply (9V)
Information
ATS018T-WXXX□
XXX = O/P Voltage

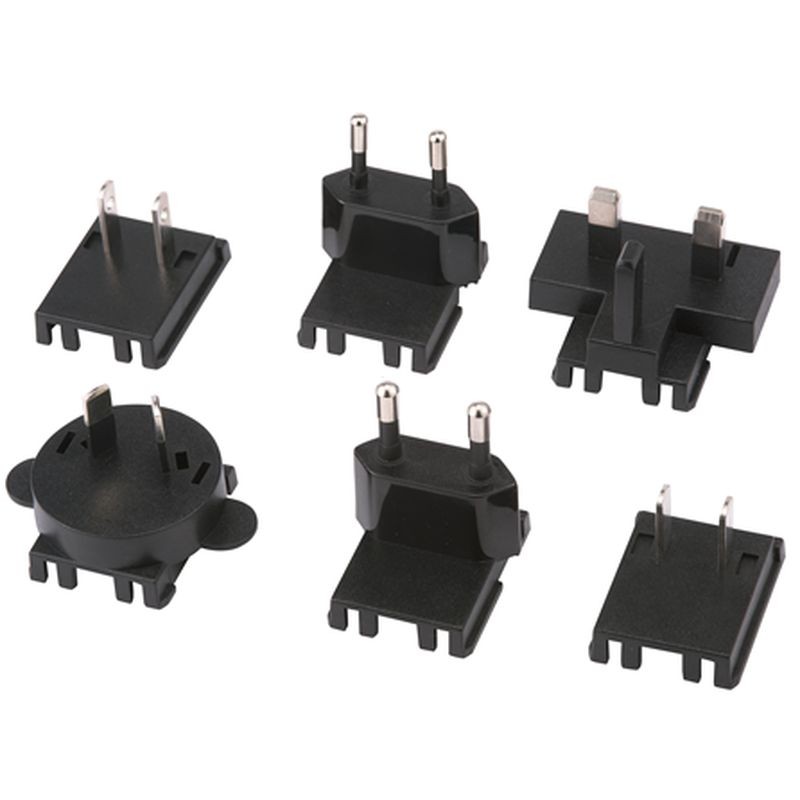

□ = V : Changeable Plug
Features:
* IEC/EN/UL 62368-1 3rd Edition
* 100-240VAC Universal Input
* Regulated Output with Low Ripple Noise
* Safety Agency Requirements and EMI/EMS Certified
* Modified and Custom Design Available
* 1 Year Warranty
Model Specifications
| Model | O/P Voltage | O/P Current | Watt |
|---|---|---|---|
| ATS018T-W050□ | 5.0V | 3.0A | 15.00W |
| ATS018T-W060□ | 5.9V | 2.5A | 14.75W |
| ATS018T-W061□ | 5.9V | 3.0A | 17.70W |
| ATS018T-W070□ | 7.0V | 2.5A | 17.50W |
| ATS018T-W075□ | 7.5V | 2.5A | 18.75W |
| ATS018T-W090□ | 9.0V | 2.2A | 19.80W |
| ATS018T-W100□ | 10.0V | 1.9A | 19.00W |
| ATS018T-W110□ | 11.0V | 1.6A | 17.60W |
| ATS018T-W120□ | 12.0V | 1.6A | 19.20W |
| ATS018T-W150□ | 15.0V | 1.3A | 19.50W |
| ATS018T-W160□ | 16.0V | 1.2A | 19.20W |
| ATS018T-W180□ | 18.0V | 1.1A | 19.80W |
| ATS018T-W240□ | 24.0V | 0.8A | 19.20W |
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240 VAC |
| Line Frequency | 50-60Hz |
| Current | 0.48A Max. |
| Protection | Internal Primary Current Fuse |
| Output | |
| Load Regulation | ±5% (Typical) |
| Ripple & Noise | ≤2% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS with 50% Load Change |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥ 10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection |
| Safety Approvals | |
| For USA | CB / UL / cUL / FCC / PSE / BSMI / LPS |
| For Europe | CB / CE / GS / LPS |
| For UK | CB / UKCA / LPS |
| For Australia | CB / RCM / LPS |
| For China | CB / CCC / LPS |
| Electrical | |
| Topology | Switching Flyback |
| Dielectric Withstand | 3,000VAC Primary - Secondary |
| Leakage Current | < 0.25mA |
| Efficiency | DoE Level VI, ErP Stage 2, CoC Tier 2 |
| EMC Standards | EN55032, EN61000-3-2,3, EN55035 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 2,000M |
| Relative Humidity | Operating: 20 to 80% RH Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
Overview

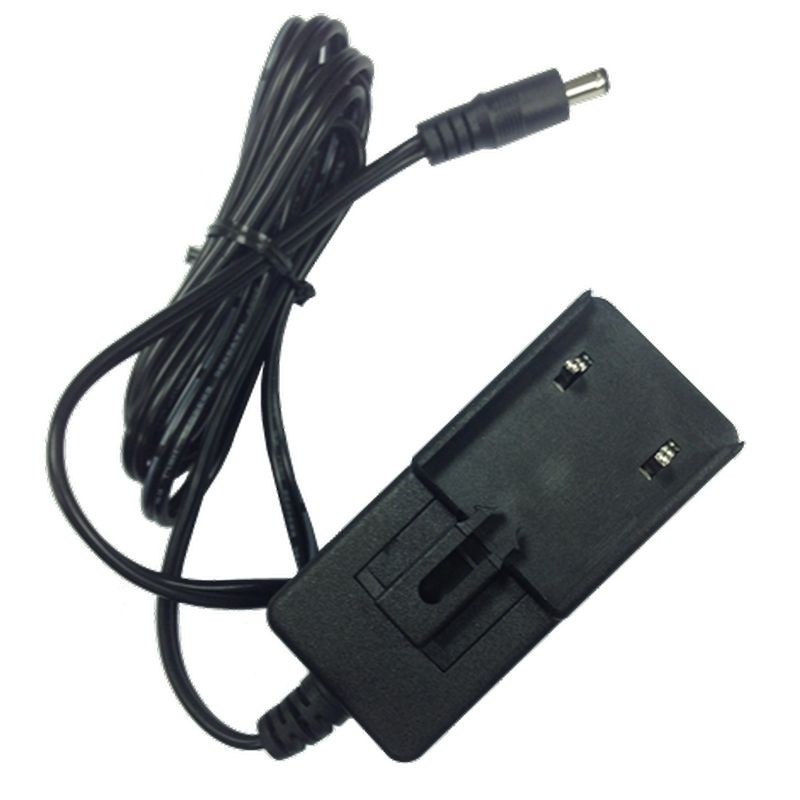

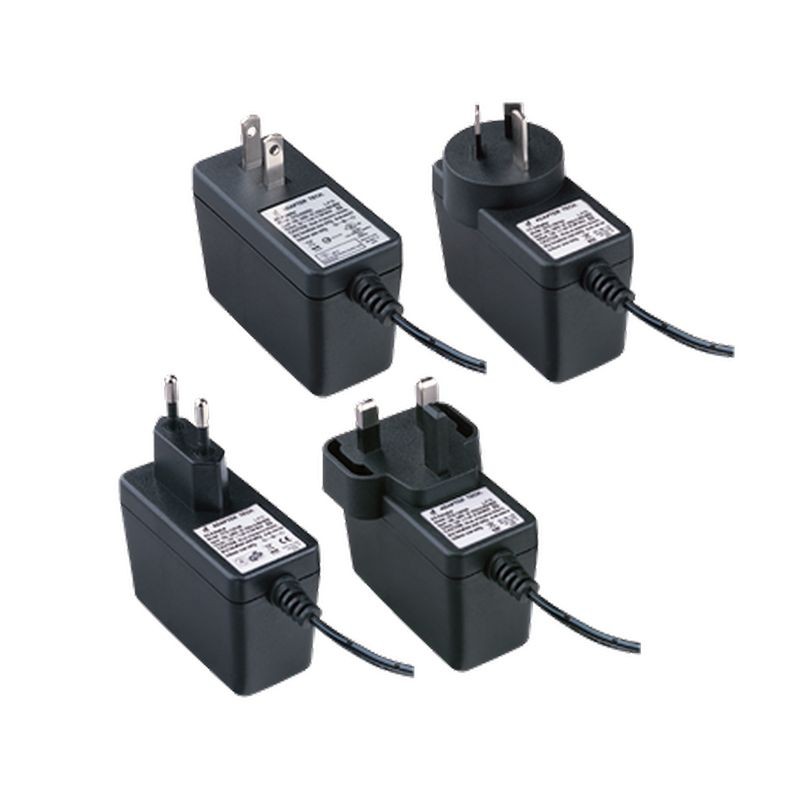

ATS018T‑W Series ITE Power Supply
The ATS018T‑W series is a wall-mount ITE power supply engineered for devices that require reliable, stable, and efficient external power. Its compact design allows for easy integration into commercial and industrial electronics, while its external configuration simplifies installation and maintenance without altering the host system.
With universal input capability and multiple plug options, this series is well-suited for devices distributed across international markets, reducing development and logistics complexity for manufacturers.
Reliable Performance for Continuous Operation
The ATS018T‑W series delivers consistent voltage ensuring stable operation under varying loads. Built-in protection mechanisms, including overvoltage, overcurrent, and short-circuit safeguards, help protect both the power supply and the equipment it supports.
Its energy-efficient design minimizes standby power consumption, making it suitable for devices that remain connected for extended periods, such as commercial terminals or networking equipment.
Integration and Connectivity
This power supply is compatible with standard DC output connectors, providing flexibility in configurations. Its neutral, low-profile exterior makes it suitable for office or light industrial environments. The external design allows for easy replacement without opening the host device, reducing downtime.
Applications and Use Cases
The ATS018T‑W series is commonly applied in:
- Networking and communication equipment
- Embedded control systems and modules
- Sensor and monitoring devices
- Commercial or industrial electronics requiring continuous operation
Support and Assurance
ATS018T‑W comes with a one-year warranty. Customization options, such as plug type and connector arrangement, are available. Technical support is provided to assist with product selection, integration, and troubleshooting.
FAQ
Q1: What types of devices are compatible with ATS018T‑W?
A1: The series is ideal for commercial and industrial electronics that require a wall-mount external power source with reliable performance.
Q2: How does the ATS018T‑W protect connected equipment?
A2: Built-in protections against overvoltage, overcurrent, and short circuits safeguard both the power supply and connected devices.
Q3: Can this power supply be used internationally?
A3: Yes, multiple plug options and universal input voltage make it suitable for deployment in various regions.
Q4: Is technical support available?
A4: Yes, the product includes a one-year warranty and technical assistance for selection and integration.
