45W USB-C
Information
ATN045A3-W200□

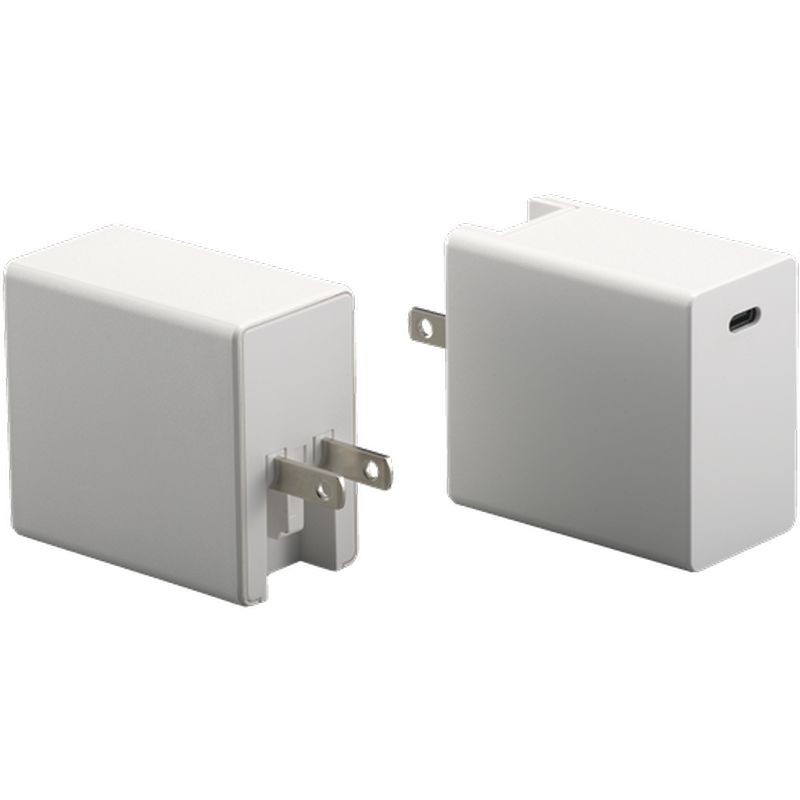

□ = U : Foldable US Plug / Available with EU/UK Changeable Plug

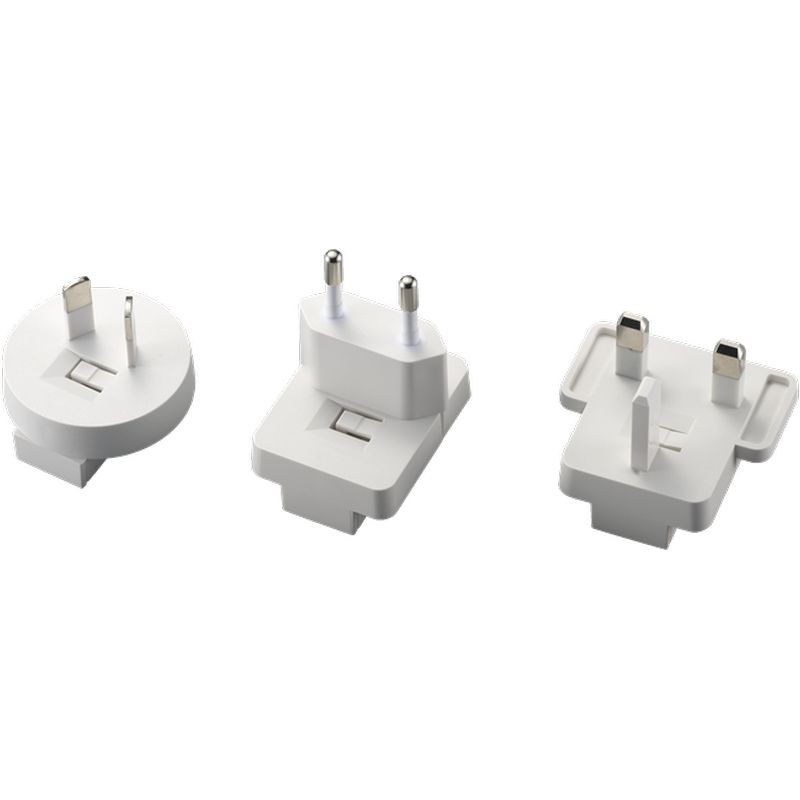

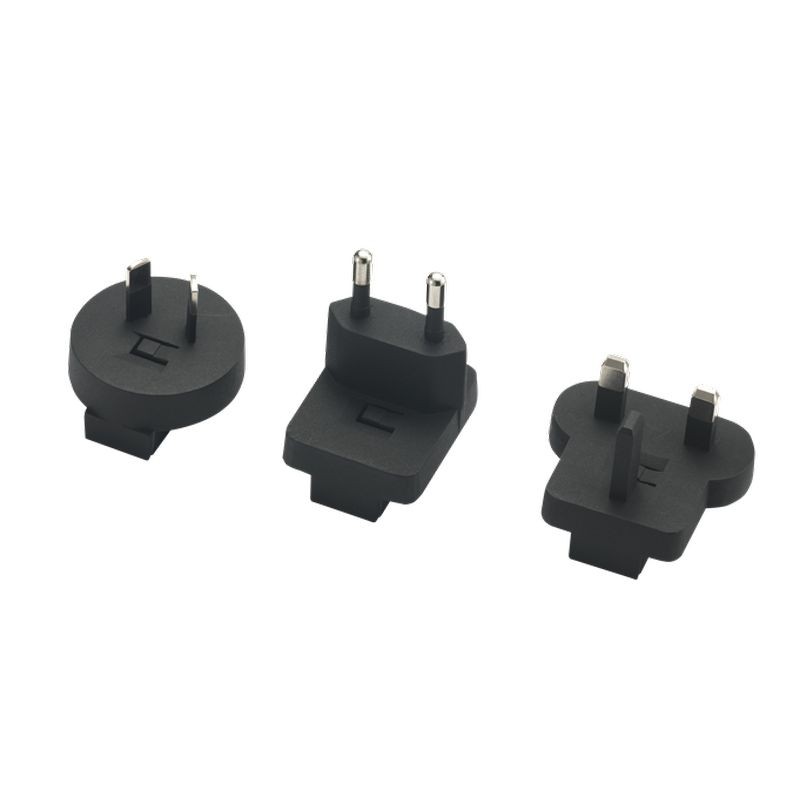

□ = V : Unfoldable Plug with US/EU/UK/AU Changeable Plug
Features:
* IEC/EN/ANSI/AAMI ES 60601-1 (ED 3.2)
* EMC: IEC60601-1-2 (ED 4.1)
* IEC/EN/UL 62368-1 3rd Edition
* Means of Protection: 2 X MOPP
* 100-240VAC Universal Input
* P.D. 3.0 / QC 4.0+ / QC 4.0
* Regulated Output with Low Ripple Noise
* Safety Agency Requirements and EMI/EMS Certified
* Modified and Custom Design Available
* 2 Years Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt |
|---|---|---|---|
| ATN045A3-W200□ | 5.0V | 3.00A | 15W |
| 9.0V | 3.00A | 27W | |
| 12.0V | 3.00A | 36W | |
| 15.0V | 3.00A | 45W | |
| 20.0V | 2.25A | 45W |
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240 VAC |
| Line Frequency | 50-60Hz |
| Current | 1A-0.5A |
| Protection | Internal Primary Current Fuse |
| Configuration | U for Foldable US Plug, V for Changeable Plug |
| Output | |
| Load Regulation | ± 5% (Typical) |
| Ripple & Noise | ≤ 200m Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS with 50% Load Change |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection |
| Safety Approvals | |
| For USA | CB / UL / cUL / FCC / PSE / BSMI |
| For Europe | CB / T-mark / CE / GS |
| For UK | CB / UKCA |
| Electrical | |
| Topology | Switching Flyback |
| Dielectric Withstand | 4,000VAC Primary - Secondary |
| Touch Current (Patient) Leakage Current | < 100µA |
| Efficiency | Meet DoE Level VI, ErP Stage2, CoC Tier 2 |
| EMC Standards | EN55011, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH, Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical | |
| Case Dimension | L 53.5 x W 31.5 x H 58 (mm) |
| Weight | 125g (Ref.) |
Overview

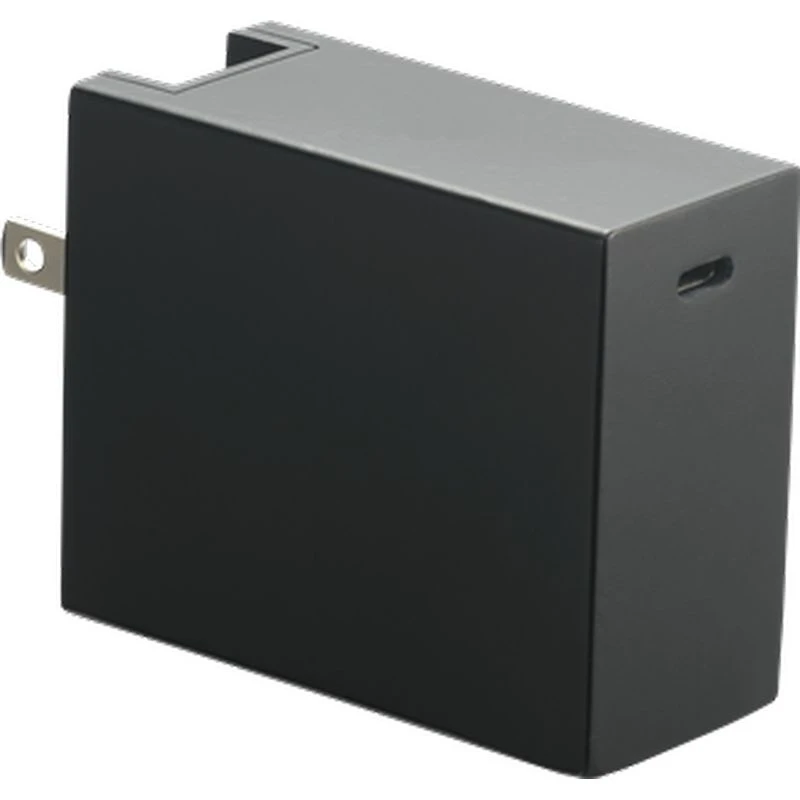

ATN045A3‑W200 45W USB‑C Power Adapter — Compact, Certified Charging Power
The ATN045A3‑W200 is a professional‑grade 45W USB‑C adapter designed to provide reliable and efficient power for modern devices like laptops, tablets, phones, and other USB‑C enabled equipment. It uses USB Power Delivery (PD) technology to automatically adjust output voltage and deliver the right amount of power your device requests.
Universal Compatibility and Fast Power Delivery
This adapter supports a wide AC input range of 100‑240 VAC, so it works in most countries without needing extra converters. It delivers up to 45 W of USB‑C power, with multiple voltage levels (such as 5 V, 9 V, 12 V, 15 V and 20 V) that match a variety of PD‑enabled devices for fast and smooth charging.
Stable Output with Low Noise
Engineered with regulated output and low ripple noise, this 45W USB‑C adapter gives stable performance that helps protect sensitive electronics from power spikes and disturbances. Its design meets strict performance expectations for everyday use.
Safety Certifications for Peace of Mind
Safety is built into this adapter: it meets international safety standards such as IEC/EN/ANSI ES60601‑1 (Edition 3.2), EMC requirements, and IEC/EN/UL 62368‑1 third edition. It also includes protections like short circuit, over‑voltage and over‑current safeguards to help protect both the adapter and connected devices.
Portable and Practical
The design of the ATN045A3‑W200 is compact and lightweight, making it great for travel, office desks, home use, or anywhere you need a reliable 45W USB‑C power source. Its plug options (like foldable or changeable plugs) add flexibility for different regions.
Ideal Use Cases
- Charging USB‑C laptops and ultrabooks
- Fast charging phones, tablets and PD‑enabled devices
- Providing dependable power in office or home setups
- A compact, efficient travel charger
With certified safety features, broad device support, and flexible use cases, the ATN045A3‑W200 gives users a trustworthy and efficient 45W USB‑C charging option designed for modern electronics.
