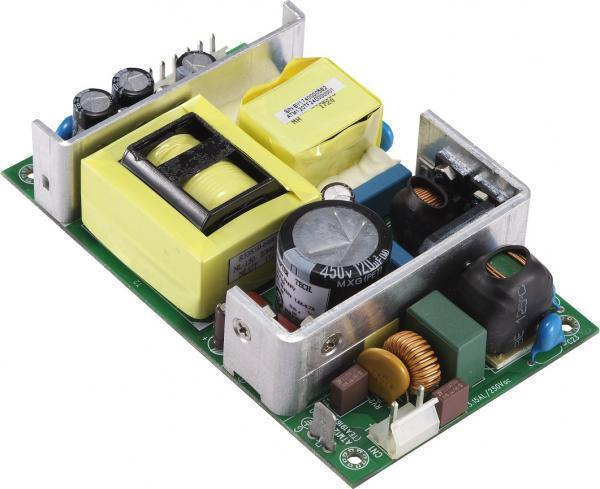

I.T.E. / Medical Open Frame Power Supply 120 Watt Series

I.T.E. / Medical Open Frame Power Supply 120 Watt Series
商品番号: ATM120T-FXXX

Download Catalogue Download Now !
機能:

* IEC/EN/ANSI/AAMI ES 60601-1 (ED 3.1)
* Means of Protection: 2 X MOPP
* Touch Current: < 100µA
* Meet IEC/EN/UL 60950-1
* 100-240VAC Universal Input
* Single Output to 120W
* Regulated Output with Low Ripple Noise
* Modified and Custom Design Available
* 2 Years Warranty

Green Mode
Meet CEC, DoE Level VI, Erp Stage 2
No Load Power Consumption Less Than 0.21W



Model O/P Voltage O/P Current Watt
ATM120T-F120 12.0V 10.0A 120W
ATM120T-F150 15.0V   8.0A 120W
ATM120T-F190 19.0V   6.3A 120W
ATM120T-F240 24.0V   5.0A 120W
ATM120T-F300 30.0V   4.0A 120W
ATM120T-F480 48.0V   2.5A 120W
Input
Voltage 100-240 VAC
Line Frequency 50-60Hz
Current 1.5A - 0.7A
Protection Internal Primary Current Fuse
Output
Load Regulation ± 5% (Typocal)
Ripple & Noise 1% Vp-p Max. for Output Voltage @ Full Load
Transient Response 0.5mS for 50% Load Change Typical
Hold-up Time 10mS min. @ Full Load
Protection Short Circuit Protection/ Over Voltage Protection/
Over Current Protection/ Over Temperature Protection
Safety Approvals
 CB / UL / T-mark / CE
Electrical
Topology LLC
Dielectric Withstand 4000 VAC Primary - Secondary
Touch Current < 100µA
MTBF 300,000 Calculated Hours at 25°C, by Telcordia SR-332
Environmental
Operaturing Temperature 0 to +50°C
Storage Temperature -20 to +80°C RH
Relative Humidity Operating: 20 to 80% RH
Storage: 10 to 90% RH
Cooling Natural Convection Cooling
Mechanical
Dimension L 127 x W 76 x H 30.5 (mm)
  5" x 3" x 1.2" (inch)
Weight 300g (Ref.)
注文情報:
  • 最低発注量: Negotiable
  • OEM/ODM Product, Branded Product, Buyer's Label Offered
  • FOB(本船渡し): HK
