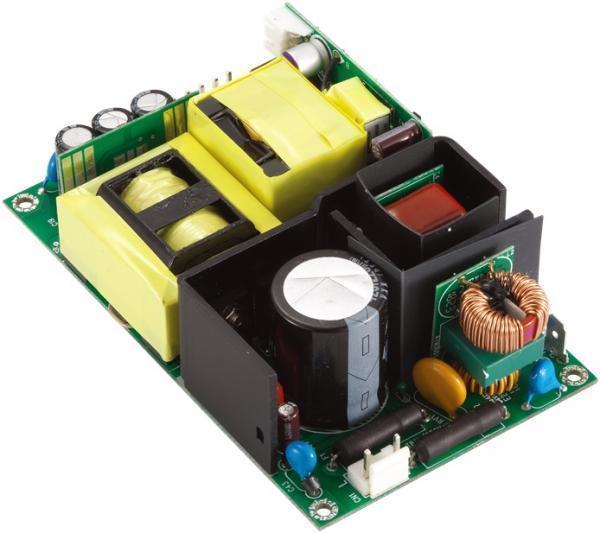

I.T.E. / Medical Open Frame Dual Output - 305 Watt Series

I.T.E. / Medical Open Frame Dual Output - 305 Watt Series
商品番号: ATM305T-Fxxx

XXX = O/P Voltage


Download Catalogue Download Now !
機能:

* IEC/ANSI/AAMI ES 60601-1 (ED 3.1)
* Means of Protection: 2 X MOPP
* Touch Current: < 100µA
* Meet IEC/UL 60950-1
* 100-240VAC Universal Input
* 305W With Fan
* Standby 5V / 1A
* On & Off Remote Control
* Regulated Output with Low Ripple Noise
* Modified and Custom Design Available
* 2 Years Warranty





Green Mode
Meet CEC, DoE Level VI, ErP Stage 2
No Low Power Consumptions Less Than 0.21W



Model O/P Voltage O/P Current Watt
Convection With Fan Convection With Fan
ATM305T-F120 12.0V 16.0A 25.0A 197W 305W
5.0V 1.0A
ATM305T-F240 24.0V 10.4A 12.5A 255W 305W
5.0V 1.0A
ATM305T-F480 48.0V 5.2A 6.25A 255W 305W
5.0V 1.0A
Input
Voltage 100-240 VAC
Line Frequency 50-60Hz
Current 3.6A - 1.6A
Protection Internal Primary Current Fuse
Output
Load Regulation ± 5% (Typocal)
Ripple & Noise 1% Vp-p Max. for Output Voltage @ Full Load
Transient Response 0.5mS for 50% Load Change Typical
Hold-up Time 10mS min. @ Full Load
Protection Short Circuit Protection/ Over Voltage Protection/ Over Current Protection/ Over Temperature Protection
Safety Approvals
CB / UL / cUL
Electrical
Topology LLC
Dielectric Withstand 4000 VAC Primary - Secondary
Touch Current  < 100µA
MTBF 300,000 Calculated Hours at 25°C, by Telcordia SR-332
Environmental
Operaturing Temperature 0 to +50°C
Storage Temperature -20 to +80°C RH
Relative Humidity Operating: 20 to 80% RH
Storage: 10 to 90% RH
Cooling ATM305T-F120: 197W With Convection Cooling
ATM305T-F240: 255W With Convection Cooling
ATM305T-F480: 255W With Convection Cooling
305W With fan cooling
Mechanical
Dimension L 127 x W 76 x H 38 (mm)
5" x 3" x 1.5" (inch)
Weight 350g (Ref.)
注文情報:
  • 最低発注量: Negotiable
  • OEM/ODM Product, Branded Product, Buyer's Label Offered
  • FOB（本船渡し）: HK
