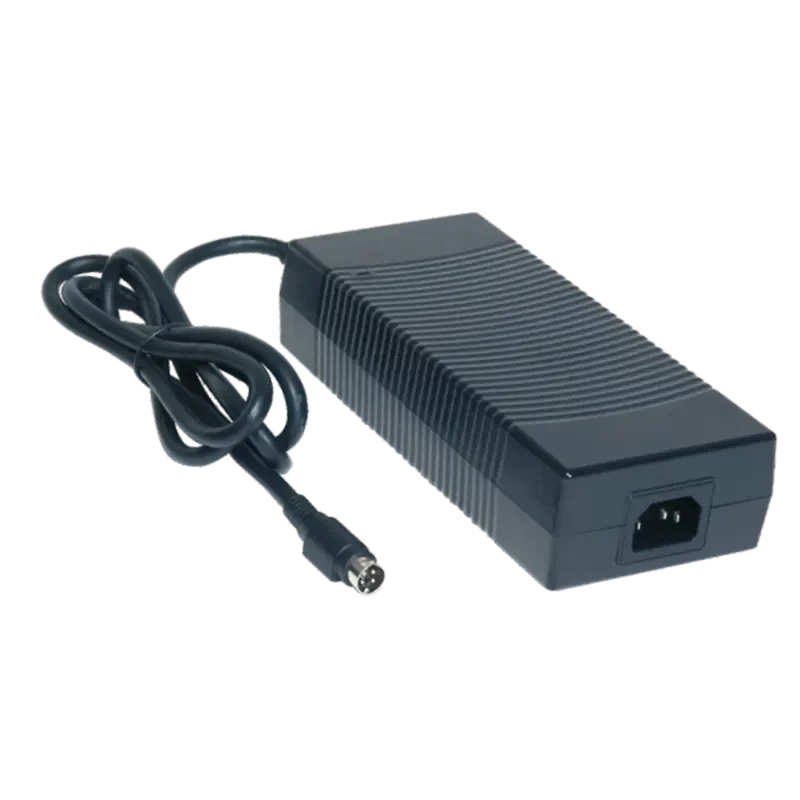

160W Series
Information
ATM160T-PXXX
XXX = Output Voltage

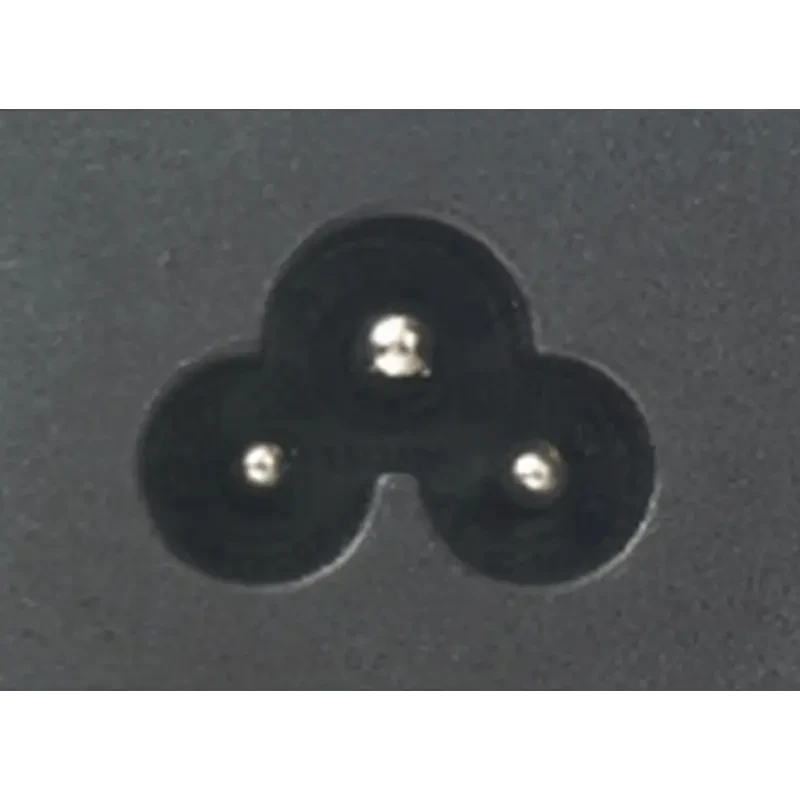

P : C6 / C14
Features:
* IEC/EN/ANSI/AAMI ES60601-1
* Electromagnetic compatibility: IEC60601-1-2
* Protection method: 2 X MOPP
* Touch current: < 100µA
* Regulated output with low ripple and noise
* Meets safety agency requirements and has passed EMI/EMS certification
* Modifications and customized designs available
* 2-year warranty
Output Specifications
| Model | Output Voltage | Output Current | Watts |
| ATM160T-P120 | 12.0V | 12.5A | 150W |
| ATM160T-P190 | 19.0V | 8.4A | 160W |
| ATM160T-P240 | 24.0V | 6.6A | 160W |
| ATM160T-P480 | 48.0V | 3.3A | 160W |
Detailed Specifications
| Input | |
| Voltage | 100-240VAC(Nominal), 90-264VAC(Range) |
| Power Frequency | 50-60Hz(Nominal), 47-63(Range) |
| Current | 1.8A-0.9A |
| Protection | Internal primary-side current fuse |
| Connector Configuration | IEC60320 / C6, C14 |
| Output | |
| Load Regulation | ±5% (Typical) |
| Ripple and Noise | ≤1% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS at 50% load change |
| Hold-up Time | 10mS @ Full Load |
| Protection | Short-Circuit Protection / Overvoltage Protection / Overcurrent Protection / Overtemperature Protection |
| Safety Certifications | |
| CB / UL / cUL / FCC / CE / TUV / PSE | |
| Electrical | |
| Topology | LLC |
| Dielectric Strength | 3,000VAC Primary - Secondary |
| Ground Leakage Current | < 100µA |
| Efficiency | Compliant with DoE Level VI, ErP Stage 2 |
| EMC Standard | EN55011 |
| EN61000-3-2,3 | |
| EN61000-4-2,3,4,5,6,8,11 | |
| MTBF (Mean Time Between Failures) | 300,000 hours calculated according to Telcordia SR-332 at 25°C |
| Environment | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C (in packaging) |
| Relative Humidity | Operating: 20 to 80% RH (non-condensing) |
| Storage: 10 to 90% RH (in packaging) | |
| Cooling | Natural convection cooling |
| Mechanical | |
| Case Dimensions | Length 183 x Width 81 x Height 42 (mm) |
| Weight | 820g (Reference) |
