300W Series
Information

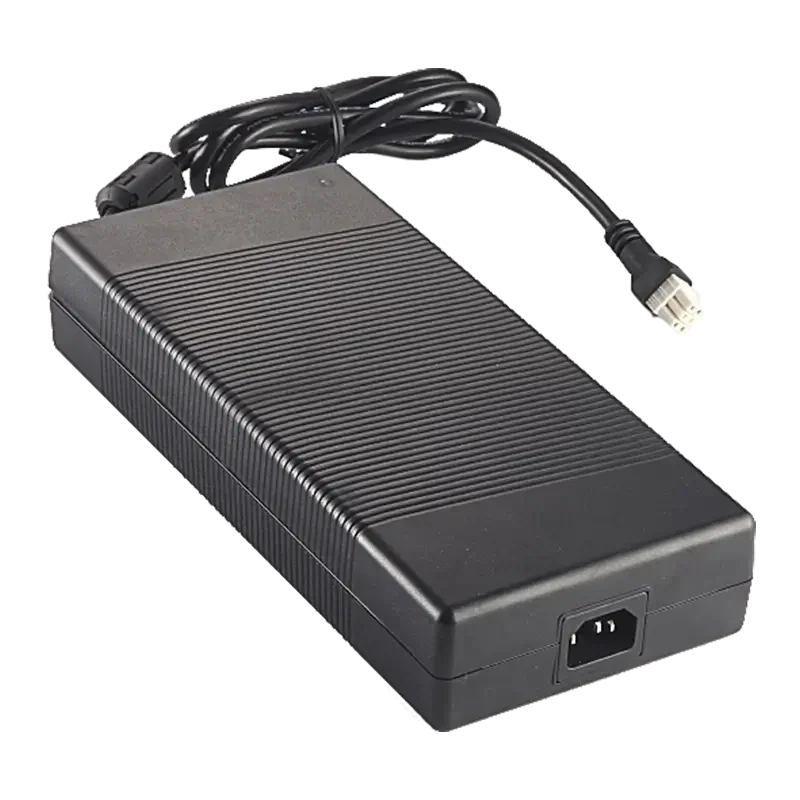

ATS300T-PXXX
XXX = Output Voltage

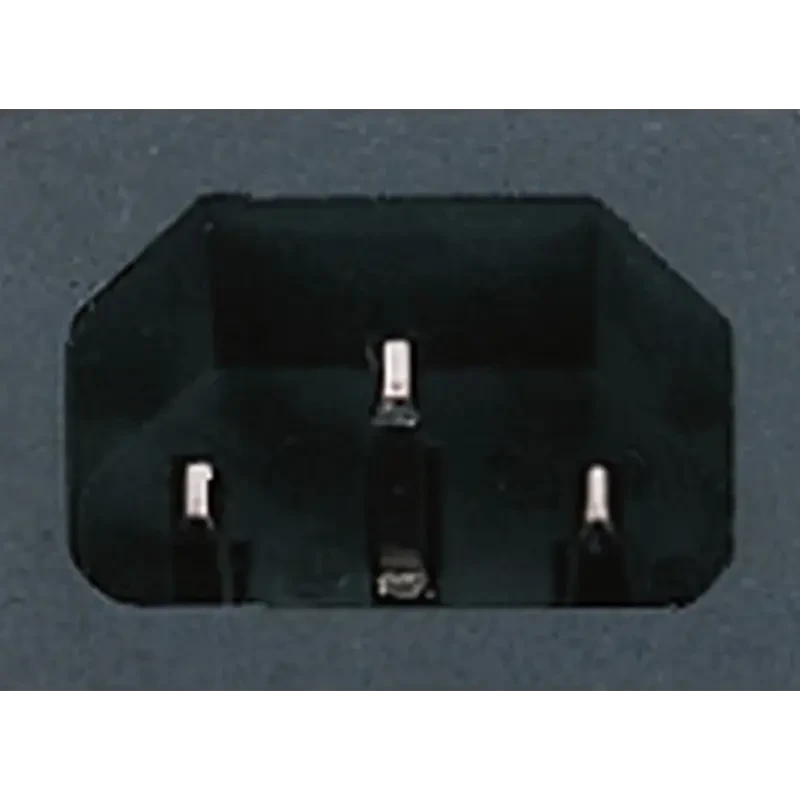

P : C14
Features:
* IEC/EN/UL 62368-1
* Regulated output with low ripple and noise
* Meets safety agency requirements and has passed EMI/EMS certification
* Modifications and customized designs available
* One-year warranty
Output Specifications
| Model | Output Voltage | Output Current | Wattage |
| ATS300T-P120 | 12.0V | 24.00A | 288W |
| ATM300T-P120 | 12.0V | 25.00A | 300W |
| ATS300T-P190 | 19.0V | 15.75A | 300W |
| ATS300T-P240 | 24.0V | 12.5A | 300W |
| ATS300T-P480 | 48.0V | 6.25A | 300W |
| ATS300T-P560 | 56.0V | 5.36A | 300W |
Specifications
| Input | |
| Voltage | 100-240VAC(Nominal), 90-264VAC(Range) |
| Power Frequency | 50-60Hz(Nominal), 47-63(Range) |
| Current | 3.9A maximum |
| Protection | Internal primary-side fuse |
| Connector Configuration | IEC60320 / C6, C14 |
| Output | |
| Load Regulation | ±5% (Typical) |
| Ripple and Noise | ≤1% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS at 50% load change |
| Hold-up Time | 10mS @ Full Load |
| Protection | Short-Circuit Protection / Over-Voltage Protection / Over-Current Protection / Over-Temperature Protection |
| Safety Certifications | |
| CB / UL / cUL / FCC / GS / CE / PSE / BSMI / CCC | |
| CB / UL / cUL / FCC / GS / CE / PSE for ATM300T-P120 | |
| Electrical | |
| Topology | LLC |
| Dielectric Strength | 3,000VAC Primary - Secondary |
| Earth Leakage Current | 3.5mA @ 3Pin |
| Efficiency | DoE Level VI |
| EMC Standards | EN55032, |
| EN61000-3-2,3 | |
| EN55024 | |
| MTBF (Mean Time Between Failures) | 300,000 hours calculated according to Telcordia SR-332 at 25°C |
| Environmental | |
| Operating Temperature | 0 to +40°C |
| Storage Temperature | -20 to +80°C (in packaging) |
| Relative Humidity | Operating: 20 to 80% RH (non-condensing) |
| Storage: 10 to 90% RH (in packaging) | |
| Cooling | Natural convection cooling |
| Mechanical | |
| Enclosure Dimensions | Length 254 x Width 116 x Height 47 (mm) |
| Weight | 1600g (approx.) |
