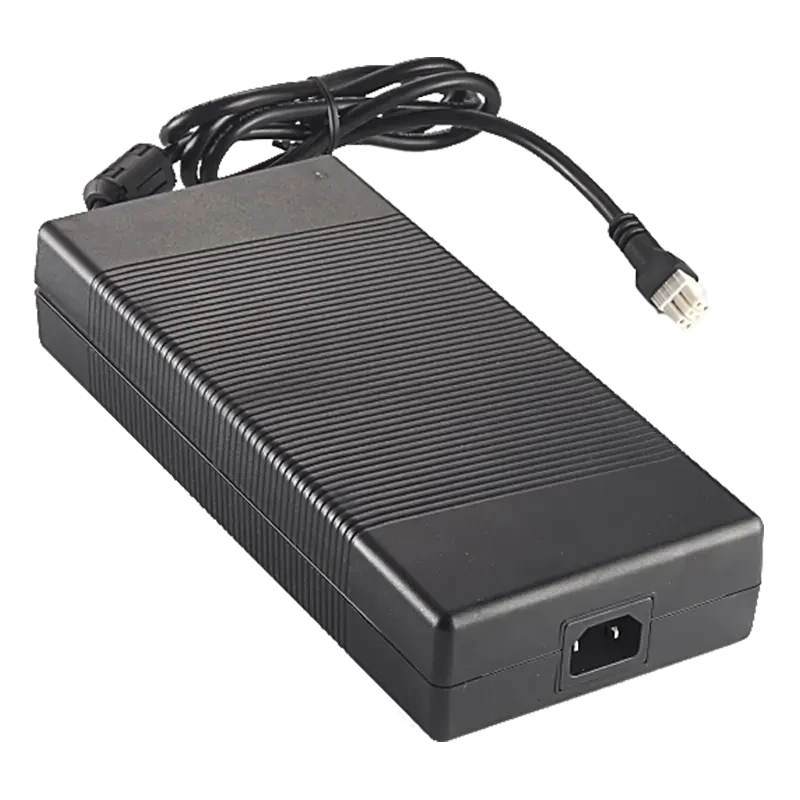

300W Series
Information
ATM300T-□XXX
XXX = Output Voltage

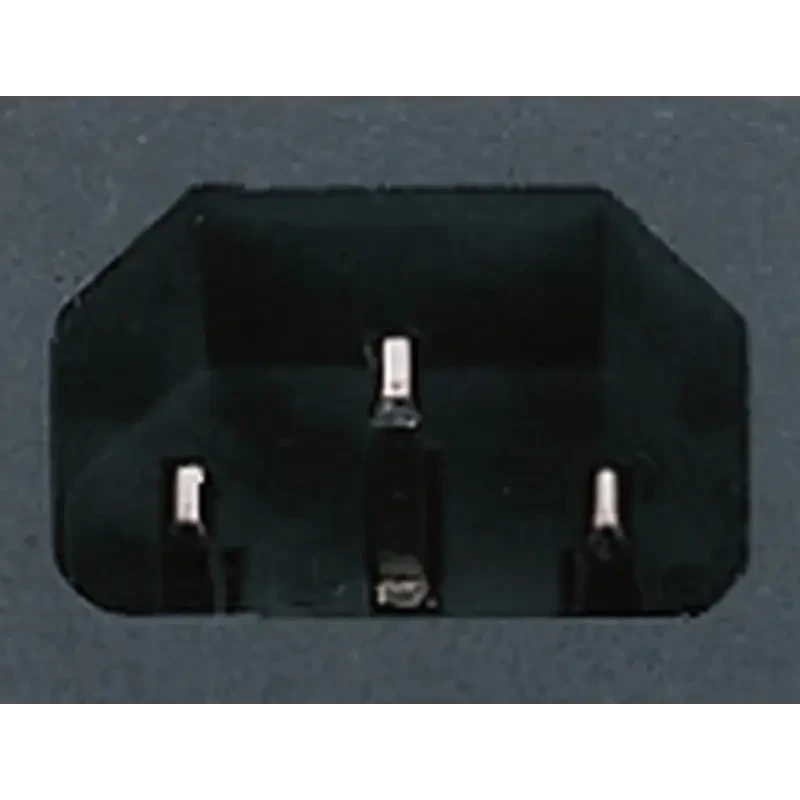

□= P : C14
A : C18
Features:
* IEC/EN/ANSI/AAMI ES60601-1
* Electromagnetic Compatibility: IEC60601-1-2
* Protection: 2 X MOPP
* Regulated output with low ripple and noise
* Meets safety agency requirements and has passed EMI/EMS certification
* Modifications and customized designs available
* 2-year warranty
Output Specifications
| Model | Output Voltage | Output Current | Wattage |
| ATM300T-□120 | 12.0V | 25.00A | 300W |
| ATM300T-□150 | 15.0V | 20.00A | 300W |
| ATM300T-□240 | 24.0V | 12.50A | 300W |
| ATM300T-□480 | 48.0V | 6.25A | 300W |
Specifications
| Input | |
| Voltage | 100-240VAC(Nominal), 90-264VAC(Range) |
| Line Frequency | 50-60Hz(Nominal), 47-63(Range) |
| Current | 3.5A-1.5A |
| Protection | Internal primary current fuse |
| Connector Configuration | IEC60320 / C14, C18 |
| Output | |
| Load Regulation | ±5% (Typical) |
| Ripple and Noise | ≤1% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS at 50% load change |
| Hold-up Time | > 10mS @ Full Load |
| Protection | Short-Circuit Protection / Overvoltage Protection / Overcurrent Protection / Overtemperature Protection |
| Safety Certifications | |
| CB / UL / cUL / FCC / CE / TUV / PSE | |
| Electrical | |
| Topology | LLC |
| Dielectric Withstand | 4,000VAC Primary - Secondary |
| Touch Current (Patient) | < 100µA |
| Efficiency | Compliant with DoE Level VI |
| EMC Standards | EN55011 |
| EN61000-3-2,3 | |
| EN61000-4-2,3,4,5,6,8,11 | |
| MTBF (Mean Time Between Failures) | 300,000 hours calculated according to Telcordia SR-332 at 25°C |
| Environmental | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C (In packaging) |
| Relative Humidity | Operating: 20 to 80% RH (Non-condensing) |
| Storage: 10 to 90% RH (In packaging) | |
| Cooling | Natural convection cooling |
| Mechanical | |
| Dimensions | Length 254 x Width 116 x Height 47 (mm) |
| Weight | 1,600g (Reference) |
