Open Frame Power Supply (12V)
Information
ATM012T-FXXX
XXX = O/P Voltage
Features:
* IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.2)
* EMC : IEC60601-1-2 (Edition 4.1)
* Means of Protection: 2 X MOPP
* IEC 62368-1
* 100-240VAC Universal Input
* Regulated Output With Low Ripple Noise
* Modified and Custom Design Available
* 2 Years Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt |
|---|---|---|---|
| ATM012T-F033 | 3.3V | 2.5A | 8.25W |
| ATM012T-F050 | 5.0V | 2.0A | 10.00W |
| ATM012T-F120 | 12.0V | 1.0A | 12.00W |
| ATM012T-F150 | 15.0V | 0.8A | 12.00W |
| ATM012T-F240 | 24.0V | 0.5A | 12.00W |
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240 VAC |
| Line Frequency | 50-60Hz |
| Current | 0.29A - 0.17A |
| Protection | Internal Primary Current Fuse |
| Output | |
| Load Regulation | ± 5% (Typical) |
| Ripple & Noise | ≤2% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS for 50% Load Change Typical |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection |
| Safety Approvals | |
| Approvals | CB / UL / cUL / FCC / CE / T-mark |
| Electrical | |
| Topology | Switching Flyback |
| Dielectric Withstand | 4,000VAC Primary - Secondary |
| Touch Current (Patient) Leakage Current | <100µA |
| Efficiency | Meet DoE Level VI, ErP Stage 2 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +50°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical | |
| Dimension | L 65 x W 44.7 x H 24 (mm) 2.56"x1.77"x0.95"(inch) |
| Weight | 42g (Ref.) |
Overview

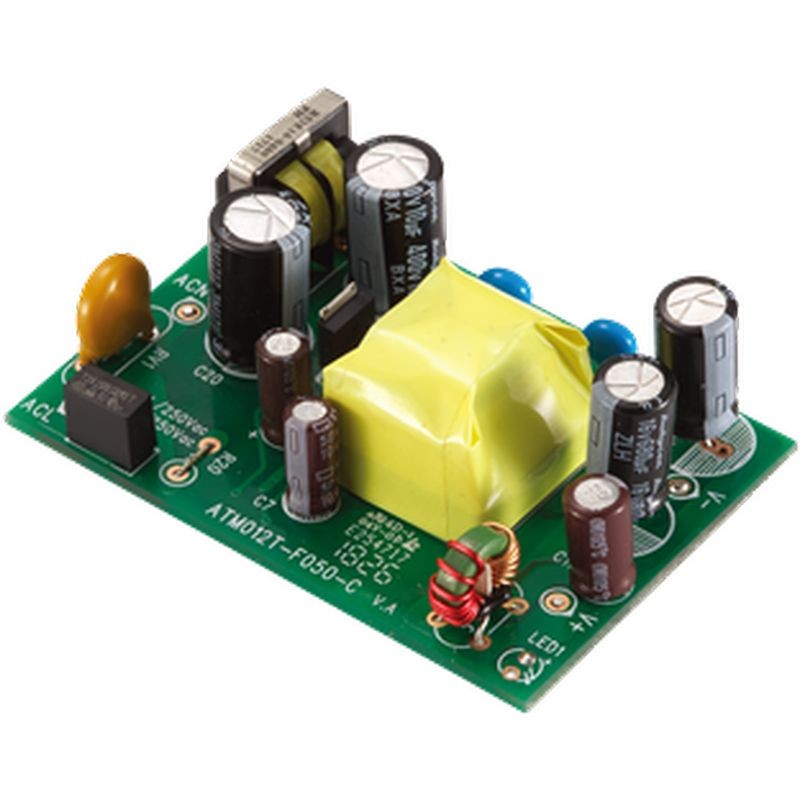

ATM012T‑F Open Frame Power Supply
The ATM012T‑F is a compact open frame power supply designed for medical and industrial equipment that requires stable, reliable, and efficient DC power. Its open frame design allows system integrators and OEMs to embed the power supply directly into equipment, optimizing space and thermal management while maintaining performance.
Developed by a trusted manufacturer, this series ensures consistent power delivery with low noise, making it ideal for sensitive electronics in both professional and medical environments.
Why Choose the ATM012T‑F
The ATM012T‑F offers high reliability and operational safety, making it suitable for devices that require uninterrupted power and strict adherence to safety standards. Its design supports integration into a variety of systems, enabling manufacturers to reduce assembly complexity while ensuring dependable performance.
Applications and Use Cases
This open frame power supply is commonly used in:
- Embedded control systems and automation equipment
- Medical monitoring and diagnostic devices
- Communication and networking hardware
- Laboratory and professional electronics requiring consistent power
By embedding this adapter into equipment, manufacturers can achieve a compact, efficient, and reliable power solution without compromising device performance.
Support and Assurance
The ATM012T‑F comes with a two-year warranty and dedicated technical support, helping engineers integrate the power supply confidently into their systems. Additional resources, such as datasheets and safety compliance documentation, are available to ensure proper installation and regulatory adherence. OEM customization options are also supported for specialized project needs.
