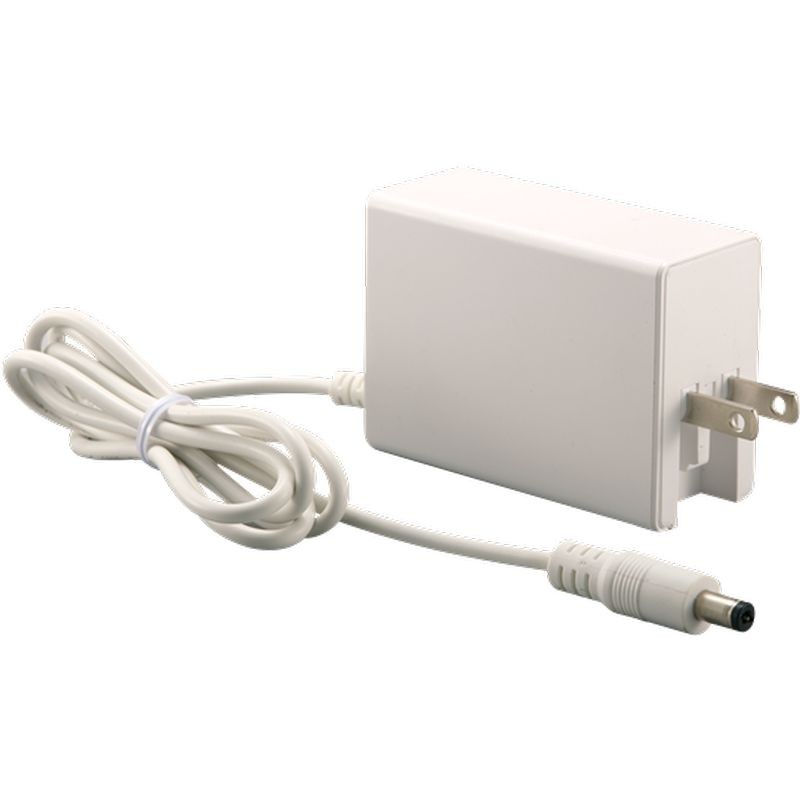

65W Series
Information
ATM065A4-WXXX□
XXX = O/P Voltage

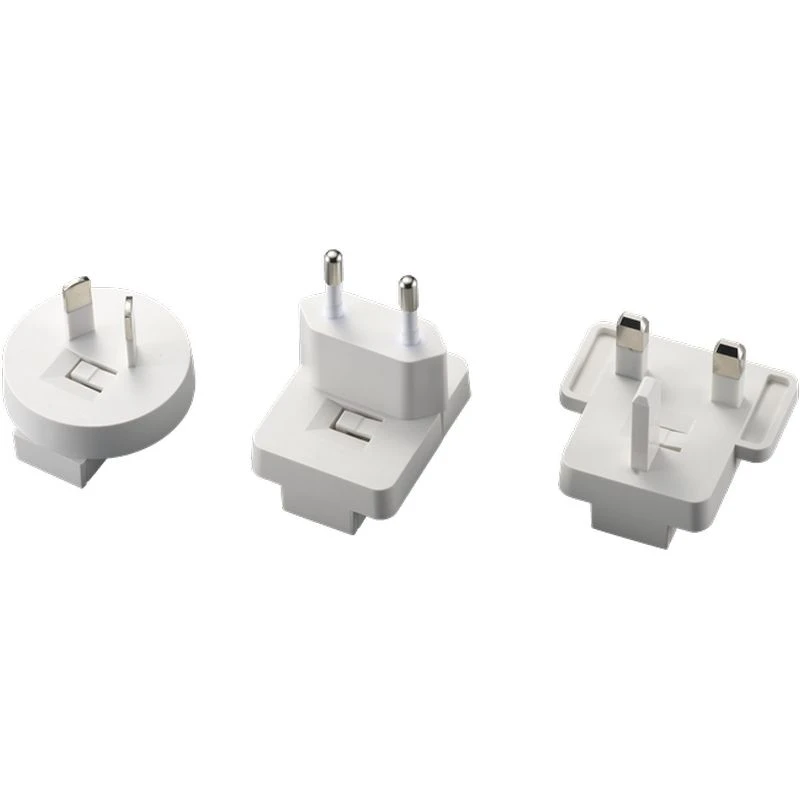

□ = U : US Plug / Changeable Plug
□ = V : Changeable Plug
Features:
* IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.2)
* EMC : IEC60601-1-2 (Edition 4.1)
* IEC/EN/UL 62368-1 3rd Edition
* Means of Protection: 2 X MOPP
* 100-240VAC Universal Input
* Regulated Output With Low Ripple Noise
* Safety Agency Requirements and EMI/EMS Certified
* Modified and Custom Design Available
* 2 Years Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt |
|---|---|---|---|
| ATM065A4-W120□ | 12.0V | 5.00A | 60W |
| ATM065A4-W150□ | 15.0V | 4.34A | 65W |
| ATM065A4-W190□ | 19.0V | 3.43A | 65W |
| ATM065A4-W240□ | 24.0V | 2.71A | 65W |
| ATM065A4-W480□ | 48.0V | 1.36A | 65W |
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240 VAC |
| Line Frequency | 50-60Hz |
| Current | 1.6A-0.7A |
| Protection | Internal Primary Current Fuse |
| Configuration | U for US Plug / Changeable Plug |
| V for Changeable Plug | |
| Output | |
| Load Regulation | ± 5% (Typical) |
| Ripple & Noise | ≤1% Vp-p @ Full Load |
| Transient(Dynamic) Response | 0.5mS with 50% Load Change |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥ 10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection |
| Safety Approvals | |
| Approvals | CB / UL / cUL / FCC / TUV / CE / PSE |
| Electrical | |
| Topology | Switching Flyback |
| Dielectric Withstand | 4,000VAC Primary - Secondary |
| Touch Current (Patient) | < 100µA |
| Leakage Current | < 100µA |
| Efficiency | Meet DoE Level VI, ErP Stage 2, CoC Tier 2 |
| EMC Standards | EN55011, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH, Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical | |
| Case Dimension | L 53.5 x W 31.5 x H 74.5 (mm) |
| Weight | 195g (Ref.) |
