Medical Power Adapter
Information
ATM065T-□XXX
XXX = O/P Voltage
□ = P : C6 / C14
□ = A : C8 / C18
Features:
* IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.2)
* EMC : IEC60601-1-2 (Edition 4.1)
* Means of Protection: 2 X MOPP
* 100-240VAC Universal Input
* Regulated Output With Low Ripple Noise
* Safety Agency Requirements and EMI/EMS Certified
* Modified and Custom Design Available
* 2 Years Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt |
|---|---|---|---|
| ATM065T-□120 | 12.0V | 5.00A | 60W |
| ATM065T-□150 | 15.0V | 4.34A | 65W |
| ATM065T-□180 | 18.0V | 3.62A | 65W |
| ATM065T-□190 | 19.0V | 3.43A | 65W |
| ATM065T-□240 | 24.0V | 2.71A | 65W |
| ATM065T-□300 | 30.0V | 2.17A | 65W |
| ATM065T-□360 | 36.0V | 1.81A | 65W |
| ATM065T-□480 | 48.0V | 1.36A | 65W |
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240 VAC |
| Line Frequency | 50-60Hz |
| Current | 1.6A-0.7A |
| Protection | Internal Primary Current Fuse |
| Configuration | IEC60320/C6, C8, C14, C18 |
| Output | |
| Load Regulation | ± 5% (Typical) |
| Ripple & Noise | ≤1% Vp-p @ Full Load |
| Transient(Dynamic) Response | 0.5mS with 50% Load Change |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥ 10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection |
| Safety Approvals | |
| Approvals | CB / UL / cUL / FCC / CE / T-mark / PSE |
| Electrical | |
| Topology | Switching Flyback |
| Dielectric Withstand | 4,000VAC Primary - Secondary |
| Touch Current (Patient) | < 100µA |
| Leakage Current | < 100µA |
| Earth Leakage Current | < 5mA |
| Efficiency | Meet DoE Level VI, ErP Stage 2 |
| EMC Standards | EN55011, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH, Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical | |
| Case Dimension | L 119 x W 60 x H 36 (mm) |
| Weight | 310g (Ref.) |
Overview

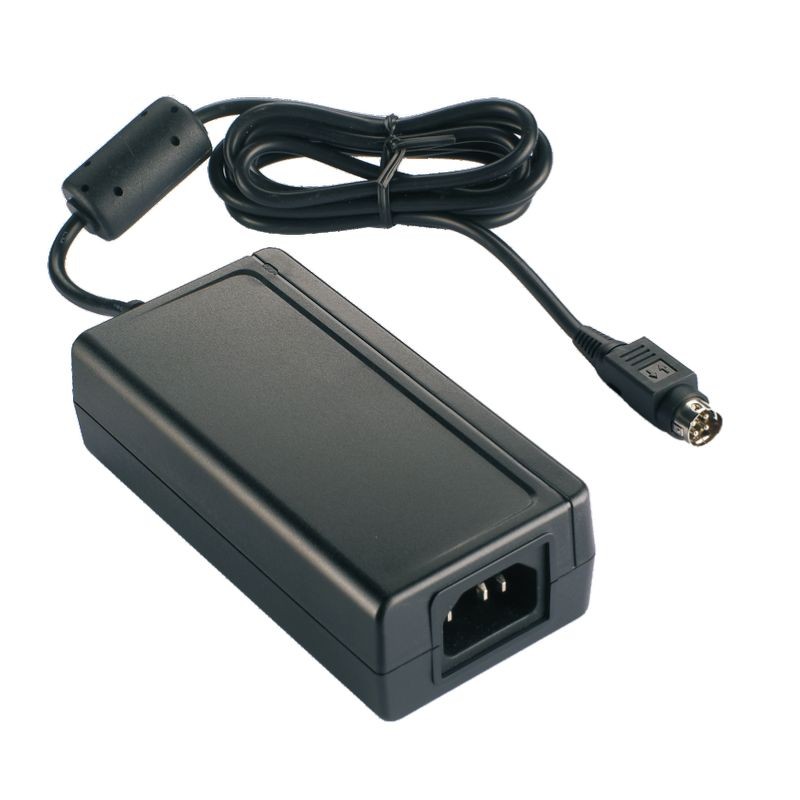

ATM065T-P/A Series 65W Medical Desktop Power Adapter
The ATM065T-P/A series is a 65W medical power adapter designed for healthcare equipment that requires stable output, electrical safety, and long-term reliability. This desktop-style adapter is suitable for clinical and laboratory devices that operate continuously and demand consistent power performance.
Designed in compliance with IEC/EN/ANSI/AAMI ES60601-1 and IEC60601-1-2 standards, the ATM065T-P/A series supports medical applications where patient protection and equipment stability are essential. Its desktop configuration allows flexible placement while supporting various DC output and connector options for different device designs.
Stable Output for Medical Equipment
The ATM065T-P/A series delivers regulated DC output with low ripple characteristics, supporting accurate operation of sensitive medical electronics. This stability helps maintain reliable device performance in environments such as clinics, laboratories, and medical workstations.
Integrated protection functions include overcurrent, overvoltage, and short-circuit safeguards. With 2 x MOPP isolation, this medical power adapter provides an additional level of electrical safety, helping protect patients, operators, and connected equipment.
Design for Clinical and Laboratory Use
The desktop form factor supports flexible power routing and placement, making it suitable for devices positioned on carts, desks, or shelves. Universal AC input allows the same medical power adapter platform to be used in different regions by selecting appropriate AC power cords.
DC output cable and connector options can be matched to specific medical devices, supporting OEM and system integration needs without redesigning the power architecture.
Typical Applications
The ATM065T-P/A series is commonly used in:
- Patient monitoring and diagnostic systems
- Medical imaging peripherals and accessories
- Laboratory analyzers and testing instruments
- Clinical equipment requiring a reliable medical power adapter for continuous operation
Support and Warranty
The ATM065T-P/A series includes a two-year warranty and technical support for product selection and integration. Custom options such as DC connector type, cable length, and regional AC power cords are available to meet specific project requirements.
FAQ
Q1: What type of devices is the ATM065T-P/A designed for?
A1: It is intended for medical and laboratory equipment that requires a desktop medical power adapter with stable output and enhanced electrical safety.
Q2: Does this adapter meet medical safety standards?
A2: Yes. It complies with IEC/EN/ANSI/AAMI ES60601-1 and IEC60601-1-2, including 2 x MOPP isolation.
Q3: Can this medical power adapter be used in different countries?
A3: Yes. Universal AC input supports global use with appropriate regional AC power cords.
Q4: Are custom DC connectors available?
A4: Yes. DC connector types and cable configurations can be adjusted to match specific device requirements.
