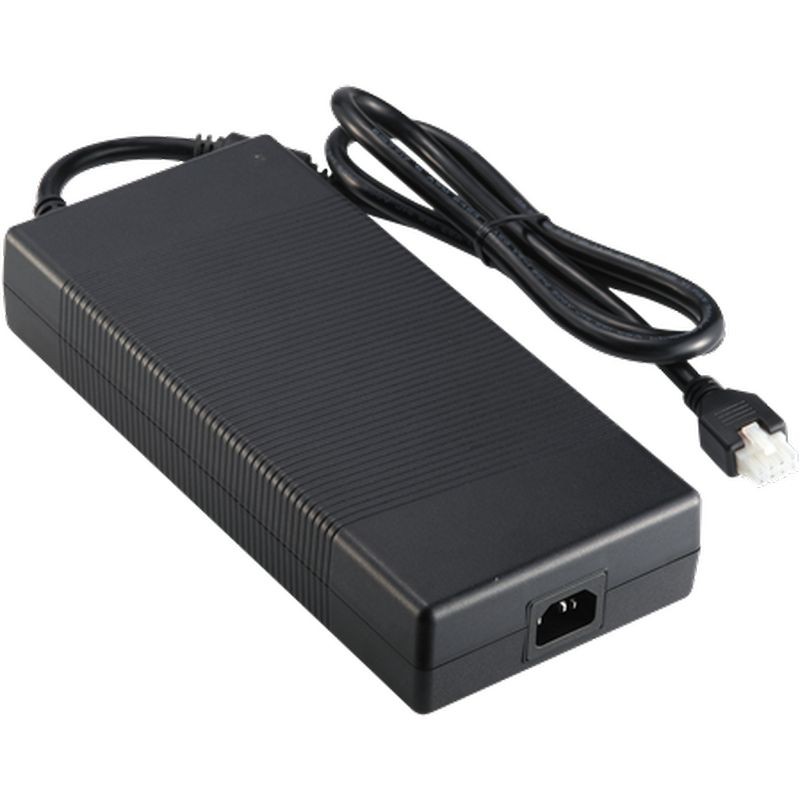

450W Series

Type：ATM450A2-P

Add to Inquiry

Information

ATM450A2-PXXX

XXX = O/P Voltage

P : C14

Features:

* IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.2)
* EMC : IEC60601-1-2 (Edition 4.1)
* IEC/EN/UL 62368-1 3rd Edition
* 100-240 VAC Universal Input
* Gallium Nitride Based Design
* Means of Protection: 2 X MOPP
* Efficiency up to 95%
* Regulated Output with Low Ripple Noise
* Modified and Custom Design Available
* 2 Years Warranty

Output Specifications

Model	O/P Voltage	O/P Current	Watt
ATM450A2-P120	12.0V	33.34A	400W
ATM450A2-P190	19.0V	23.60A	450W
ATM450A2-P240	24.0V	18.75A	450W
ATM450A2-P480	48.0V	9.38A	450W
ATM450A2-P560	56.0V	8.05A	450W

Specifications Details

Input
Voltage	100-240 VAC
Line Frequency	50-60Hz
Current	5.3A-2.2A
Protection	Internal Primary Current Fuse
Configuration	IEC60320 / C14
Output
Load Regulation	± 5% (Typical)
Ripple & Noise	≤1% Vp-p @ Full Load
Transient (Dynamic) Response	0.5mS with 50% Load Change
Start-up Time	< 3,000mS
Hold-up Time	≥10mS @ Full Load
Rise Time	< 50mS
Protection	Short Circuit Protection/ Over Voltage Protection/ Over Current Protection/ Over Temperature Protection
Safety Approvals
Approvals	CB / UL / cUL / FCC / GS / TÜV Mark / CE / PSE / BSMI
Electrical
Topology	LLC
Dielectric Withstand	4,000VAC Primary - Secondary
Touch Current (Patient)	< 100µA
Leakage Current	< 100µA
Earth Leakage Current	< 5mA
Efficiency	DoE Level VI
EMC Standards	EN55032 / EN55011, EN61000-3-2,3, EN55035 / EN61000-4-2,3,4,5,6,8,11
MTBF	300,000 Calculated Hours at 25°C, by Telcordia SR-332
Environmental
Operating Temperature	-20 to +40°C
Storage Temperature	-20 to +80°C
Operating Altitude	5,000M
Relative Humidity	Operating: 20 to 80% RH, Storage: 10 to 90% RH
Cooling	Natural Convection Cooling
Mechanical
Case Dimension	L 254 x W 116 x H 47 (mm)
Weight	1,600g (Ref.)
