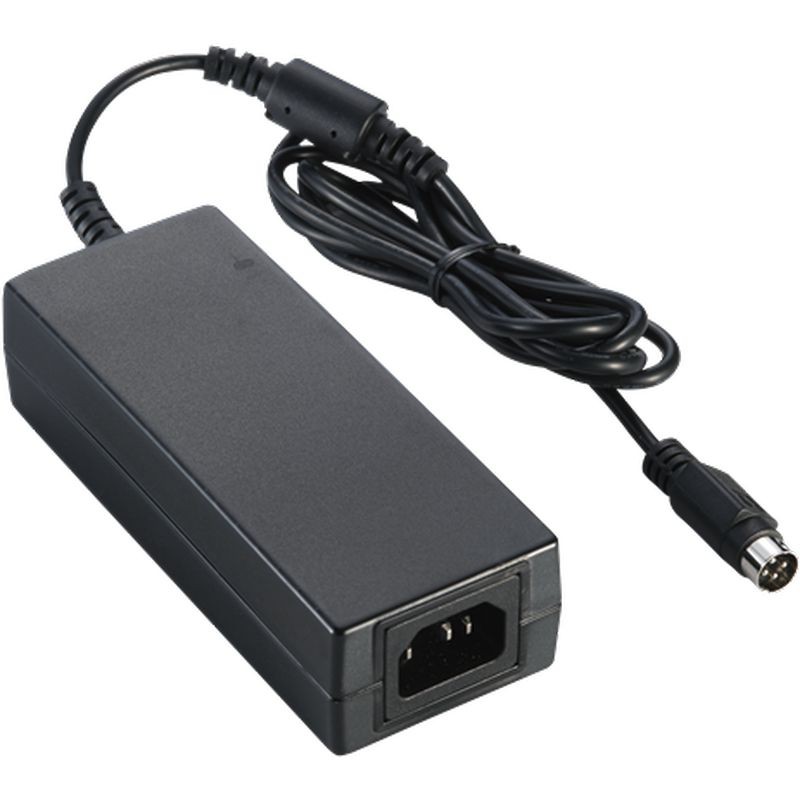

90W Series
Information
ATS090A1-□XXX
XXX = O/P Voltage

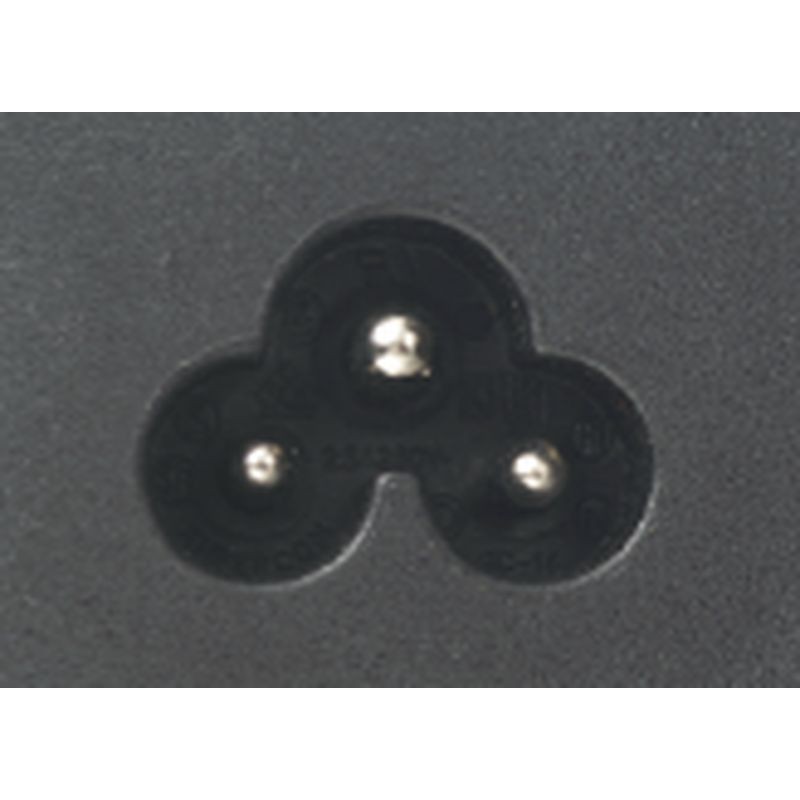

□ = G : C6

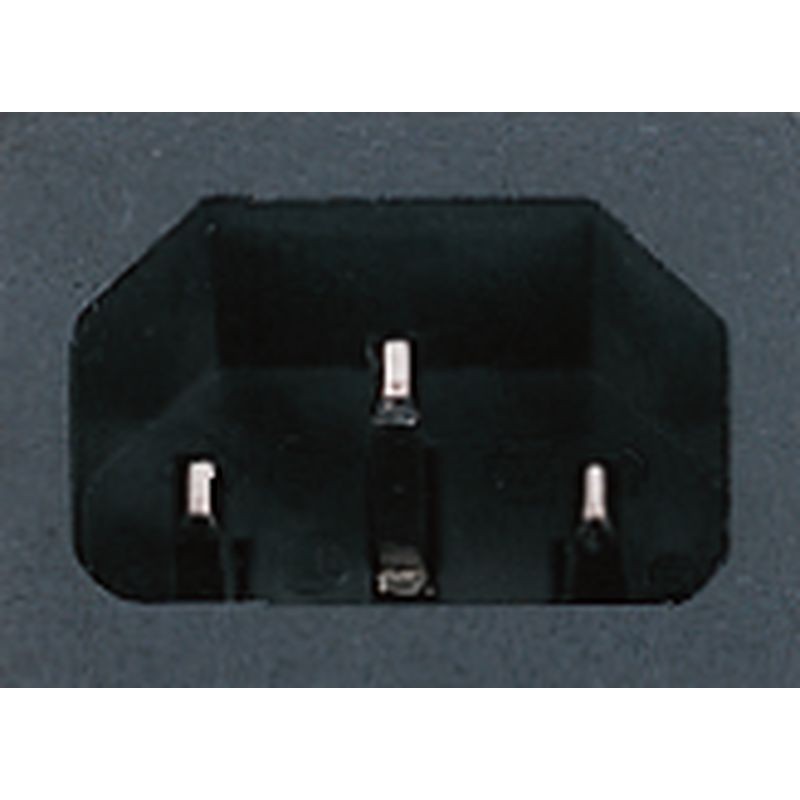

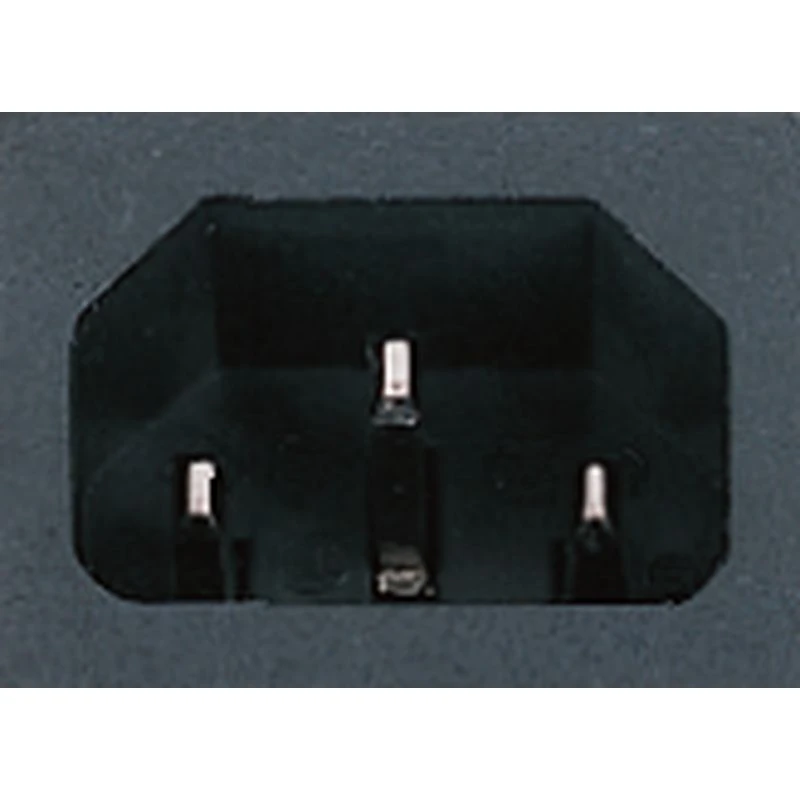

□ = P : C14
Features:
* IEC/EN/UL 62368-1 3rd Edition
* 100-240VAC Universal Input
* Regulated Output with Low Ripple Noise
* Safety Agency Requirements and EMI/EMS Certified
* Modified and Custom Design Available
* 1 Year Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt |
|---|---|---|---|
| ATS090A1-□120 | 12.0V | 7.50A | 90W |
| ATS090A1-□150 | 15.0V | 6.00A | 90W |
| ATS090A1-□160 | 16.0V | 5.63A | 90W |
| ATS090A1-□180 | 18.0V | 5.00A | 90W |
| ATS090A1-□190 | 19.0V | 4.74A | 90W |
| ATS090A1-□240 | 24.0V | 3.75A | 90W |
| ATS090A1-□480 | 48.0V | 1.88A | 90W |
| ATS090A1-□560 | 56.0V | 1.60A | 90W |
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240VAC |
| Line Frequency | 50-60Hz |
| Current | 1.2A Max. |
| Protection | Internal Primary Current Fuse |
| Configuration | IEC60320/ C6, C14 |
| Output | |
| Load Regulation | ±5% |
| Ripple & Noise | ≤1% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS with 50% Load Change |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥ 10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection |
| Safety Approvals | |
| CB / UL / cUL / FCC / GS / CE / UKCA / PSE / BSMI | |
| Electrical | |
| Topology | LLC |
| Dielectric Withstand | 3,000VAC Primary - Secondary |
| Earth Leakage Current | < 5mA |
| Efficiency | DoE Level VI, ErP Stage2 |
| EMC Standards | EN55032, EN61000-3-2,3, EN55035 |
| MTBF | 300,000 Calculated Hours min at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH, Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical | |
| Case Dimension | L 133.5 x W 53.5 x H 33 (mm) |
| Weight | 330g (Ref.) |
