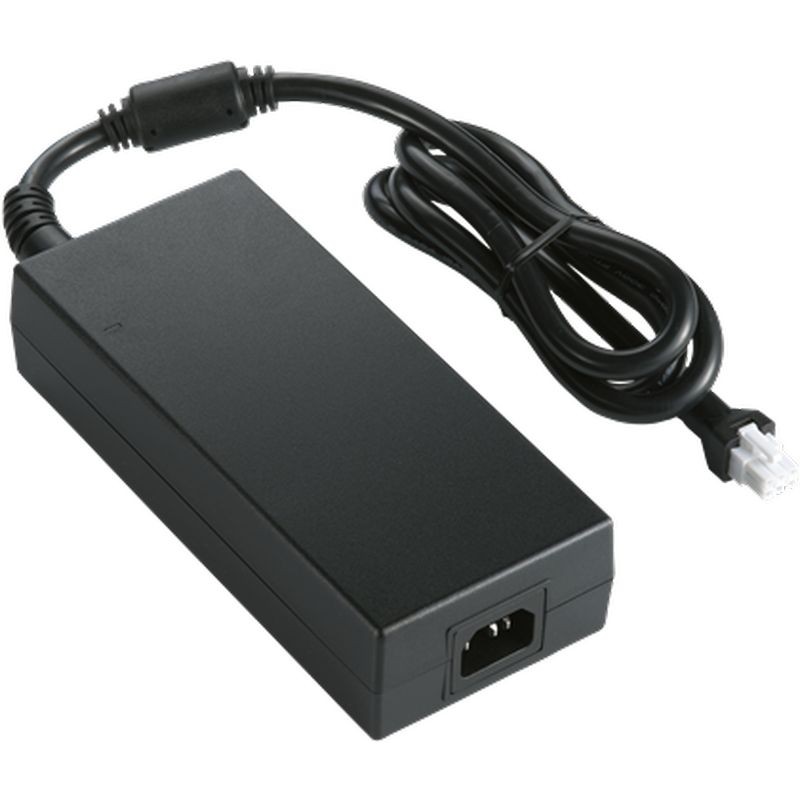

240W Series
Information
ATS240A1-PXXX
XXX = O/P Voltage
P : C14
Features:
* IEC/EN/UL 62368-1 3rd Edition
* 100-240VAC Universal Input
* Regulated Output with Low Ripple Noise
* Safety Agency Requirements and EMI/EMS Certified
* Modified and Custom Designs Available
* 1 Year Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt |
|---|---|---|---|
| ATS240A1-P120 | 12.0V | 20.00A | 240W |
| ATS240A1-P190 | 19.0V | 12.63A | 240W |
| ATS240A1-P240 | 24.0V | 10.00A | 240W |
| ATS240A1-P480 | 48.0V | 5.00A | 240W |
| ATS240A1-P560 | 56.0V | 4.28A | 240W |
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240 VAC |
| Line Frequency | 50-60Hz |
| Current | 3.3A Max. |
| Protection | Internal Primary Current Fuse |
| Configuration | IEC60320 / C14 |
| Output | |
| Load Regulation | ±5% (Typical) |
| Ripple & Noise | ≤1% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS with 50% Load Change |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥ 10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection/ Over Temperature Protection |
| Safety Approvals | |
| CB / UL / cUL / FCC / GS / CE / UKCA / PSE / BSMI | |
| Electrical | |
| Topology | LLC |
| Dielectric Withstand | 3,000VAC Primary - Secondary |
| Earth Leakage Current | < 5mA |
| Efficiency | DoE Level VI & ErP Stage 2 |
| EMC Standards | EN55032, EN61000-3-2,3, EN55035 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH, Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical | |
| Case Dimension | L 183.2 x W 81 x H 42.3 (mm) |
| Weight | 860g (Ref.) |
