Home> Products>I.T.E. Power Supply>Desktop Type

Product

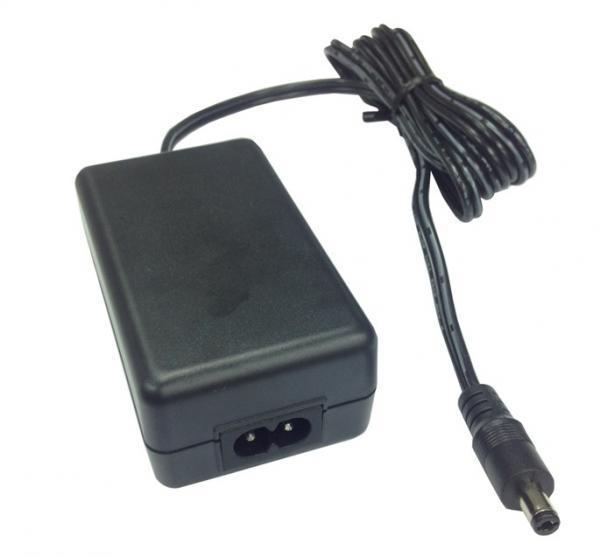

24 Watt Series - Desktop Type

24 Watt Series - Desktop Type

24 Watt Series - Desktop Type

Product ID: ATS024T-□XXX

XXX = O/P Voltage

□ = P : C6 / C14
□ = A : C8

Download Catalogue Download Now !

Download Now !

Features:

* IEC/EN/UL 62368-1
* 100-240VAC Universal Input
* Regulated Output with Low Ripple Noise
* Safety Agency Requirements and EMI/EMS Certified
* Modified and Custom Design Available
* 1 Year Warranty

Model	O/P Voltage	O/P Current	Watt
ATS024T-□050	5.0V	4.0A	20.00W
ATS024T-□060	5.9V	3.5A	20.65W
ATS024T-□061	5.9V	4.0A	23.60W
ATS024T-□070	7.0V	3.0A	21.00W
ATS024T-□075	7.5V	3.0A	22.50W
ATS024T-□090	9.0V	2.5A	22.50W
ATS024T-□120	12.0V	2.0A	24.00W
ATS024T-□150	15.0V	1.6A	24.00W
ATS024T-□240	24.0V	1.0A	24.00W
ATS024T-□480	48.0V	0.5A	24.00W
Input
Voltage	100-240 VAC
Line Frequency	50-60Hz
Current	0.58A Max.
Protection	Internal Primary Current Fuse

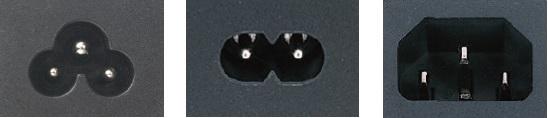

Configuration	IEC60320/ C6, C8, C14
Output
Load Regulation	± 5% (Typical)
Ripple & Noise	2% Vp-p Max. for Output Voltage @ Full Load
Transient Response	0.5mS for 50% Load Change Typical
Hold-up Time	10mS @ Full Load
Protection	Short Circuit Protection/ Over Voltage Protection/ Over Current Protection
Safety Approvals
CB / UL / cUL / FCC / GS / CE / PSE / BSMI / CCC / RCM / LPS
Electrical
Topology	Switchig Flyback
Dielectric Withstand	3000 VAC Primary - Secondary
Leakage Current	0.25mA @ 2Pin / 3.5mA @ 3Pin
Efficiency	DoE Level VI, ErP Stage 2, CoC Tier 2
EMC Standards	EN55032
	EN61000-3-2,3
	EN55035
MTBF	300,000 Calculated Hours at 25°C, by Telcordia SR-332
Environmental
Operaturing Temperature	-20 to +40°C
Storage Temperature	-20 to + 80°C
Relative Humidity	Operating: 20 to 80% RH
	Storage: 10 to 90% RH
Cooling	Natural Convection Cooling
Mechanical
Case Dimension	C6 & C14 : L 100 x W 50 x H 33 (mm)
Case Dimension	C8 : L 88 x W 50 x H 34 (mm)
Weight	166g (Ref.)

Order Information:

Minimum Order: Negotiable
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: HK
