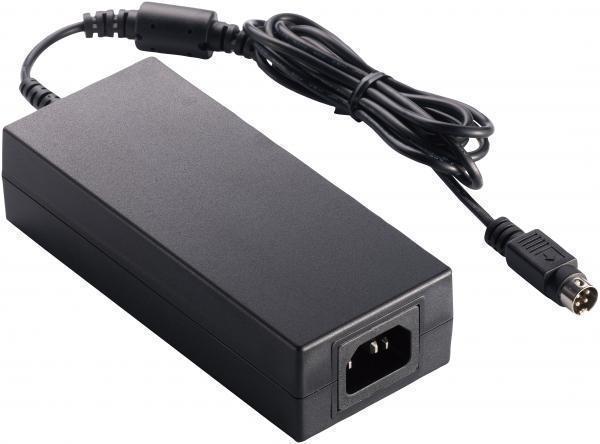

(NEW) 120 Watt Series - Desktop Type
Product ID: ATS120A1-PXXX XXX = O/P Voltage

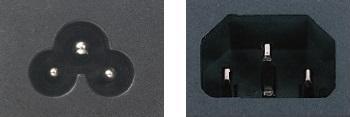

P : C6 / C14
Download Catalogue Features:
* IEC/EN/UL 62368-1 3rd Edition * 100-240VAC Universal Input * Regulated Output with Low Ripple Noise * Safety Agency Requirements and EMI/EMS Certified * Modified and Custom Design Available * 1 Year Warranty
Model
O/P Voltage
O/P Current
Watt
ATS120A1-P120
12.0V
9.00A
108W
ATS120A1-P150
15.0V
8.00A
120W
ATS120A1-P160
16.0V
7.50A
120W
ATS120A1-P190
19.0V
6.30A
120W
ATS120A1-P240
24.0V
5.00A
120W
ATS120A1-P480
48.0V
2.50A
120W
ATS120A1-P560
56.0V
2.14A
120W
Input
Voltage
100-240 VAC
Line Frequency
50-60Hz
Current
1.6A Max.
Protection
Internal Primary Current Fuse
Configuration
IEC60320/C6,C14
Output
Load Regulation
±5%(Typical)
Ripple & Noise
≤ 1% Vp-p @ Full Load
Transient (Dynamic) Response
0.5mS with 50% Load Change
Start-up Time
< 3,000mS
Hold-up time
≥ 10mS @ Full Load
Rise Time
< 50mS
Protection
Short Circuit Protection/ Over Voltage Protection/ Over Current Protection/ Over Temperature Protection
Safety Approvals
CB / UL / cUL / FCC / GS/ CE / UKCA / PSE / BSMI
Electrical
Topology
LLC
Dielectric Withstand
3,000VAC Primary - Secondary
Earth Leakage Current
< 5mA
Efficiency
DoE Level VI, ErP Stage 2
EMC Standards
EN55032
EN61000-3-2,3
EN55035
MTBF
300,000 Calculated Hours at 25°C, by Telcordia SR-332
Environmental
Operating Temperature
-20 to +40°C
Storage Temperature
-20 to +80°C
Operating Altitude
5,000M
Relative Humidity
Operating: 20 to 80% RH
Storage: 10 to 90% RH
Cooling
Natural Convection Cooling
Mechanical
Case Dimension
L 140.5 x W 60 x H 35 (mm)
Weight
390g (Ref.)
Order Information:
Minimum Order: Negotiable
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: HK
