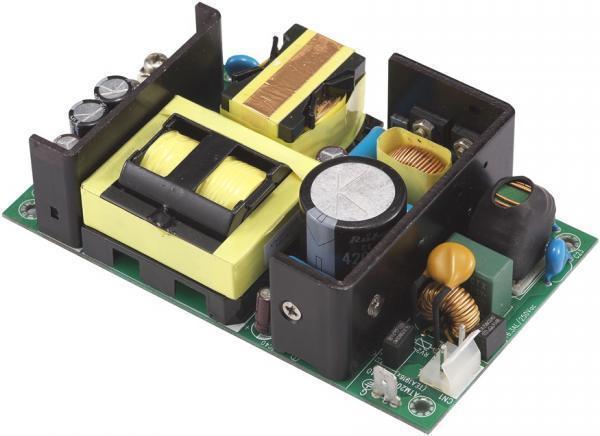

I.T.E. / Medical Open Frame Power Supply 200 Watt Series

I.T.E. / Medical Open Frame Power Supply 200 Watt Series
Product ID: ATM200T-FXXX

XXX = O/P Voltage

Download Catalogue Download Now !

* IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.2)
* Means of Protection: 2 X MOPP
* Touch Current: < 100µA
* IEC 62368-1
* 100-240VAC Universal Input
* Regulated Output with Low Ripple Noise
* Modified and Custom Design Available
* 2 Years Warranty


Model O/P Voltage O/P Current Watt
ATM200T-F120 12.0V 16.0A 192W
ATM200T-F190 19.0V 10.5A 200W
ATM200T-F240 24.0V   8.3A 200W
ATM200T-F360 36.0V   5.5A 200W
ATM200T-F480 48.0V   4.2A 200W
Voltage 100-240 VAC
Line Frequency 50-60Hz
Current 2.5A - 0.9A
Protection Internal Primary Current Fuse
Load Regulation ± 5% (Typocal)
Ripple & Noise 1% Vp-p Max. for Output Voltage@ Full Load
Transient Response 0.5mS for 50% Load Change Typical
Hold-up Time 10mS min. @ Full Load
Protection Short Circuit Protection/ Over Voltage Protection/ Over Current Protection/ Over Temperature Protection
Safety Approvals
CB / UL / cUL / T-mark(TÜV)
Topology LLC
Dielectric Withstand 4000 VAC Primary - Secondary
Touch Current  < 100µA
Efficiency Meet DoE Level VI, ErP Stage 2
MTBF 300,000 Calculated Hours at 25°C, by Telcordia SR-332
Operating Temperature -20 to +50°C
Storage Temperature -20 to +80°C
Relative Humidity Operating: 20 to 80% RH
Storage: 10 to 90% RH
Cooling Natural Convection Cooling
Dimension  L 127 x W 76 x H 38 (mm) (Ref.)
5" x 3" x 1.5" (inch)
Weight 360g (Ref.)
Order Information:
  • Minimum Order: Negotiable
  • OEM/ODM Product, Branded Product, Buyer's Label Offered
  • FOB: HK
