Open Frame AC/DC Power Supply

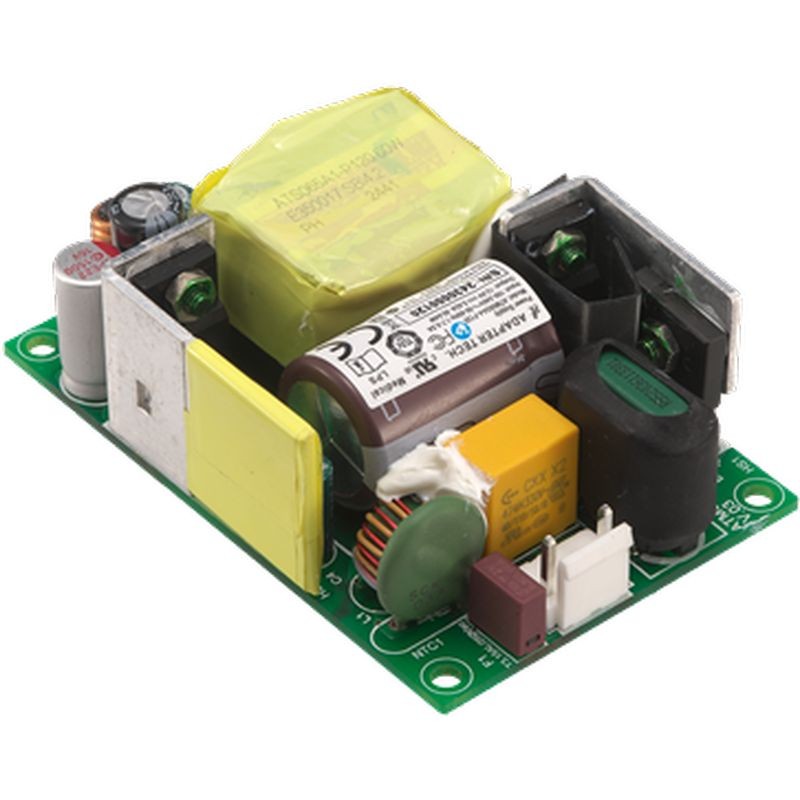

ATM065A4-F Open Frame AC/DC Power Supply

The ATM065A4-F series is a compact open frame AC/DC power supply designed for electronic systems that require stable, regulated DC power within a flexible internal configuration. This power module is ideal for OEMs and equipment designers who need to embed a reliable power source directly into control cabinets, embedded devices, or industrial platforms where space and airflow are managed internally.

Developed to meet stringent safety and performance standards, the ATM065A4-F combines dependable power delivery with engineering versatility, making it a practical choice for both professional and industrial applications.

Designed for Reliable Operation

This open frame AC/DC power supply delivers consistent voltage with low ripple noise, helping connected components maintain stable operation even under variable load conditions. Built-in protections against electrical anomalies such as overcurrent, overvoltage, and short-circuits enhance system reliability and protect sensitive electronics over long periods of use.

Its open frame layout allows easy integration onto circuit boards or within system enclosures, offering flexibility without the bulk of external housings.

Applications and Use Cases

The ATM065A4-F series is well suited for power integration in a variety of systems, including:

• Embedded control units and automation modules
• Communication and networking subsystems
• Industrial measurement and monitoring equipment
• Laboratory or diagnostic setups that require internal DC power

These scenarios benefit from a compact power source that supports continuous operation while preserving board space and enabling efficient thermal design.

Integration and Customization

The open frame design provides flexibility for system layout, allowing engineers to optimize board space and cooling strategies. OEM customers can request specific output connector arrangements, cable options, and integration guidance to ensure a seamless fit within their hardware platforms.

Detailed technical documentation, including performance notes and safety compliance information, is available to support integration efforts.

Support and Warranty

The ATM065A4-F comes with a two-year warranty and dedicated technical support resources to help with product selection, system integration, and troubleshooting. Datasheets and manuals are available for download to assist engineers throughout the design and certification process.

FAQ

Q1: What is an open frame AC/DC power supply?
A1: An open frame AC/DC power supply is built without an external enclosure, allowing it to be integrated directly into system boards or equipment enclosures where internal airflow and space are managed by the host design.

Q2: What devices can use the ATM065A4-F series?
A2: It is suitable for embedded control systems, communication hardware, industrial monitoring systems, and other electronics needing a compact internal power module.

Q3: How does low ripple noise benefit connected equipment?
A3: Low ripple noise helps maintain stable voltage output, reducing electrical interference and improving the performance of sensitive electronics.

Q4: Is technical support available for integration?
A4: Yes. Technical documentation and support are provided, including guidance on connector configuration and system integration.
