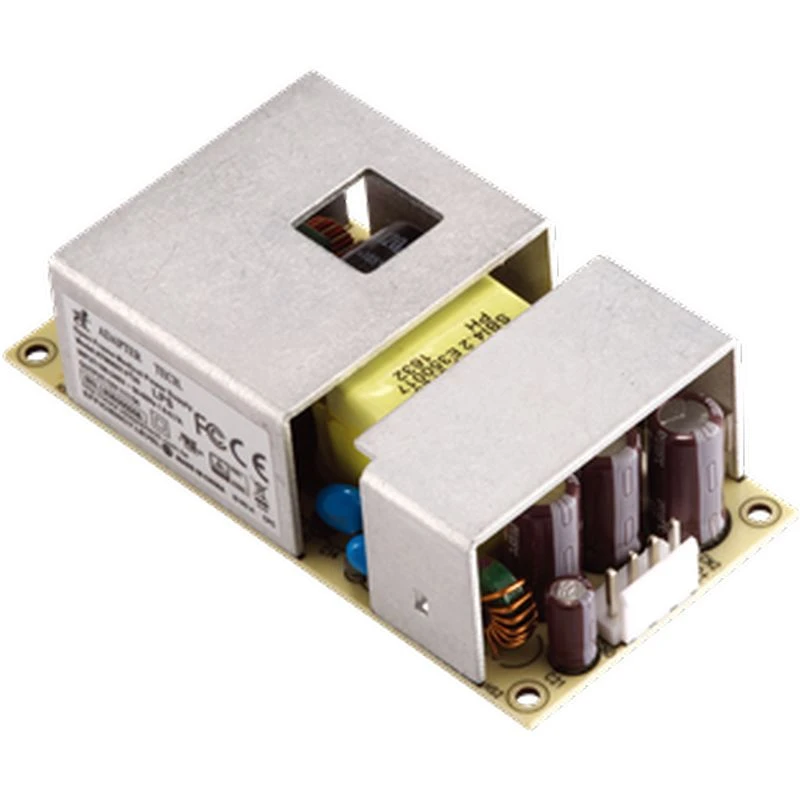

65W 2"x 4" Series (Medical&I.T.E.)
Information
ATM065T-FXXX
XXX = O/P Voltage
Features:
* IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.2)
* EMC : IEC60601-1-2 (Edition 4.1)
* IEC/UL 62368-1
* Means of Protection: 2 X MOPP
* 100-240VAC Universal Input
* Regulated Output With Low Ripple Noise
* Modified and Custom Design Available
* 2 Years Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt |
|---|---|---|---|
| ATM065T-F120 | 12.0V | 5.00A | 60W |
| ATM065T-F150 | 15.0V | 4.34A | 65W |
| ATM065T-F180 | 18.0V | 3.62A | 65W |
| ATM065T-F190 | 19.0V | 3.43A | 65W |
| ATM065T-F240 | 24.0V | 2.71A | 65W |
| ATM065T-F480 | 48.0V | 1.36A | 65W |
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240 VAC |
| Line Frequency | 50-60Hz |
| Current | 1.6A - 0.7A |
| Protection | Internal Primary Current Fuse |
| Output | |
| Load Regulation | ± 5% (Typical) |
| Ripple & Noise | ≤1% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS for 50% Load Change Typical |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection |
| Safety Approvals | |
| Approvals | CB / UL / cUL / FCC / CE / T-mark (TÜV) |
| Electrical | |
| Topology | Switching Flyback |
| Dielectric Withstand | 4,000VAC Primary - Secondary |
| Touch Current (Patient) Leakage Current | <100µA |
| Efficiency | Meet DoE Level VI, ErP Stage 2 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +50°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical | |
| Dimension | L 102 x W 51 x H 31 (mm) (Ref.) 4" x 2" x 1.2" (inch) |
| Weight | 141g (Ref.) |
