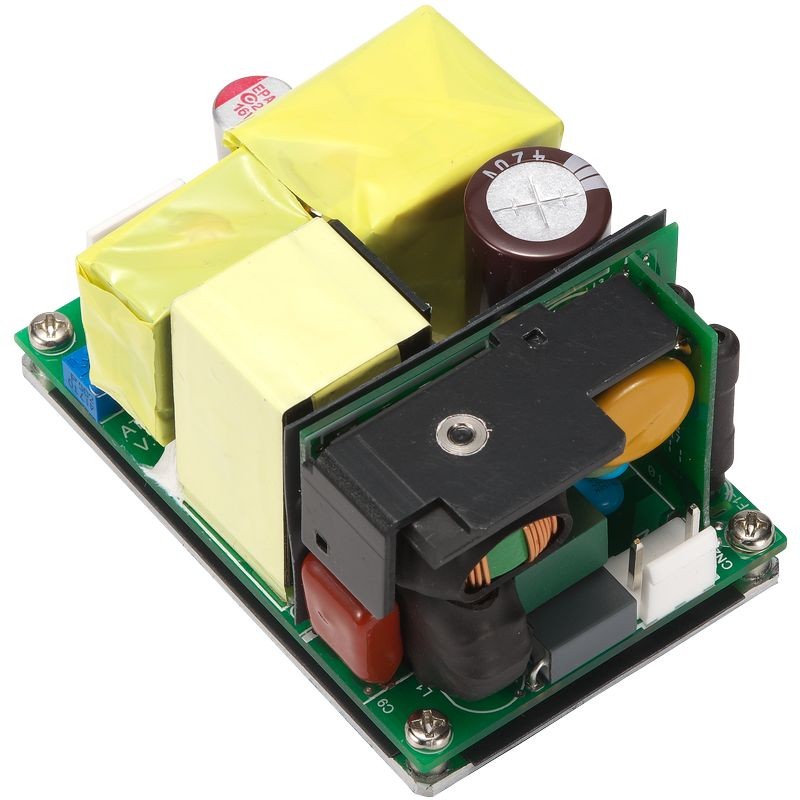

130W 2"x 3" Series (Medical&I.T.E.)
Information
ATM130A5-FXXX□
XXX = O/P Voltage
□ = Blank : Open Frame
X : Enclosed Type
Features:
* IEC/EN/ANSI/AAMI ES60601-1
* EMC : IEC60601-1-2
* Means of Protection: 2 X MOPP
* IEC/EN/UL 62368-1
* Meet IEC60335-1 & IEC61558-1/-2-16
* Class I / Class II Available
* Over Voltage Category III (OVC III)
* Regulated Output With Low Ripple Noise
* Modified and Custom Design Available
* 2 Years Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt | ||||
|---|---|---|---|---|---|---|---|
| Convection | With Fan | Convection | With Fan | ||||
| ATM130A5-F120□ | 12.0V | 8.33A | 10.83A | 99.96W | 129.96W | ||
| ATM130A5-F240□ | 24.0V | 4.17A | 5.42A | 100.10W | 130.10W | ||
| ATM130A5-F480□ | 48.0V | 2.09A | 2.71A | 100.30W | 130.10W | ||
| ATM130A5-F540□ | 54.0V | 1.86A | 2.41A | 100.40W | 130.10W | ||
| ATM130A5-F560□ | 56.0V | 1.80A | 2.33A | 100.80W | 130.50W | ||
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240VAC (Nominal) 90-264VAC (Range) |
| Line Frequency | 50-60Hz (Nominal) 47-63Hz (Range) |
| Current | 1.6A-0.7A |
| Protection | Internal Primary Current Fuse |
| Output | |
| Load Regulation | ± 3% (Typical) |
| Ripple & Noise | ≤1% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS for 50% Load Change Typical |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection/ Over Temperature Protection |
| Safety Approvals | |
| Approvals | CB / UL / cUL/ FCC/ CE/ T-mark (TÜV) / CCC |
| Electrical | |
| Topology | LLC |
| Dielectric Withstand | 4,000VAC Primary - Secondary |
| Touch Current (Patient) Leakage Current | <100µA |
| Earth Leakage Current | <5mA |
| Efficiency | Meet DoE Level VII, ErP Stage 2 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +50°C |
| Storage Temperature | -20 to +80°C (Packing Condition) |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH (Non-condensing) Storage: 10 to 90% RH (Packing Condition) |
| Cooling | 100W with Convection Cooling 130W with Forced Cooling |
| Mechanical | |
| Dimension | Open Type : L 76.2 × W 50.8 × H 28 (mm) 3" x 2" x 1.11" |
| Enclosed Type : L 95 × W 62 × H 37 (mm) 3.74" x 2.45" x 1.46" |
|
| Weight | Open Type: 120g (Ref.) |
| Enclosed Type : 210g (Ref.) | |
