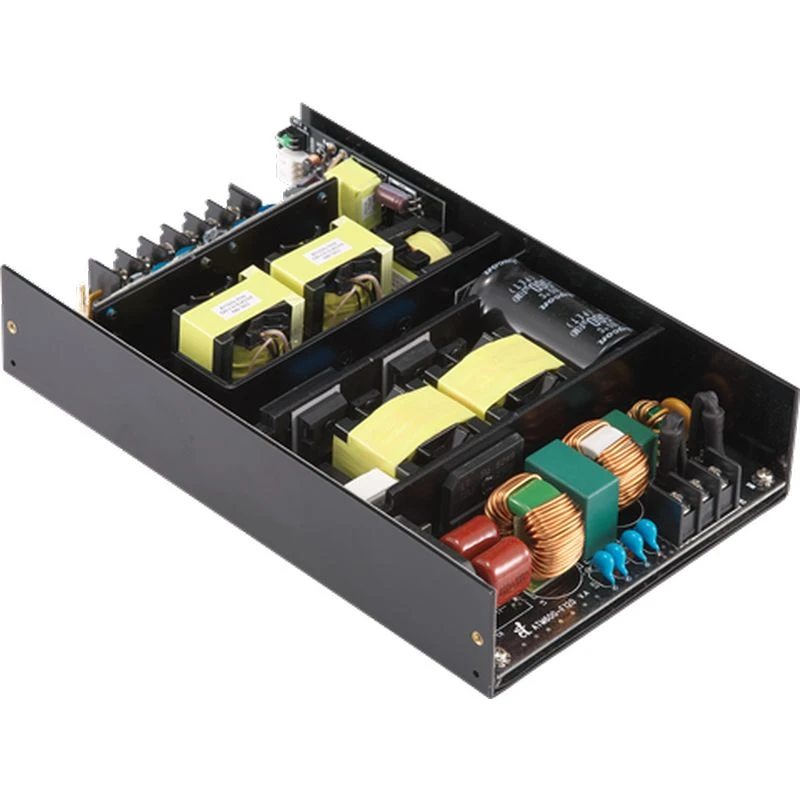

600W 5"x 8" Series (Medical&I.T.E.)
Information
ATM600-FXXX
XXX = O/P Voltage
Features:
* IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.2)
* EMC : IEC60601-1-2 (Edition 4.1)
* Means of Protection : 2 X MOPP
* IEC/EN/UL 62368-1
* 100-240VAC Universal Input
* Standby 5V / 1A
* On & Off Remote Control
* Efficiency up to 95%
* Regulated Output With Low Ripple Noise
* Modified and Custom Design Available
* 2 Years Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Standby | O/P For Fan | Watt |
|---|---|---|---|---|---|
| ATM600-F120 | 12.0V | 50.0A | 5V / 1A | 12V / 0.6A | 612W |
| ATM600-F240 | 24.0V | 25.0A | 5V / 1A | 12V / 0.6A | 612W |
| ATM600-F360 | 36.0V | 16.6A | 5V / 1A | 12V / 0.6A | 612W |
| ATM600-F480 | 48.0V | 12.5A | 5V / 1A | 12V / 0.6A | 612W |
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240 VAC |
| Line Frequency | 50-60Hz |
| Current | 7.0A - 2.7A |
| Protection | Internal Primary Current Fuse |
| Output | |
| Load Regulation | ± 5% (Typical) |
| Ripple & Noise | ≤1% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS for 50% Load Change Typical |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection/ Over Temperature Protection |
| Safety Approvals | |
| Approvals | CB / UL / cUL / FCC / CE / T-mark |
| Electrical | |
| Topology | LLC |
| Dielectric Withstand | 4,000VAC Primary - Secondary |
| Touch Current (Patient) Leakage Current | < 100µA |
| Earth Leakage Current | < 5mA |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +50°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical | |
| Dimension | L 203 x W 127 x H 40 (mm) 8" x 5" x 1.6" (inch) |
| Weight | 1,100g (Ref.) |
