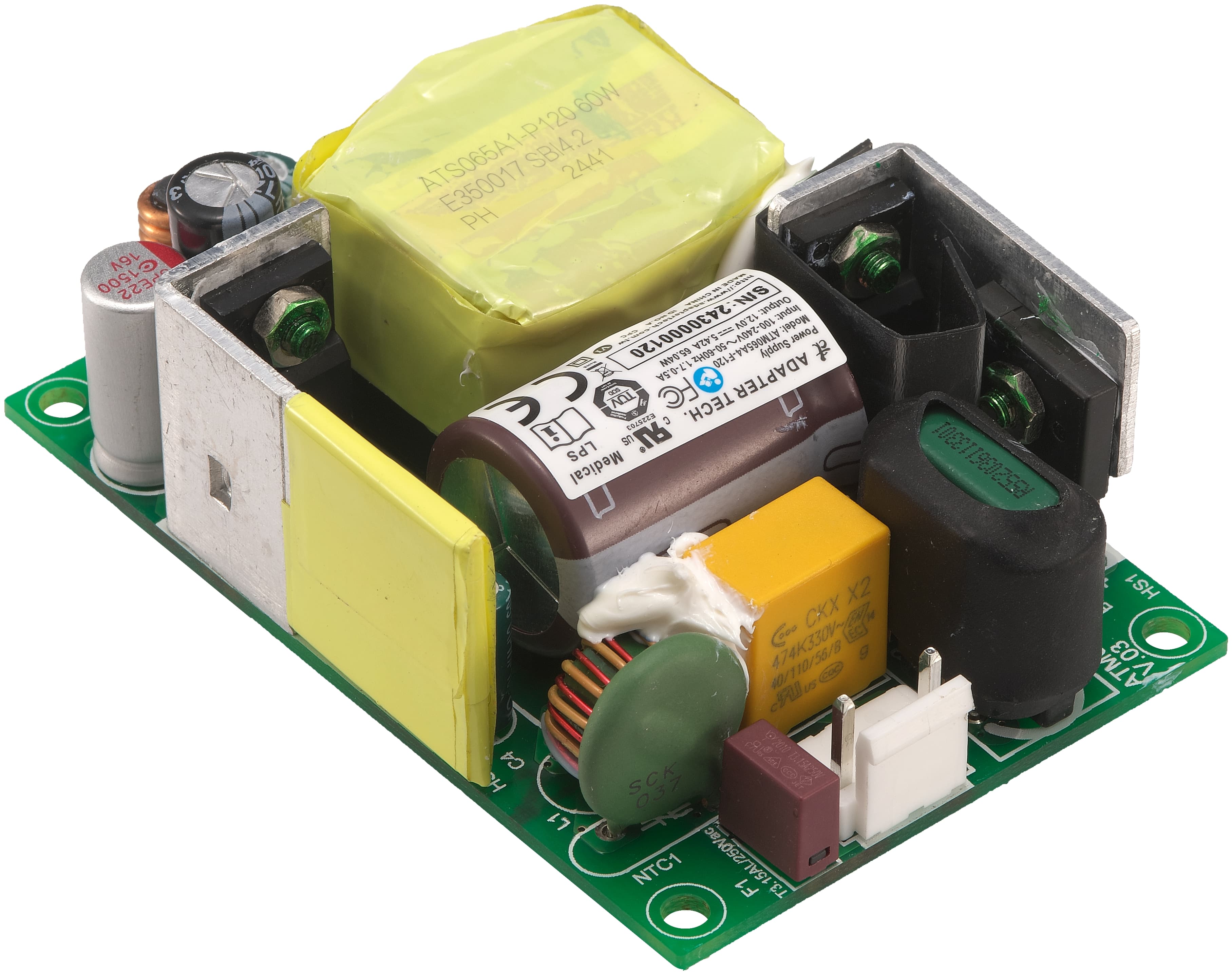

(NEW)Medical Open Frame Power Supply 65 Watt Series

(NEW)Medical Open Frame Power Supply 65 Watt Series

Product ID: ATM065A4-FXXX

XXX = O/P Voltage

Download Catalogue Download Now !

Download Now !

Features:

* IEC/UL 62368-1 3rd Edition
* Meet IEC 60335-1
* 100-240VAC Universal Input
* Regulated Output With Low Ripple Noise
* Modified and Custom Design Available
* 1 Year Warranty

Model	O/P Voltage	O/P Current	Watt
ATM065A4-F050	5.0V	10.00A	50W
ATM065A4-F090	9.0V	7.00A	63W
ATM065A4-F120	12.0V	5.42A	65W
ATM065A4-F150	15.0V	4.34A	65W
ATM065A4-F190	19.0V	3.43A	65W
ATM065A4-F240	24.0V	2.71A	65W
ATM065A4-F480	48.0V	1.36A	65W
Input
Voltage	100-240 VAC
Line Frequency	50-60Hz
Current	0.17-0.5A
Protection	Internal Primary Current Fuse
Output
Load Regulation	± 5% (Typocal)
Ripple & Noise	≤ 1% Vp-p @ Full Load
Transient(Dynamic) Response	0.5mS for 50% Load Change Typical
Start-up Time	< 3,000mS
Hold-up Time	≥ 10mS@ Full Load
Rise Time	< 50mS
Protection	Short Circuit Protection/ Over Voltage Protection/ Over Current Protection
Safety Approvals
CB / UL / cUL / FCC / CE
Electrical
Topology	Switching Flyback
Dielectric Withstand	4,000VAC Primary - Secondary
Touch Current(Patient) Leakage Current	< 100μA
Efficiency	Meet DoE Level VI, ErP Stage 2
MTBF	300,000 Calculated Hours at 25°C, by Telcordia SR-332
Environmental
Operating Temperature	-20 to +50°C
Storage Temperature	-20 to +80°C
Operating Altitude	3,000M
Relative Humidity	Operating: 20 to 80% RH
Relative Humidity	Storage: 10 to 90% RH
Cooling	Natural Convection Cooling
Mechanical
Dimension	L 76 × W 51 × H 24 (mm)
Dimension	3" x 2" x 1.1" (inch)
Weight	100g (Ref.)

Order Information:

Minimum Order: Negotiable
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: HK
