(NEW) USB-C P.D. 65W Adapter - Wall Mount Type

(NEW) USB-C P.D. 65W Adapter - Wall Mount Type (NEW) USB-C P.D. 65W Adapter - Wall Mount Type

Product ID: ATN065A3-W200□

□ = U : Foldable US Plug / Available with EU/UK Changeable Plug

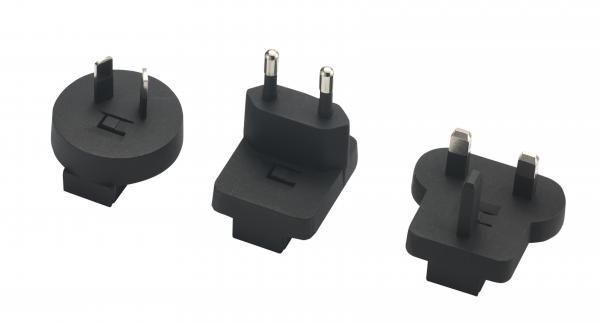

□ = V : Unfoldable Plug with US/EU/UK/AU Changeable Plug


Download Catalogue Download Now !
Features:

* IEC/EN/ANSI/AAMI ES 60601-1 (ED 3.2)
* EMC: IEC60601-1-2 (ED 4.1)
* IEC/EN/UL 62368-1 3rd Edition
* Means of Protection: 2 X MOPP
* Touch Current: < 100μA
* 100-240VAC Universal Input
* P.D. 3.0 / QC 4.0+ / QC4.0
* Regulated Output with Low Ripple Noise
* Safety Agency Requirements and EMI/EMS Certified
* Modified and Custom Design Available
* 2 Years Warranty



Model O/P Voltage O/P Current Watt
ATN065A3-W200□   5.0V 3.00A 15W
  9.0V 3.00A 27W
12.0V 3.00A 36W
15.0V 3.00A 45W
20.0V 3.25A 65W
Input
Voltage 100-240 VAC
Line Frequency 50-60Hz
Current 1.6A-0.7A
Protection Internal Primary Current Fuse
Configuration U for US Plug / AC Plug Changeable
Output
Load Regulation ± 5% (Typical)
Ripple & Noise 200m Vp-p Max. for Output Voltage @ Full Load
Transient Response 0.5mS for 50% Load Change Typical
Hold-up Time 10mS @ Full Load
Protection Short Circuit Protection/ Over Voltage Protection/ Over Current Protection
Safety Approvals
For USA - CB / UL / cUL / FCC / PSE / BSMI
For Europe - CB / T-mark / CE / GS
For UK - CB / UKCA
Electrical
Topology Switching Flyback
Dielectric Withstand 4000 VAC Primary – Secondary
Touch Current < 100µA
Efficiency Meet DoE Level VI, ErP Stage 2, CoC Tier 2
EMC Standards EN55011
EN61000-3-2,3
EN61000-4-2,3,4,5,6,8,11
MTBF 300,000 Calculated Hours at 25°C, by Telcordia SR-332
Environmental
Operating Temperature -20 to +40°C
Storage Temperature -20 to +80°C
Relative Humidity Operating: 20 to 80% RH
Storage: 10 to 90% RH
Cooling Natural Convection Cooling
Mechanical
Case Dimension L 53.5 x W 31.5 x H 58 (mm)
Weight 180g (Ref.)
Order Information:
  • Minimum Order: Negotiable
  • OEM/ODM Product, Branded Product, Buyer's Label Offered
  • FOB: HK
