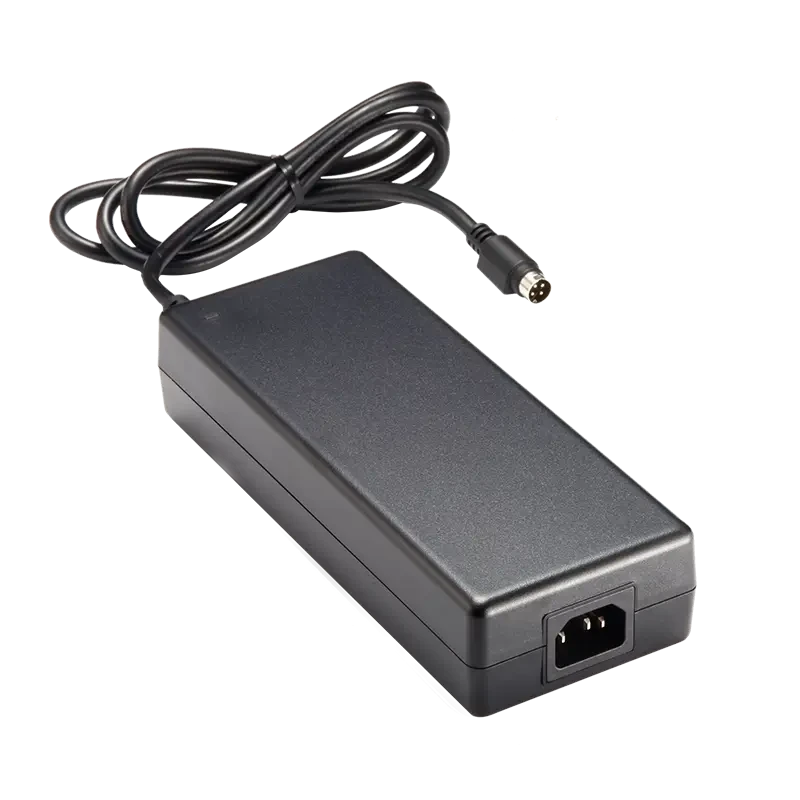

200W Series
Information
ATM200T-□XXX
XXX = Output Voltage
□= P : C14

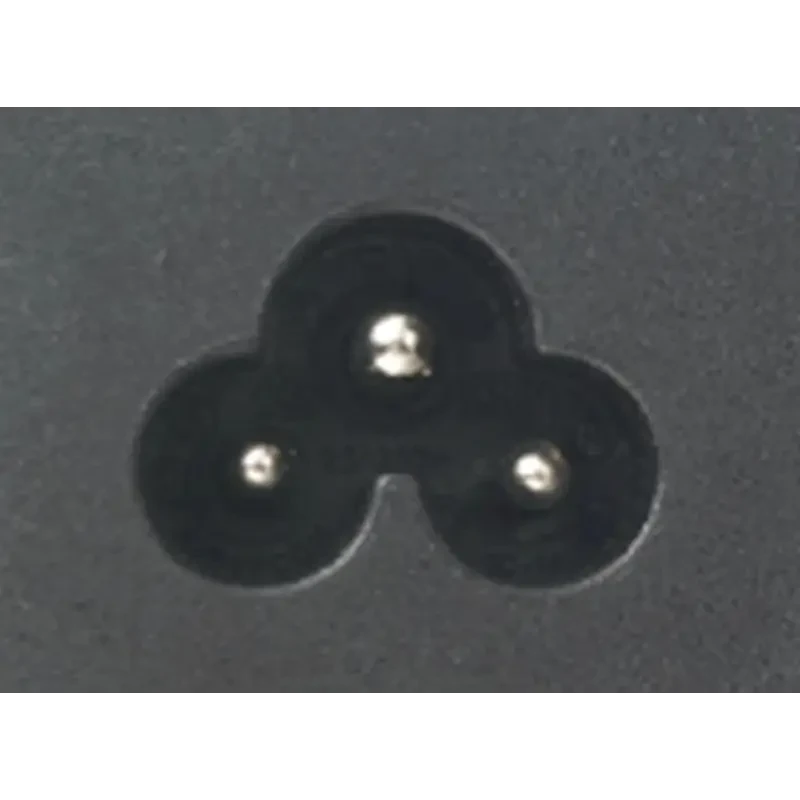

A : C8 / C18
Features:
* IEC/EN/ANSI/AAMI ES60601-1
* EMC: IEC60601-1-2
* Protection: 2 X MOPP
* Touch current: < 100µA
* Regulated output with low ripple and noise
* Meets safety agency requirements and is EMI/EMS certified
* Modification and customized design available
* 2-year warranty
Output Specifications
| Model | Output Voltage | Output Current | Wattage |
| ATM200T-□120 | 12.0V | 16.00A | 192W |
| ATM200T-A150 | 15.0V | 13.00A | 195W |
| ATM200T-□180 | 18.0V | 11.00A | 198W |
| ATM200T-□190 | 19.0V | 10.50A | 200W |
| ATM200T-□240 | 24.0V | 8.30A | 200W |
| ATM200T-□480 | 48.0V | 4.17A | 200W |
Specifications
| Input | |
| Voltage | 100-240VAC(Nominal), 90-264VAC(Range) |
| Frequency | 50-60Hz(Nominal), 47-63(Range) |
| Current | 2.4A-1.0A |
| Protection | Internal primary current fuse |
| Connector Configuration | IEC60320 / C8, C14, C18 |
| Output | |
| Load Regulation | ±5% (Typical) |
| Ripple and Noise | ≤1% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS, at 50% load change |
| Hold-up Time | 10mS @ Full Load |
| Protection | Short-Circuit Protection / Overvoltage Protection / Overcurrent Protection / Overtemperature Protection |
| Safety Certifications | |
| CB / UL / cUL / FCC / CE / TUV / PSE | |
| Electrical | |
| Topology | LLC |
| Dielectric Strength | 4,000VAC Primary - Secondary |
| Ground Leakage Current | < 100µA |
| Efficiency | Complies with DoE Level VI, ErP Stage 2 |
| EMC Standards | EN55011 |
| EN61000-3-2,3 | |
| EN61000-4-2,3,4,5,6,8,11 | |
| MTBF (Mean Time Between Failures) | 300,000 hours calculated according to Telcordia SR-332 at 25°C |
| Environment | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C (in packaging) |
| Relative Humidity | Operating: 20 to 80% RH (non-condensing) |
| Storage: 10 to 90% RH (in packaging) | |
| Cooling | Natural convection cooling |
| Mechanical | |
| Dimensions | Length 204 x Width 81 x Height 42.5 (mm) |
| Weight | 880g (approx.) |
