40W Series
Information
ATS040T-□XXX
XXX = O/P Voltage
□ = P : C6 / C14
□ = A : C8
Features:
* IEC/EN/UL 62368-1 3rd Edition
* 100-240VAC Universal Input
* Regulated Output with Low Ripple Noise
* Safety Agency Requirements and EMI/EMS Certified
* Modified and Custom Designs Available
* 1 Year Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt |
|---|---|---|---|
| ATS040T-□120 | 12.0V | 3.30A | 40W |
| ATS040T-□150 | 15.0V | 2.67A | 40W |
| ATS040T-□190 | 19.0V | 2.10A | 40W |
| ATS040T-□200 | 20.0V | 2.00A | 40W |
| ATS040T-□240 | 24.0V | 1.67A | 40W |
| ATS048T-A480 | 48.0V | 1.00A | 48W |
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240 VAC |
| Line Frequency | 50-60Hz |
| Current | 1A Max. / 1.2A Max. for ATS048T-A480 |
| Protection | Internal Primary Current Fuse |
| Configuration | IEC60320/ C6, C8, C14 |
| Output | |
| Load Regulation | ± 5% |
| Ripple & Noise | ≤ 2% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS with 50% Load Change |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥ 10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection |
| Safety Approvals | |
| Standards | CB / UL / cUL / FCC / GS / CE / UKCA / PSE / BSMI / CCC / RCM / LPS |
| Electrical | |
| Topology | Switching Flyback |
| Dielectric Withstand | 3,000VAC Primary - Secondary |
| Leakage Current | < 0.25mA @ 2Pin / < 5mA @ 3Pin |
| Efficiency | DoE Level VI, ErP Stage 2, CoC Tier 2 |
| EMC Standards | EN55032, EN61000-3-2,3, EN55035 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH, Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical | |
| Case Dimension | L100 x W50 x H33 (mm) |
| Weight | 200g (Ref.) |
Product Inquiry
| Image | Product Name |
|---|---|
|

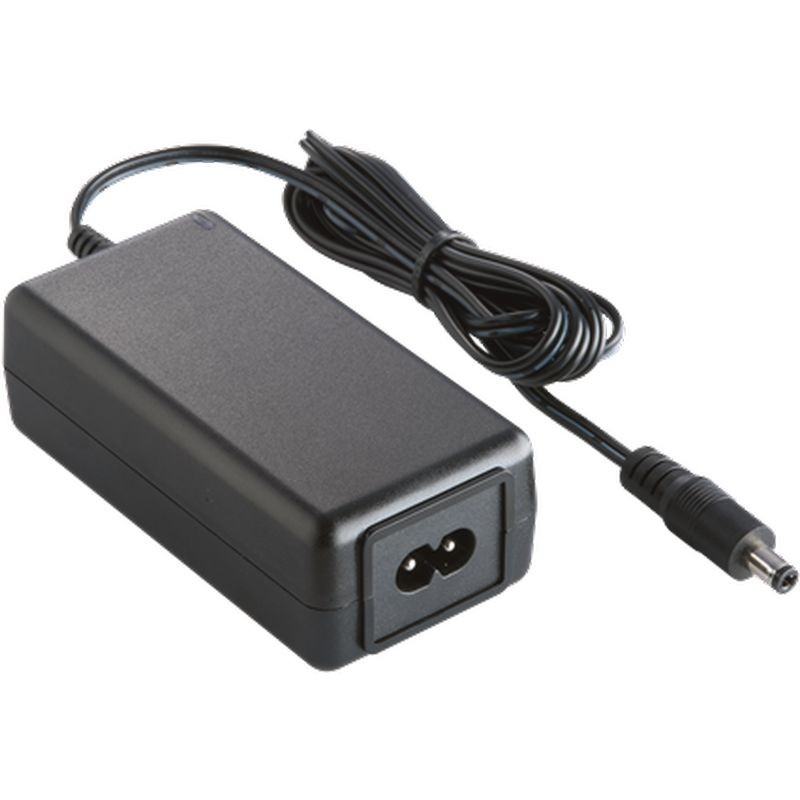

40W Series ATS040T-P/A |
