2 MOPP Medical AC Adapter
Information
ATM006T-WXXX□
XXX = O/P Voltage

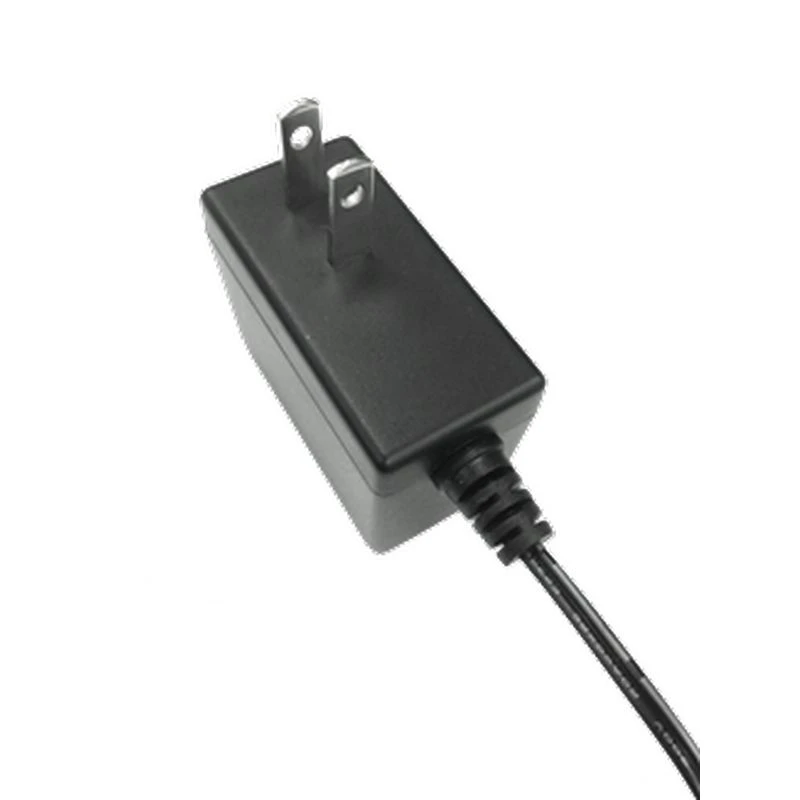

□ = U : US Plug

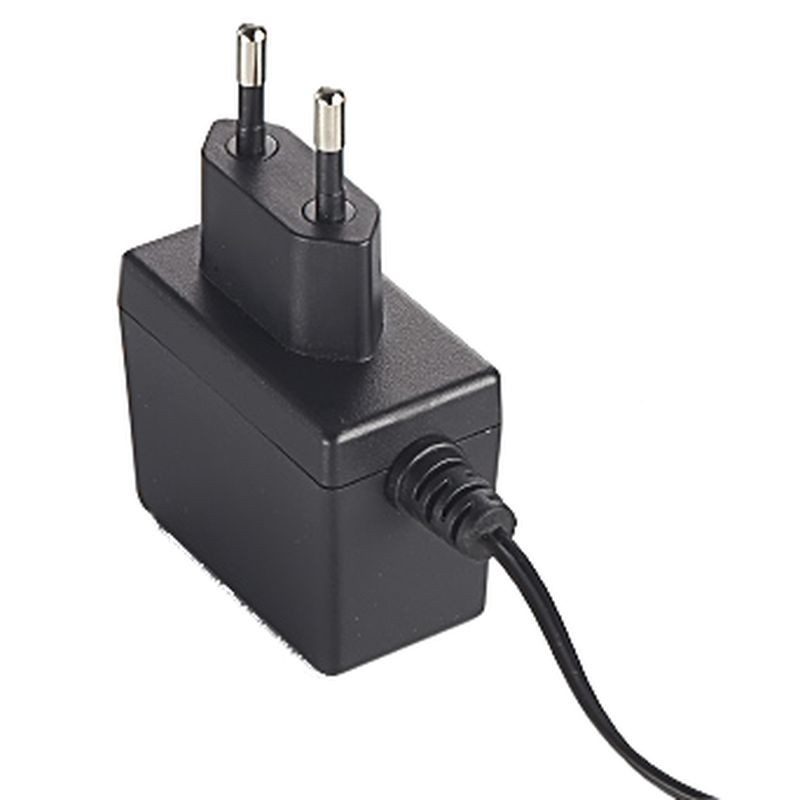

□ = E : EU Plug
Features:
* IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.2)
* EMC : IEC60601-1-2 (Edition 4.1)
* 2 MOPP medical AC adapter design
* 100-240VAC Universal Input
* Regulated Output With Low Ripple Noise
* Safety Agency Requirements and EMI/EMS Certified
* Modified and Custom Design Available
* 2 Years Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt |
|---|---|---|---|
| ATM006T-W050□ | 5.0V | 1.2A | 6.0W |
| ATM006T-W060□ | 6.0V | 1.0A | 6.0W |
| ATM006T-W075□ | 7.5V | 1.0A | 7.5W |
| ATM006T-W090□ | 9.0V | 0.7A | 6.3W |
| ATM006T-W120□ | 12.0V | 0.5A | 6.0W |
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240 VAC |
| Line Frequency | 50-60Hz |
| Current | 0.19A - 0.14A |
| Protection | Internal Primary Current Fuse |
| Configuration | U for US Plug, E for EU Plug |
| Output | |
| Load Regulation | ± 5% (Typical) |
| Ripple & Noise | ≤ 2% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS with 50% Load Change |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥ 10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection |
| Safety Approvals | |
| For USA | CB / UL / cUL / FCC / PSE |
| For Europe | CB / T-mark / CE |
| Electrical | |
| Topology | Switching Flyback |
| Dielectric Withstand | 4,000VAC Primary - Secondary |
| Touch Current (Patient) | < 100µA |
| Leakage Current | < 100µA |
| Efficiency | Meet DoE Level VI, ErP Stage 2, CoC Tier 2 |
| EMC Standards | EN55011, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 3,000M |
| Relative Humidity | Operating: 20 to 80% RH, Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical | |
| Case Dimension | U - L 56 x W 28 x H 59 (mm) E - L 56 x W 28 x H 79 (mm) |
| Weight | U: 68g / E: 80g (Ref.) |
Overview
ATM006T‑W Series 2 MOPP Medical AC Adapter
The ATM006T‑W series is a 6W wall-mount 2 MOPP medical AC adapter designed to provide safe, reliable, and efficient external power for medical and healthcare devices. Engineered to meet stringent IEC/EN 60601-1 medical safety standards, this adapter ensures both patient and device protection in professional clinical environments. Its compact wall-mount design allows integration into equipment while maintaining full compliance with medical electrical safety requirements.
With universal AC input and multiple connector options, the ATM006T‑W is suitable for global deployment, providing manufacturers with a flexible solution for a wide range of low-power medical devices.
Reliable and Safe Performance
The ATM006T‑W delivers regulated DC output with low ripple, supporting stable operation for sensitive medical electronics. Integrated protections—including overcurrent, overvoltage, short-circuit safeguards, and 2 MOPP isolation—help prevent hazards and ensure patient safety.
Its energy-efficient design minimizes standby power consumption, making it ideal for devices that remain continuously powered, such as monitoring systems, diagnostic tools, or small medical instruments.
Integration and Connectivity
This medical AC adapter supports standard DC output connectors with flexible cable options to match different device designs. The wall-mount format provides easy accessibility for maintenance or replacement, minimizing equipment downtime. The neutral, low-profile housing blends seamlessly into clinical, laboratory, or hospital environments.
Applications and Use Cases
The ATM006T‑W series is suitable for a wide range of low-power medical and healthcare applications:
- Patient monitoring devices
- Portable diagnostic equipment
- Clinical sensors and small medical instruments
- Laboratory or hospital electronics requiring continuous, safe power
These applications benefit from reliable operation, low electrical noise, and adherence to strict medical safety standards.
Support and Warranty
The ATM006T‑W comes with a one-year warranty. Technical support is available for product selection, integration, and troubleshooting. Customization options for DC connector type, cable length, and plug configuration are provided to meet project-specific requirements.
FAQ
Q1: What makes the ATM006T‑W a medical-grade adapter?
A1: This adapter meets IEC/EN 60601-1 standards and provides 2 MOPP isolation, ensuring patient and device safety in medical environments.
Q2: Can this adapter be used internationally?
A2: Yes, with universal AC input (100–240 VAC) and configurable plug options, it can be deployed globally.
Q3: What devices are compatible with this adapter?
A3: It is suitable for low-power medical devices such as patient monitors, diagnostic tools, clinical sensors, and small laboratory instruments.
Q4: Does the ATM006T‑W include protection features?
A4: Absolutely. It integrates protections against overcurrent, overvoltage, short circuits, and 2 MOPP electrical isolation to ensure safety and reliability.
Q5: Can I customize the connector or cable length?
A5: Yes, custom DC connector types, cable lengths, and plug options are available to fit your specific project requirements.
