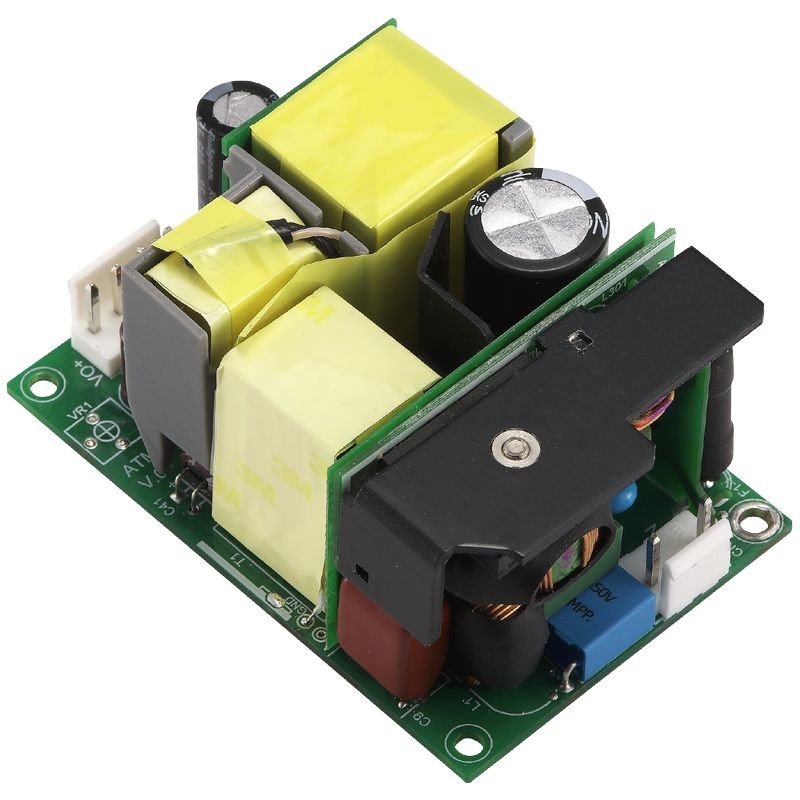

200W 2"x 3" Series (Medical&I.T.E.)
Information
ATM200A5-FXXX
XXX = O/P Voltage
Features:
* IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.2)
* EMC : IEC60601-1-2 (Edition 4.1)
* Means of Protection: 2 X MOPP
* IEC/EN/UL 62368-1
* Meet IEC60335-1 & IEC61558-1/-2-16
* 100-240VAC Universal Input
* 200W With Fan
* Class I / Class II Available
* Over Voltage Category III (OVC III)
* Regulated Output With Low Ripple Noise
* Modified and Custom Design Available
* 2 Years Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt | ||
|---|---|---|---|---|---|
| Convection | With Fan | Convection | With Fan | ||
| ATM200A5-F120□ | 12.0V | 12.50A | 16.67A | 150.0W | 200.00W |
| ATM200A5-F240□ | 24.0V | 6.25A | 8.34A | 150.0W | 200.16W |
| ATM200A5-F480□ | 48.0V | 3.13A | 4.17A | 150.2W | 200.20W |
| ATM200A5-F540□ | 54.0V | 2.78A | 3.71A | 150.1W | 200.30W |
| ATM200A5-F560□ | 56.0V | 2.68A | 3.58A | 150.1W | 200.50W |
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240VAC |
| Line Frequency | 50-60Hz |
| Current | 2.55-1.15A |
| Protection | Internal Primary Current Fuse |
| Output | |
| Load Regulation | ± 5% (Typical) |
| Ripple & Noise | ≤1% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS for 50% Load Change Typical |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection/ Over Temperature Protection |
| Safety Approvals | |
| CB / UL / cUL / FCC / CE / T-mark | |
| Electrical | |
| Topology | LLC |
| Dielectric Withstand | 4,000VAC Primary - Secondary |
| Touch Current (Patient) Leakage Current | <100µA |
| Earth Leakage Current | <5mA |
| Efficiency | Meet DoE Level VI, ErP Stage 2 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +50°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH Storage: 10 to 90% RH |
| Cooling | 150W with Convection Cooling 200W with Fan Cooling |
| Mechanical | |
| Dimension | Open Type : L 76.2 × W 50.8 × H 38.1 (mm) |
| Open Type : L 2" x W 3" x H1.6" (inch) | |
| Enclosed Type : L 95 × W 62 × H 44 (mm) | |
| Enclosed Type : L 3.74" x W 2.44" x H 1.73" (inch) | |
| Weight | Open Type : 175g (Ref.) |
| Enclosed Type : 265g (Ref.) | |
