Open Frame Switching Power Supply
Information
ATM210T-FXXX
XXX = O/P Voltage
Features:
* IEC/ANSI/AAMI ES60601-1 (Edition 3.1)
* Means of Protection : 2 X MOPP
* IEC 60950-1
* 100-240VAC Universal Input
* 210W With Fan
* Standby 5V / 2A
* On & Off Remote Control
* Regulated Output With Low Ripple Noise
* Modified and Custom Design Available
* 2 Years Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt | ||
|---|---|---|---|---|---|
| Convection | With Fan | Convection | With Fan | ||
| ATM210T-F120 | 12.0V | 12.50A | 16.70A | 160W | 210W |
| 5.0V | 2.0A | ||||
| ATM210T-F240 | 24.0V | 6.25A | 8.30A | 160W | 210W |
| 5.0V | 2.0A | ||||
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240VAC |
| Line Frequency | 50-60Hz |
| Current | 2.5A - 1A |
| Protection | Internal Primary Current Fuse |
| Output | |
| Load Regulation | ± 5% (Typical) |
| Ripple & Noise | ≤1% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS for 50% Load Change Typical |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection/ Over Temperature Protection |
| Safety Approvals | |
| Approvals | CB / UL / cUL / FCC / CE |
| Electrical | |
| Topology | LLC |
| Dielectric Withstand | 4,000VAC Primary - Secondary |
| Touch Current (Patient) Leakage Current | <100µA |
| Earth Leakage Current | <5mA |
| Efficiency | Meet DoE Level VI, ErP Stage 2 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +50°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH Storage: 10 to 90% RH |
| Cooling | 160W With Convection Cooling 210W With fan cooling |
| Mechanical | |
| Dimension | L 127 x W 76 x H 38 (mm) 5" x 3" x 1.5" (inch) |
| Weight | 310g (Ref.) |
Overview
ATM210T‑F Open Frame Switching Power Supply Overview
The ATM210T‑F is a reliable open frame switching power supply designed for industrial, medical, and embedded systems. Its compact open-frame design allows for efficient heat dissipation and easy integration into various equipment, making it ideal for space-limited or customized applications.
Choosing the ATM210T‑F ensures your system gets stable, protected, and high-performing power in a flexible open-frame design.
Stable Power and Low Noise
This power supply delivers consistent, regulated output with minimal ripple and noise, ensuring sensitive devices operate smoothly. The stable performance makes it suitable for medical equipment, control systems, and automation devices.
Global Compatibility and Protection
With universal input support, the ATM210T‑F works across different voltage regions. It also includes multiple protections against short circuit, overvoltage, overcurrent, and overheating, enhancing system safety and reliability.
Safety and Reliability
Built to meet strict safety standards, this open frame switching power supply is suitable for critical environments where reliability is essential. Its high-quality components and robust design ensure long-term durability and steady performance in demanding applications.
Applications
- Medical equipment power integration
- Industrial automation and control systems
- Embedded and communication devices
- Other equipment requiring compact, reliable power modules
Product Inquiry
| Image | Product Name |
|---|---|
|

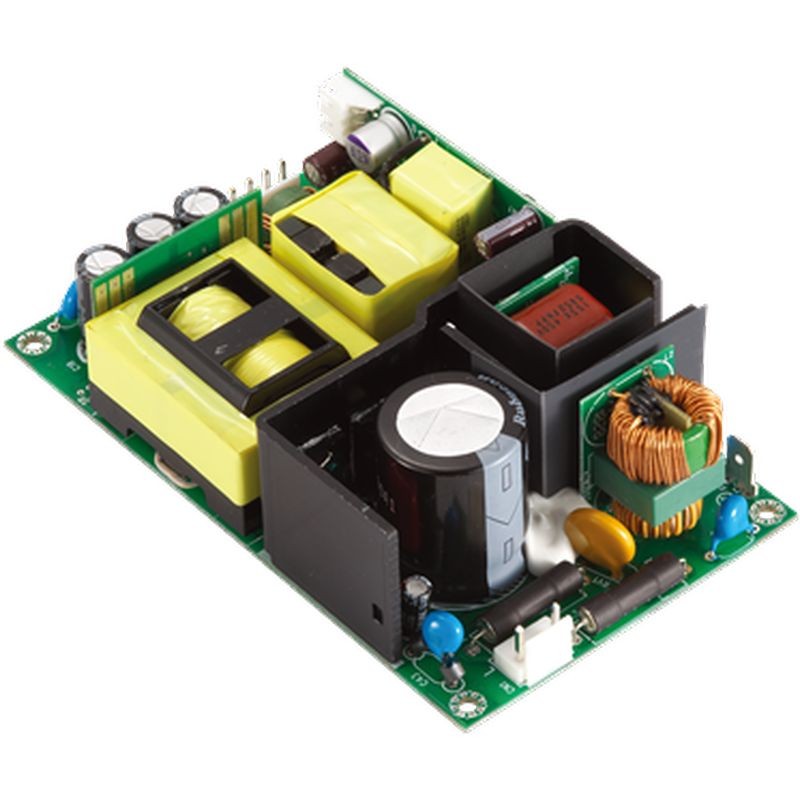

210W 3"x 5" Series (Medical&I.T.E.) ATM210T-F |
