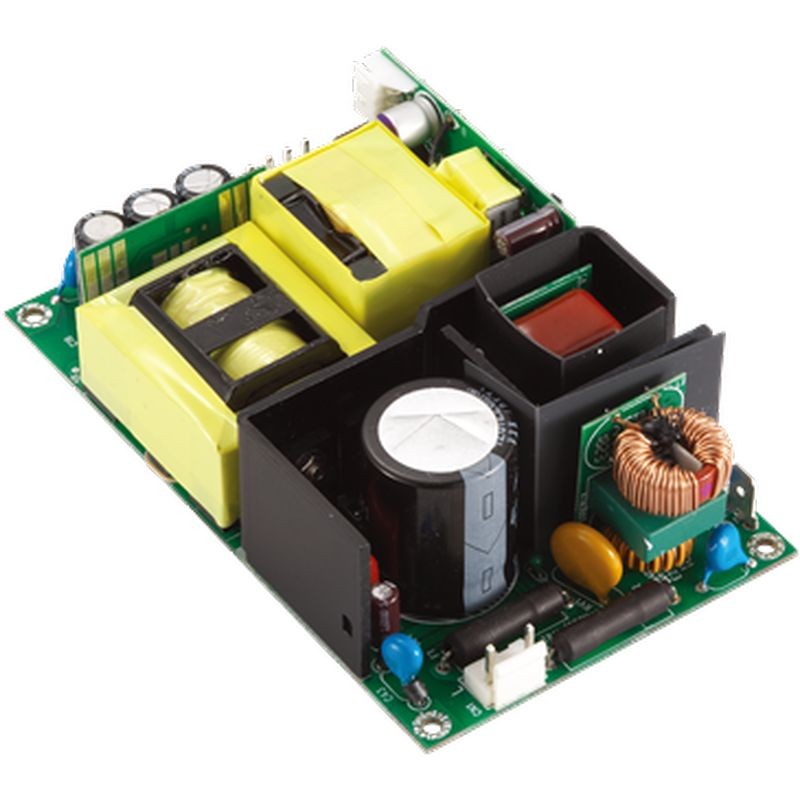

ATM305T-Fxxx
XXX = O/P Voltage
Features:
* IEC/ANSI/AAMI ES60601-1 (Edition 3.2)
* EMC : IEC60601-1-2 (Edition 4.1)
* Means of Protection : 2 X MOPP
* IEC/UL 62368-1
* 100-240VAC Universal Input
* 305W With Fan
* Standby 5V / 1A
* On & Off Remote Control
* Regulated Output With Low Ripple Noise
* Modified and Custom Design Available
* 2 Years Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt | ||
|---|---|---|---|---|---|
| Convection | With Fan | Convection | With Fan | ||
| ATM30ST-F120 | 12.0V | 16.0A | 25.0A | 197W | 305W |
| 5.0V | 1.0A | ||||
| ATM30ST-F240 | 24.0V | 10.4A | 12.5A | 255W | 305W |
| 5.0V | 1.0A | ||||
| ATM30ST-F480 | 48.0V | 5.2A | 6.25A | 255W | 305W |
| 5.0V | 1.0A | ||||
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240VAC |
| Line Frequency | 50-60Hz |
| Current | 3.6A - 1.6A |
| Protection | Internal Primary Current Fuse |
| Output | |
| Load Regulation | ± 5% (Typical) |
| Ripple & Noise | ≤1% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS for 50% Load Change Typical |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection/ Over Temperature Protection |
| Safety Approvals | |
| Approvals | CB / UL / cUL / FCC / CE |
| Electrical | |
| Topology | LLC |
| Dielectric Withstand | 4,000VAC Primary - Secondary |
| Touch Current (Patient) Leakage Current | <100µA |
| Earth Leakage Current | <5mA |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +50°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH Storage: 10 to 90% RH |
| Cooling | ATM30ST-F120: 197W With Convection Cooling ATM30ST-F240: 255W With Convection Cooling ATM30ST-F480: 255W With Convection Cooling 305W with Forced Cooling |
| Mechanical | |
| Dimension | L 127 x W 76 x H 38 (mm) 5" x 3" x 1.5" (inch) |
| Weight | 350g (Ref.) |
Overview
ATM305T‑F Frame Power Supply — Trusted Choice for Medical & Industrial Systems
The ATM305T‑F is a high‑performance frame power unit designed to deliver reliable power in demanding environments like medical equipment and industrial electronics. Its open design allows for efficient cooling and easy installation into system chassis where compact, robust power is needed.
Reliable Performance with Universal Input
This power supply accepts a wide AC input range and gives consistent, regulated outputs with low ripple and noise. That makes it suitable for systems where stable power matters, such as control electronics, embedded devices, and monitoring equipment.
Safety and Compliance You Can Count On
The ATM305T‑F meets international safety standards suited for both I.T.E. and medical applications. It includes dual means of patient protection (2×MOPP) and complies with medical safety norms, helping ensure your products follow strict electrical safety requirements.
Built‑In Protections for Long‑Term Use
This frame power supply includes multiple protection features like short circuit, overvoltage, overcurrent, and overtemperature protection. These safeguards help protect your system and the supply itself from unexpected power issues.
Flexible Features for System Integration
To support modern system designs, the ATM305T‑F offers remote control options and standby output capability. These features make it easier to integrate into complex power architectures and support system diagnostics or power sequencing functions.
Where It Fits Best
This frame power unit is ideal for:
- Medical devices
- Industrial automation systems
- Embedded control platforms
- Communication and networked equipment
By combining strict safety compliance, reliable output, and practical integration features, the ATM305T‑F gives engineers confidence when building systems that depend on dependable frame power.
