AC/DC Open Frame
Information
ATM300A5-FXXX
XXX = O/P Voltage
Features:
* IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.2)
* EMC : IEC60601-1-2 (Edition 4.1)
* Means of Protection : 2 X MOPP
* IEC/EN/UL 62368-1
* Suitable for OVC II & III
* Suitable for Class I or II
* 100-240VAC Universal Input
* 200W with Convection Cooling, 300W with Fan
* 12V / 0.5A Fan Power (optional)
* Remote Control / Remote Sense / Power Good / Voltage Trimming (optional)
* 12V+5V Auxiliary Power (optional)
* 450W Peak Power (3sec)
* Regulated Output With Low Ripple Noise
* Modified and Custom Design Available
* 2 Years Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt | ||
|---|---|---|---|---|---|
| Convection | With Fan | Convection | With Fan | ||
| ATM300A5-F120□ | 12.0V | 16.7A | 25.0A | 200.4W | 300.0W |
| ATM300A5-F150□ | 15.0V | 13.4A | 20.0A | 201.0W | 300.0W |
| ATM300A5-F190□ | 19.0V | 10.6A | 15.8A | 201.4W | 300.2W |
| ATM300A5-F240□ | 24.0V | 8.4A | 12.5A | 201.6W | 300.0W |
| ATM300A5-F290□ | 29.0V | 6.9A | 10.4A | 200.1W | 301.6W |
| ATM300A5-F360□ | 36.0V | 5.6A | 8.4A | 201.6W | 302.4W |
| ATM300A5-F480□ | 48.0V | 4.2A | 6.3A | 201.6W | 302.4W |
| ATM300A5-F540□ | 54.0V | 3.73A | 5.6A | 201.4W | 302.4W |
| ATM300A5-F560□ | 56.0V | 3.6A | 5.4A | 201.6W | 302.4W |
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240VAC |
| Line Frequency | 50-60Hz |
| Current | 3.5 - 1.5A |
| Protection | Internal Primary Current Fuse |
| Output | |
| Load Regulation | ± 3% (Typical) |
| Ripple & Noise | ≤1% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS for 50% Load Change Typical |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection/ Over Temperature Protection |
| Safety Approvals | |
| Approvals | CB / UL / cUL / FCC / CE / T-mark |
| Electrical | |
| Topology | LLC |
| Dielectric Withstand | 4,000VAC Primary - Secondary |
| Touch Current (Patient) Leakage Current | <100µA |
| Earth Leakage Current | <5mA |
| Efficiency | Up to 95% |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -40 to +85°C |
| Storage Temperature | -40 to +85°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH Storage: 10 to 90% RH |
| Cooling | 200W with Convection Cooling 300W with Fan Cooling |
| Mechanical | |
| Dimension | 2" x 4" x 1.5" (inch) |
| Weight | Open Frame Type: 240g (Ref.) |
Overview

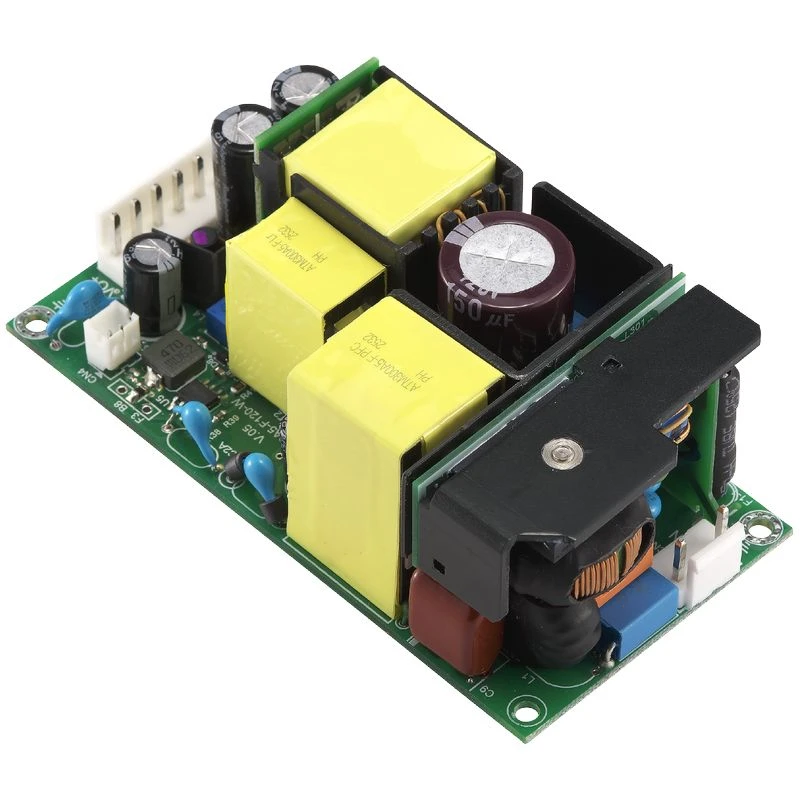

ATM300A5‑F AC DC Open Frame Power Supply — Reliable Power for Critical Systems
The ATM300A5‑F is a robust AC/DC open frame power supply designed for medical, industrial, and professional electronics applications. Its open frame design allows efficient heat dissipation and easy integration into equipment where space is limited or custom mounting is needed.
Stable Power and Compatible Worldwide
This power supply supports universal AC input from 100 to 240 VAC, making it suitable for use in most global markets. It delivers consistent, regulated output with low ripple and noise, helping sensitive devices and control boards function reliably without unexpected voltage fluctuations.
Built‑In Protection and Safety
ATM300A5‑F includes multiple protection features to guard against short circuits, over‑current and over‑temperature conditions, increasing system safety and minimizing downtime. The design meets recognized safety standards for I.T.E. and medical power, including IEC/EN/ANSI/AAMI ES60601‑1 and IEC/EN/UL 62368‑1 compliance.
Flexible Control and Options
To support modern system requirements, this AC/DC open frame unit offers optional features such as remote control, remote sense, power‑good signal, and voltage trimming. You can also choose auxiliary outputs like a fan power line or standby power, making it easier to match your project needs.
Ideal Use Cases
This power supply is great for:
- Medical device power integration
- Embedded industrial equipment
- Control systems and automation platforms
- Communication and networking hardware
By combining reliable operation, flexible features, and compliance with industry safety standards, the ATM300A5‑F provides a strong foundation for systems that require dependable AC to DC open frame power.
Product Inquiry
| Image | Product Name |
|---|---|
|
300W 2"x 4" Series (Medical&I.T.E.) ATM300A5-F |
