300W Series (Medical&I.T.E.)
Information
ATM300TS-□XXX
XXX = O/P Voltage

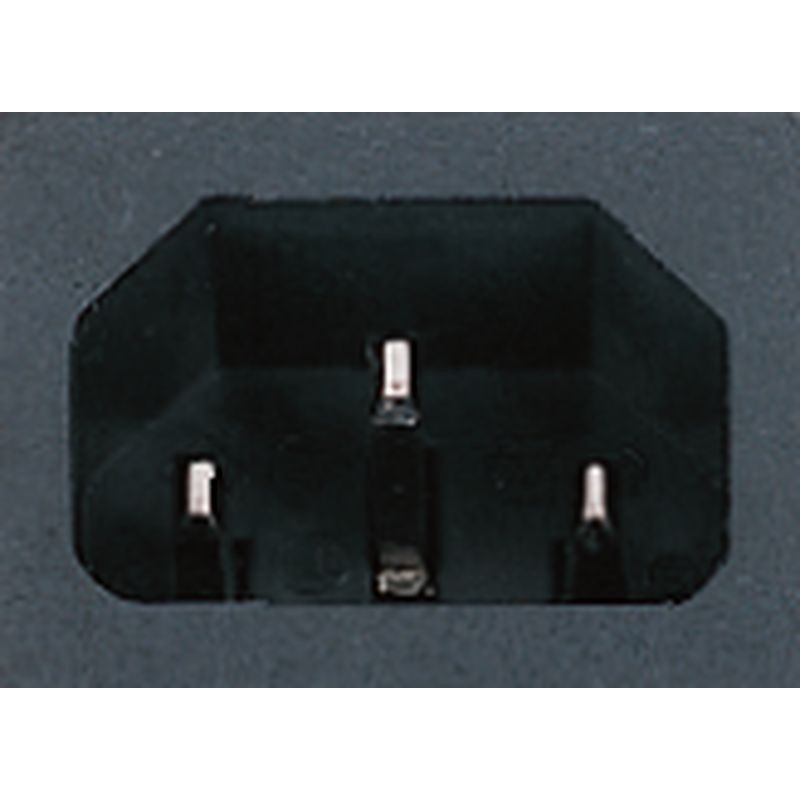

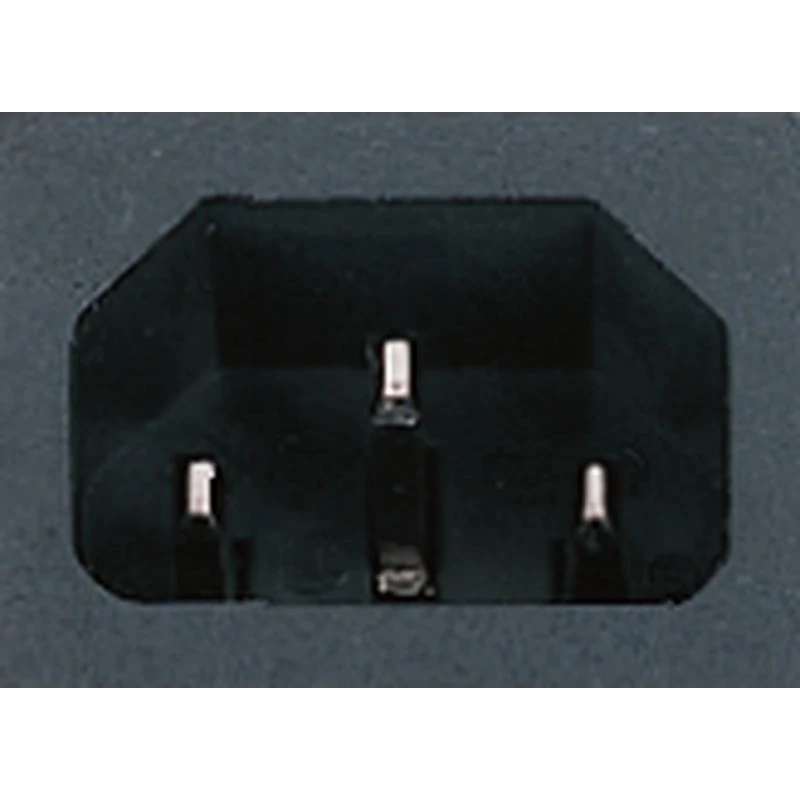

□ = P : C14
□ = A : C18
Features:
* IEC/EN/ANSI/AAMI ES60601-1 (Edition 3.2)
* IEC/EN/ANSI/AAMI HA60601-1-11 (Class II Only)
* EMC : IEC60601-1-2 (Edition 4.1)
* IEC/EN/UL 62368-1 3rd Edition
* 100-240 VAC Universal Input
* Gallium Nitride Based Design
* High Power Density : 9W / in3
* With 200kHz Switching Frequency
* Means of Protection: 2 X MOPP
* Efficiency up to 95%
* Regulated Output with Low Ripple Noise
* Modified and Custom Design Available
* 2 Years Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt |
|---|---|---|---|
| ATM300TS-□120 | 12.0V | 24.00A | 288W |
| ATM300TS-□150 | 15.0V | 20.00A | 300W |
| ATM300TS-□190 | 19.0V | 15.79A | 300W |
| ATM300TS-□240 | 24.0V | 12.50A | 300W |
| ATM300TS-□480 | 48.0V | 6.25A | 300W |
| ATM300TS-□560(*) | 56.0V | 5.36A | 300W |
(*) I.T.E. Only
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240 VAC |
| Line Frequency | 50-60Hz |
| Current | 3.5A-1.5A |
| Protection | Internal Primary Current Fuse |
| Configuration | IEC60320 / C14, C18 |
| Output | |
| Load Regulation | ± 5% (Typical) |
| Ripple & Noise | ≤ 1% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS with 50% Load Change |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥ 10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection/ Over Temperature Protection |
| Safety Approvals | |
| CB / UL / cUL / FCC / GS / TUV / CE / PSE / BSMI | |
| Electrical | |
| Topology | LLC |
| Dielectric Withstand | 4,000VAC Primary - Secondary |
| Touch Current (Patient) / Leakage Current | < 100µA |
| Earth Leakage Current | < 5mA |
| Efficiency | DoE Level VI |
| EMC Standards | EN55032 / EN55011 EN61000-3-2,3 EN55035 / EN61000-4-2,3,4,5,6,8,11 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 5,000M |
| Relative Humidity | Operating: 20 to 80% RH Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical | |
| Case Dimension | L183 x W85 x H35 (mm) |
| Weight | 1,060g (Ref.) |
Product Inquiry
| Image | Product Name |
|---|---|
|

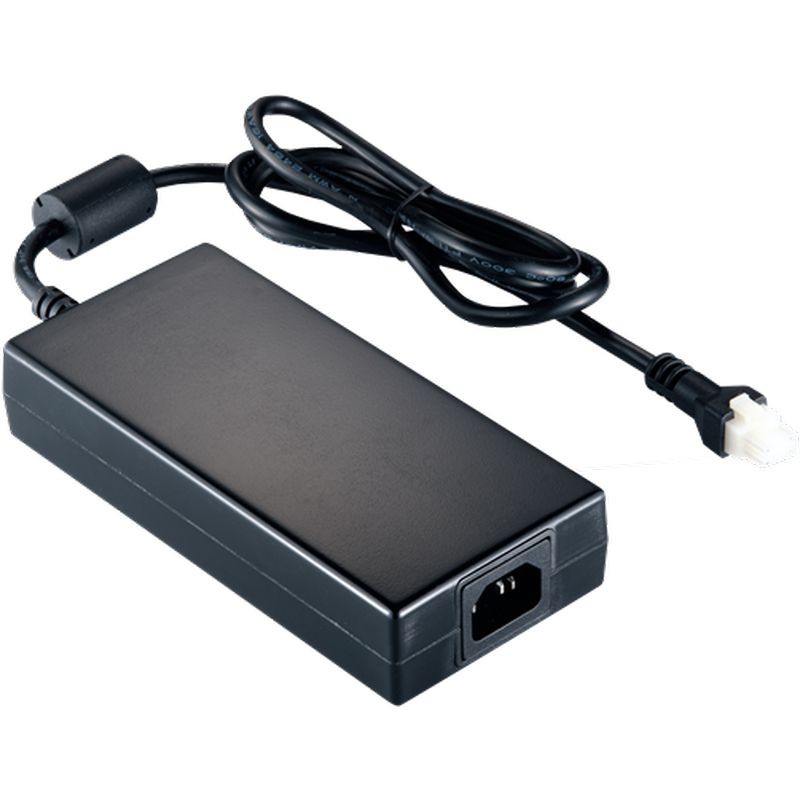

300W Series (Medical&I.T.E.) ATM300TS-P/A |
