36W Series
Information
ATS036T-□XXX
XXX = O/P Voltage

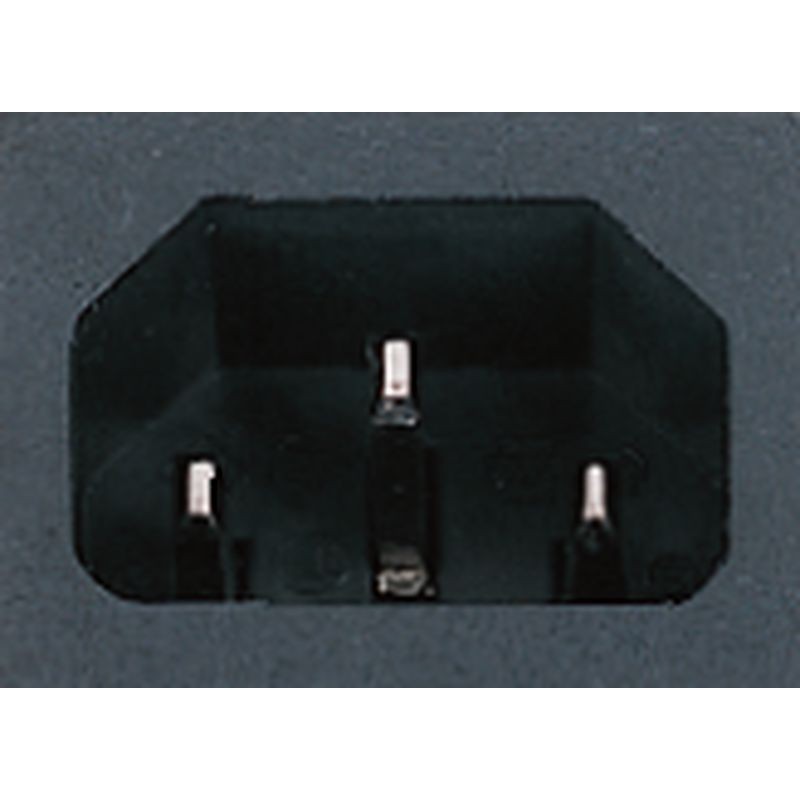

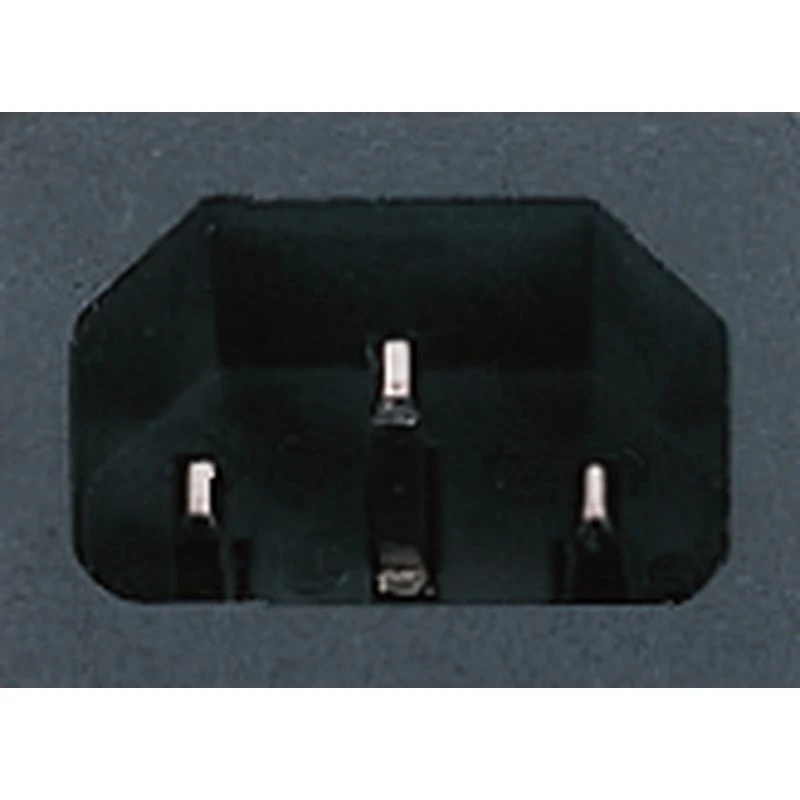

□ = P : C14

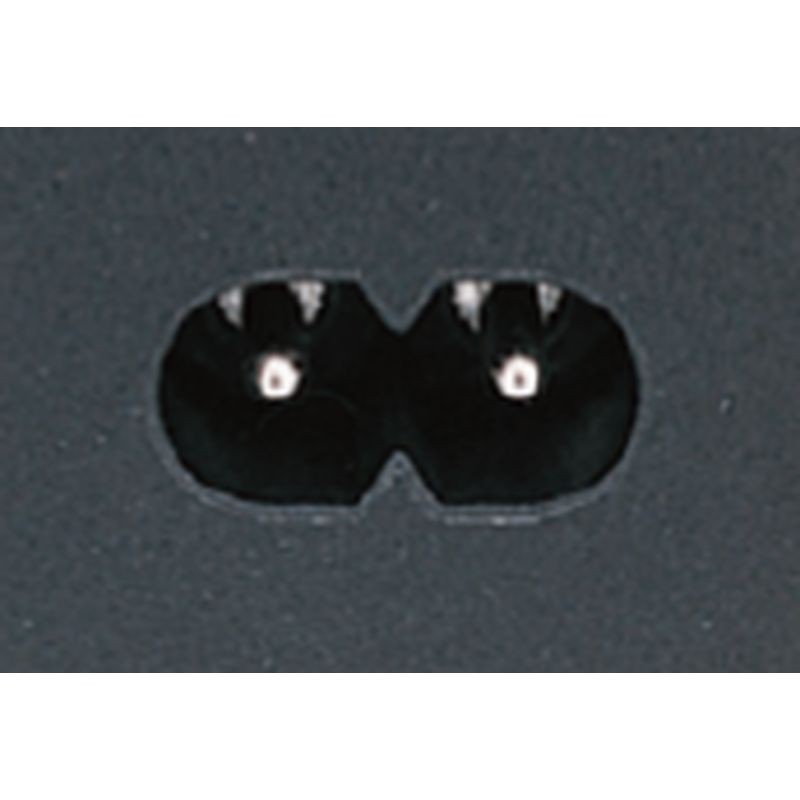

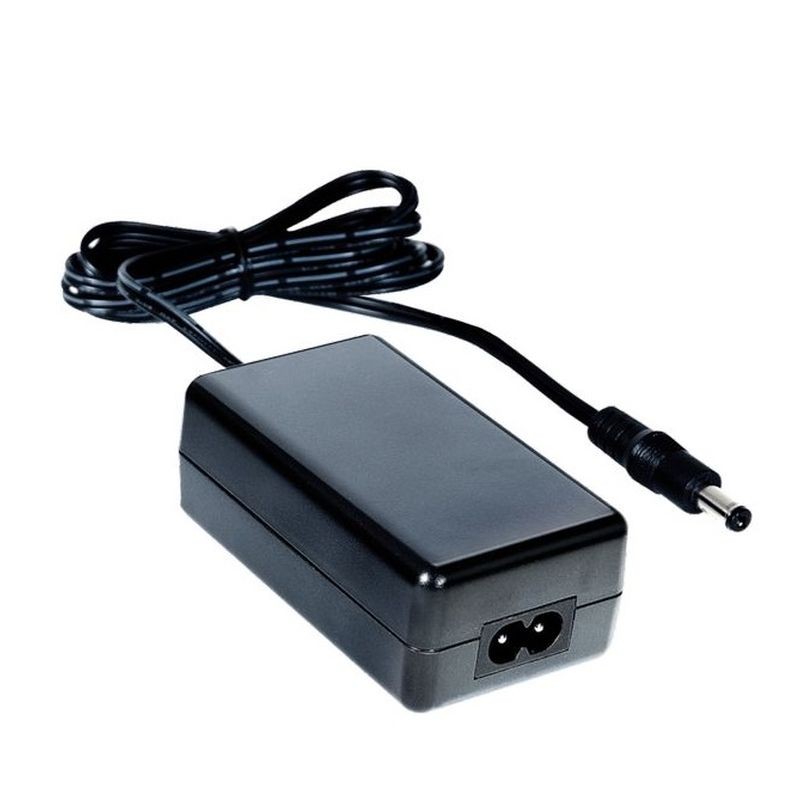

□ = A : C8
Features:
* IEC/EN/UL 62368-1 3rd Edition
* 100-240VAC Universal Input
* Regulated Output with Low Ripple Noise
* Safety Agency Requirements and EMI/EMS Certified
* Modified and Custom Design Available
* 1 Year Warranty
Output Specifications
| Model | O/P Voltage | O/P Current | Watt |
|---|---|---|---|
| ATS036T-□050 | 5.0V | 5.00A | 25W |
| ATS036T-□075 | 7.5V | 4.00A | 30W |
| ATS036T-□085 | 8.5V | 3.52A | 30W |
| ATS036T-□090 | 9.0V | 3.34A | 30W |
| ATS036T-□120 | 12.0V | 3.00A | 36W |
| ATS036T-□121 | 12.0V | 2.50A | 30W |
| ATS036T-□135 | 13.5V | 2.66A | 36W |
| ATS036T-□150 | 15.0V | 2.40A | 36W |
| ATS036T-□160 | 16.0V | 2.25A | 36W |
| ATS036T-□180 | 18.0V | 2.00A | 36W |
| ATS036T-□240 | 24.0V | 1.50A | 36W |
| ATS036T-□480 | 48.0V | 0.75A | 36W |
Specifications Details
| Input | |
|---|---|
| Voltage | 100-240 VAC |
| Line Frequency | 50-60Hz |
| Current | 1A Max. |
| Protection | Internal Primary Current Fuse |
| Configuration | IEC60320/ C8, C14 |
| Output | |
| Load Regulation | ± 5%(Typical) |
| Ripple & Noise | ≤ 2% Vp-p @ Full Load |
| Transient (Dynamic) Response | 0.5mS with 50% Load Change |
| Start-up Time | < 3,000mS |
| Hold-up Time | ≥ 10mS @ Full Load |
| Rise Time | < 50mS |
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection |
| Safety Approvals | |
| Standards | CB / UL / cUL / FCC / GS / CE / PSE / BSMI / CCC / RCM / LPS |
| Electrical | |
| Topology | Switching Flyback |
| Dielectric Withstand | 3,000VAC Primary - Secondary |
| Leakage Current | < 0.25mA @ 2Pin / < 5mA @ 3Pin |
| Efficiency | DoE Level VI, ErP Stage2, CoC Tier 2 |
| EMC Standards | EN55032, EN61000-3-2,3, EN55035 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Environmental | |
| Operating Temperature | -20 to +40°C |
| Storage Temperature | -20 to +80°C |
| Operating Altitude | 2,000M |
| Relative Humidity | Operating: 20 to 80% RH, Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical | |
| Case Dimension | C14: L100 x W50 x H33 (mm), C8 : L99 x W50 x H33 (mm) |
| Weight | 210g (Ref.) |
